Simpson Strong-Tie ZMAX Galvanized Adjustable Standoff Post Base for 8x8 (ABU88Z)
Simpson Strong-Tie ZMAX Galvanized Adjustable Standoff Post Base for 8x8 (ABU88Z)
Key Features
Overview

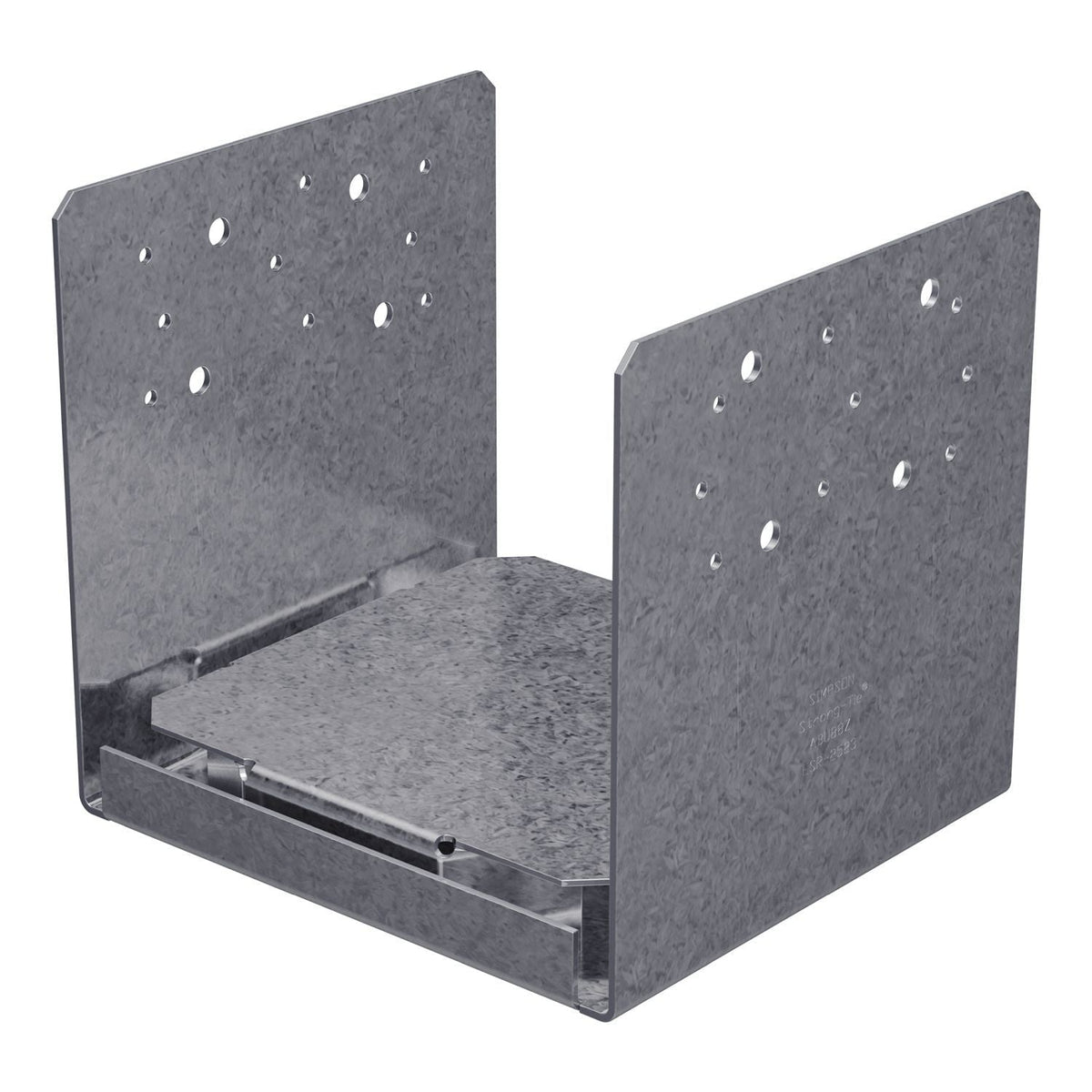

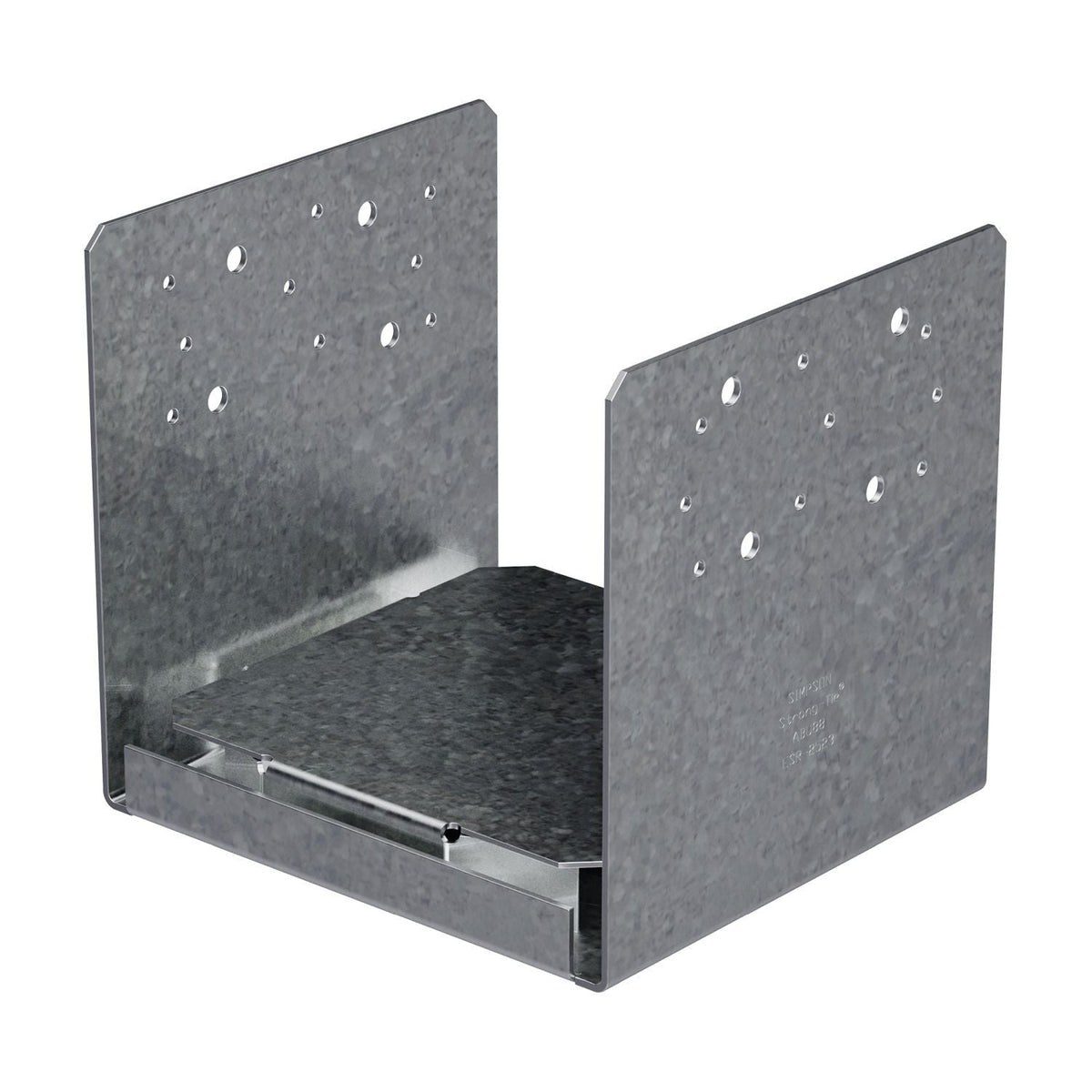

The Simpson Strong-Tie ABU88Z adjustable post base is a retrofit post base for connecting a nominal 8x8 wood post to existing concrete. This is a post base designed for attaching wood posts to existing concrete footings in top-supported structures. Model Number: ABU88Z. If you are building a deck, patio cover, or similar structure and need a clean way to anchor a large post while keeping it off the slab, this is the right kind of hardware.
What makes the ABU88Z matter is adjustability where it actually helps. The slotted anchor hole in the base gives you room to work around the anchor bolt during layout and installation. On paper that sounds small. On the job, it means less fighting misalignment when you're setting a full-size 8x8 post over existing concrete. That can save real time when anchor placement is close but not perfect.
The built-in 1 inch stand-off is another feature that does actual work instead of just sounding good in a catalog. By holding the post up off the concrete, the base helps reduce direct moisture exposure at the end grain. Simpson Strong-Tie also notes that this stand-off design meets code requirements for structural posts installed in basements or locations exposed to weather or water splash. For exterior post framing, that gap matters.
For capacity, the ABU88Z is intended for high-load applications. Simpson Strong-Tie lists increased uplift loads for earthquake or wind loading, and the load table shows allowable uplift of 4,120 lb with an allowable download of 22,405 lb for the ABU88Z configuration. That makes it a serious connector for larger structural posts where load path and hold-down performance are part of the conversation, not an afterthought.
Construction is ZMAX coated steel, which is aimed at exterior use and treated-wood applications where better corrosion resistance is needed than standard galvanized finishes. The ABU88Z uses a base gauge of 14 and strap gauge of 12, sized specifically for a nominal 8x8 post. Published dimensions for this model are 7-1/2 inches wide, 7 inches long, and 7 inches high. Packaging quantity is one base.
Installation details are straightforward but important. Simpson Strong-Tie specifies that all required fasteners must be used. For the ABU88Z, the load table lists (18) 0.162 x 3-1/2 inch nails for fastening the post, and the installation notes also state that Strong-Drive SD Connector screws or bolts may be used as optional fastening methods on the ABU88Z. At the concrete side, the load table shows (2) 5/8 inch anchor diameters. Simpson Strong-Tie also notes that base anchors must extend less than 1 inch from the concrete to avoid interference with the stand-off.
This adjustable post base is made for post-to-footing work on decks and similar top-supported structures. It is not recommended for installations where the post is not top supported, such as fences or unbraced carports, because post bases do not provide enough resistance to keep members from rotating about the base. That limitation is worth knowing up front, especially if you are choosing hardware for freestanding or laterally unsupported posts.
Who should buy it? Contractors and serious DIY builders working with large 8x8 posts on decks, patio covers, and structural exterior framing. If you need a wood-to-concrete retrofit base with stand-off protection, layout forgiveness around the anchor bolt, and real uplift capacity, the Simpson Strong-Tie ABU88Z adjustable post base is a practical choice.
At a Glance
Built for Retrofit Post-to-Concrete Work
The ABU88Z is meant for real retrofit conditions, where the concrete is already there and the post location still needs to land where the structure wants it. The slotted base helps with anchor bolt alignment, and the stand-off keeps the wood off the concrete.
- Designed for attaching wood posts to existing concrete in decks and patio covers
- Slotted base allows adjustment around the anchor bolt for easier post placement
- 1 inch stand-off helps protect the post end from moisture exposure
Key Specifications
| Nominal Post Size | 8x8 |
|---|---|
| Material | Steel |
| Finish | ZMAX galvanized |
| Base Gauge | 14 ga. |
| Strap Gauge | 12 ga. |
| Width | 7-1/2 in. |
| Length | 7 in. |
| Height | 7 in. |
| Stand-Off | 1 in. |
| Anchor Diameter | (2) 5/8 in. |
| Required Nails | (18) 0.162 x 3-1/2 in. |
| Allowable Uplift | 4,120 lb |
| Allowable Download | 22,405 lb |
| Package Quantity | 1 |
Compatibility
Built For
Pro Tip
Dry-fit your ABU88Z over the anchor hardware before you stand the post. Simpson Strong-Tie notes the base anchors must extend less than 1 inch from the concrete, or the stand-off can interfere and turn a simple install into a rework job.
Warranty & Support
Tool Nut's Take
Simpson Strong-Tie ABU88Z Adjustable Post Base for Big Posts Done Right
If you're anchoring an 8x8 to existing concrete and want adjustability without giving up serious load performance, this is the kind of connector you buy once and install right.
- Who it's for: Deck builders, remodelers, and serious DIYers working with nominal 8x8 posts on top-supported structures.
- Why it stands out: The slot around the anchor location makes layout more forgiving, and the 1 inch stand-off solves the moisture issue that beats up post ends over time.
- Worth knowing: This is not the connector for freestanding or unbraced posts, and fastener details matter if you want the listed capacity.
Common Questions
- What size post is the ABU88Z made for? It is sized for a nominal 8x8 wood post.
- Can this base be used on existing concrete? Yes. The ABU series is a retrofit post base designed to attach wood posts to existing concrete.
- Does the ABU88Z hold the post off the concrete? Yes. It has a built-in 1 inch stand-off to help reduce moisture exposure at the end of the post.
- Is this a good choice for fences or other unsupported posts? No. Simpson Strong-Tie states that post bases are not recommended for non-top-supported installations because they do not provide adequate resistance to rotation about the base.
