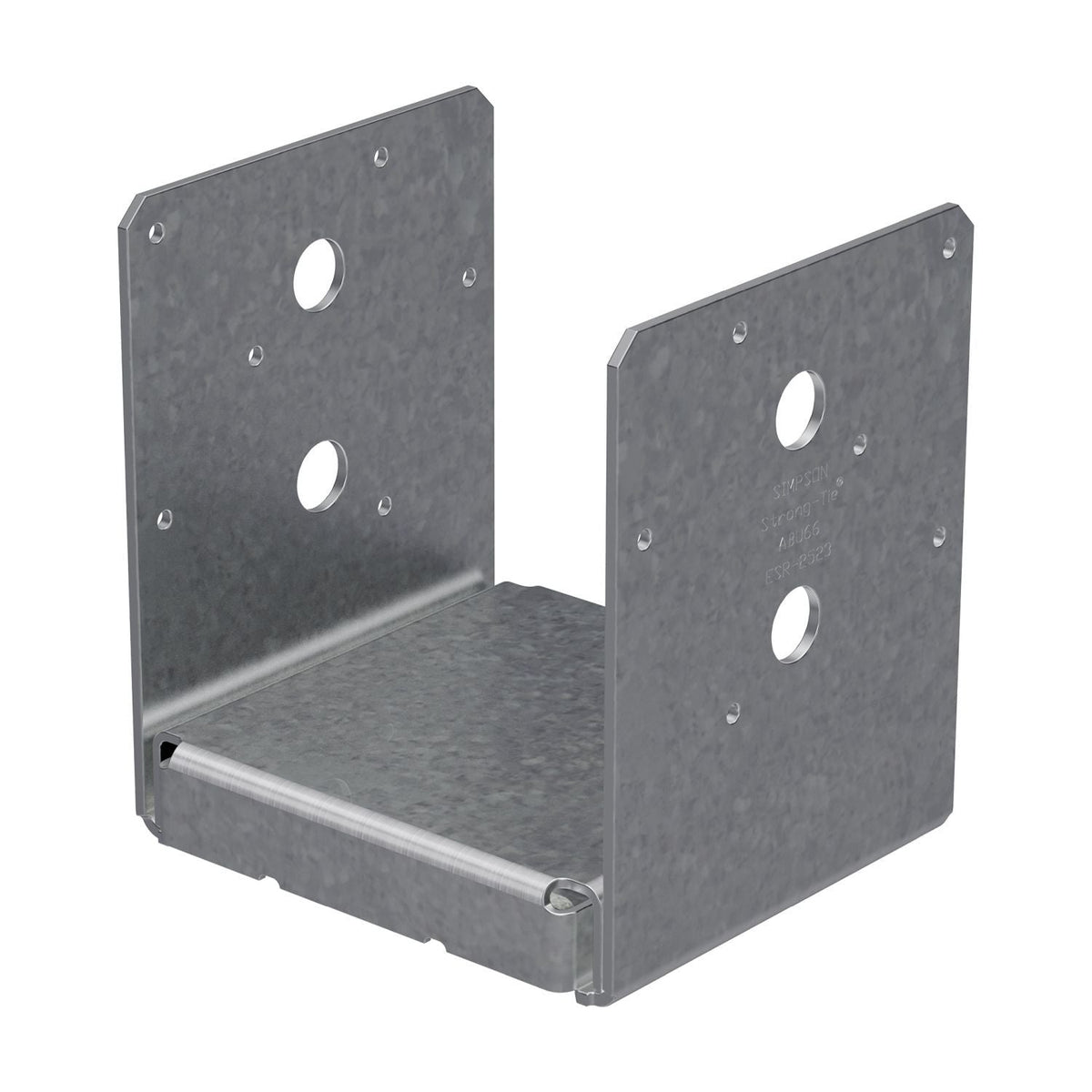

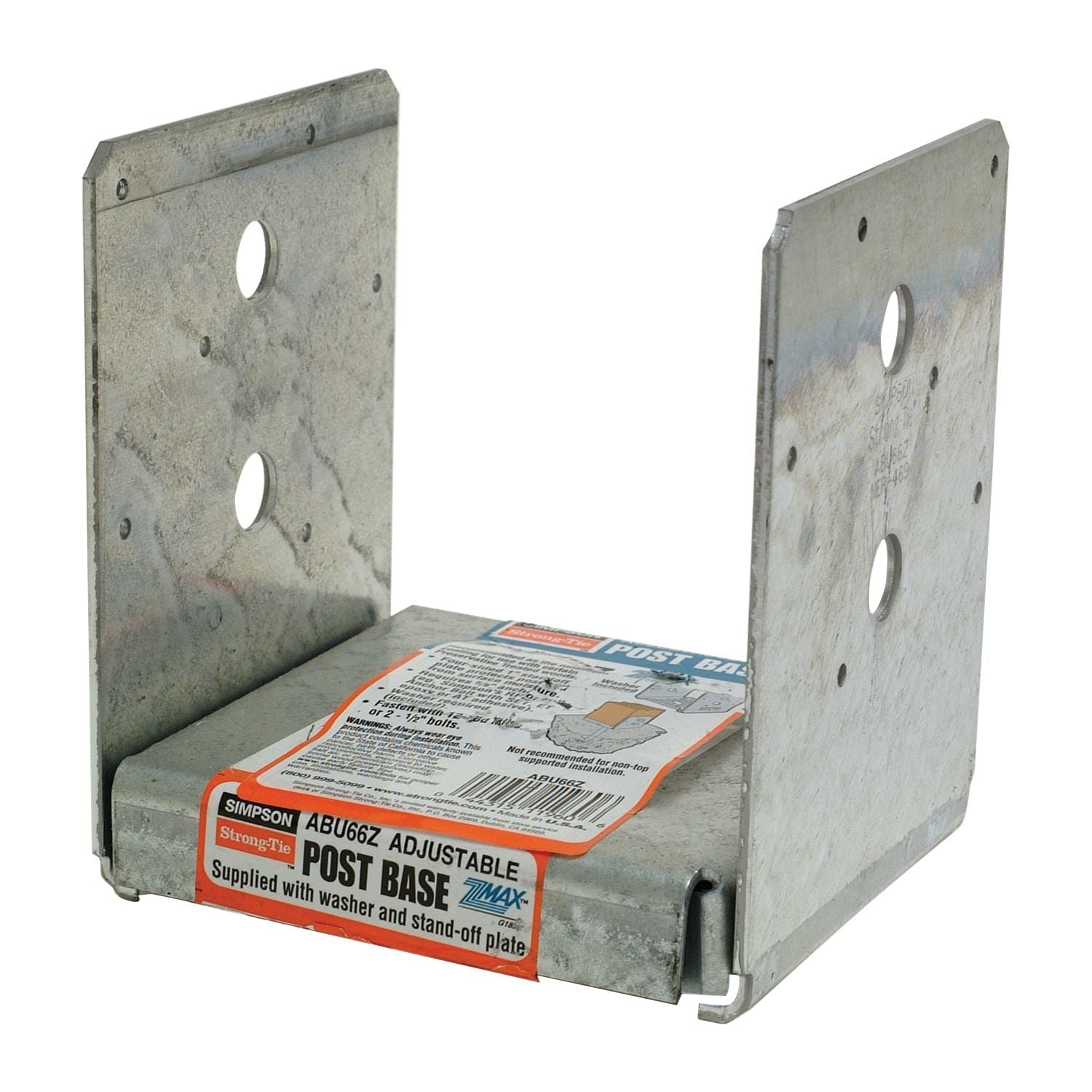

Simpson Strong-Tie ZMAX Galvanized Adjustable Standoff Post Base for 6x6 (ABU66Z)

The Simpson Strong-Tie ABU66Z adjustable post base is a retrofit post base for connecting a nominal 6x6 wood post to existing concrete. This is a post base designed for post-to-footing connections in decks, patio covers, and other top-supported structures. Model Number ABU66Z. The main advantage here is adjustability at the anchor combined with a built-in standoff that helps protect the post from moisture sitting on the concrete.

For the installer, the slotted anchor hole is the feature that earns its keep. On existing concrete, anchor location is not always perfect. The slot in the base gives you flexibility around the anchor bolt so you can make precise post placement adjustments before everything is tightened down. That can save time during layout and help avoid fighting a fixed base when the anchor is off just enough to be annoying.

This ABU series connector is built for higher-capacity applications, and Simpson specifically calls out increased uplift loads for earthquake or wind loading. On the ABU66Z, the load table lists allowable uplift at 2,475 lb, download at 2,190 lb, and lateral or down value shown in the table at 18,205 lb for Douglas Fir or Southern Pine conditions listed by the manufacturer. If you are building a structure where the post connection does real structural work, those numbers matter more than a generic light-duty base.

The physical build is straightforward and jobsite practical. The ABU66Z uses a 12-gauge base with 10-gauge straps, a 5-1/2 in. width, 5 in. length, and 6-1/16 in. overall height. It is sized for a standard 6x6 post, with a 1-3/4 in. standoff height shown as HB in Simpson's table. That standoff is there for a reason: it lifts the post off the concrete to help reduce post-end rot, which is especially important on exterior framing and treated lumber applications.

Corrosion resistance is another reason this model gets used outdoors. The ABU66Z comes with a ZMAX finish, which Simpson positions for exterior and treated-wood applications. If the base is going into a deck, porch, or patio cover where weather exposure is part of the deal, that coating matters. It is a structural connector, but it is also one of those parts that sits in a wet, dirty spot for years, so finish is not just a cosmetic detail.

Installation options are flexible. The manufacturer lists a 5/8 in. anchor diameter for the concrete connection, along with post fastening using (12) 0.162 x 3-1/2 in. nails and (2) 1/2 in. bolts for this 6x6 model. Simpson also notes that the post can be fastened using nails, Strong-Drive SD Connector screws, or bolts depending on the application and approved fastening schedule. Just as important, Simpson states that base anchors must extend less than 1 in. from the concrete so they do not interfere with the standoff.

This connector is best for builders working on decks, covered patios, porch roofs, and similar top-supported framing where a wood post needs to be tied back to existing hardened concrete. It is not the right choice for non-top-supported installations such as fences or unbraced carports because post bases like this are not intended to resist rotation by themselves. If you need a serious 6x6 post base for retrofit concrete and want the flexibility to dial in post location instead of living with a bad anchor layout, this is the right style of connector.

Simpson Strong-Tie ABU66Z Adjustable Post Base Gets the Important Stuff Right

If you are setting a 6x6 post on existing concrete and want adjustability without giving up real structural capacity, this is the kind of base worth paying for.

• Who it's for: Deck builders, remodelers, and contractors tying 6x6 posts into existing slabs or footings on top-supported structures.
• Why it stands out: The slot around the anchor makes layout easier, and the built-in standoff helps with moisture management instead of leaving the post sitting flat on concrete.
• Worth knowing: This is not a cure-all for unsupported posts. Like other post bases, it is not meant to stop rotation by itself on fence or unbraced carport applications.

• What size post does the ABU66Z fit? It is designed for a nominal 6 x 6 wood post.
• Is this post base for existing concrete or wet-set concrete? This model is intended to attach posts to existing concrete in retrofit applications.
• Does it help keep the post off the concrete? Yes. It has a built-in 1 in. standoff to help reduce moisture contact at the end of the post.
• Can it be used for fences or other unsupported posts? No. Simpson states that post bases like this are not recommended for non-top-supported installations because they do not provide adequate resistance to prevent rotation about the base.
