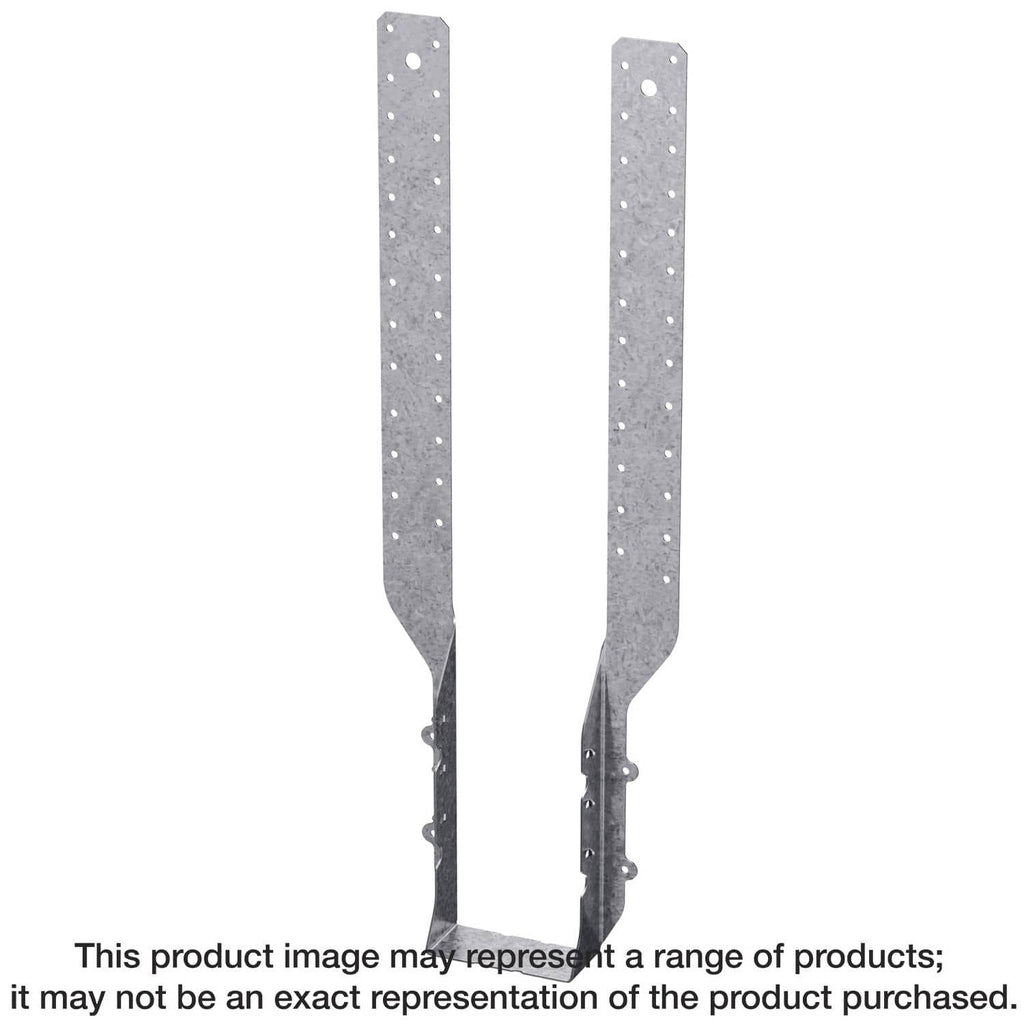

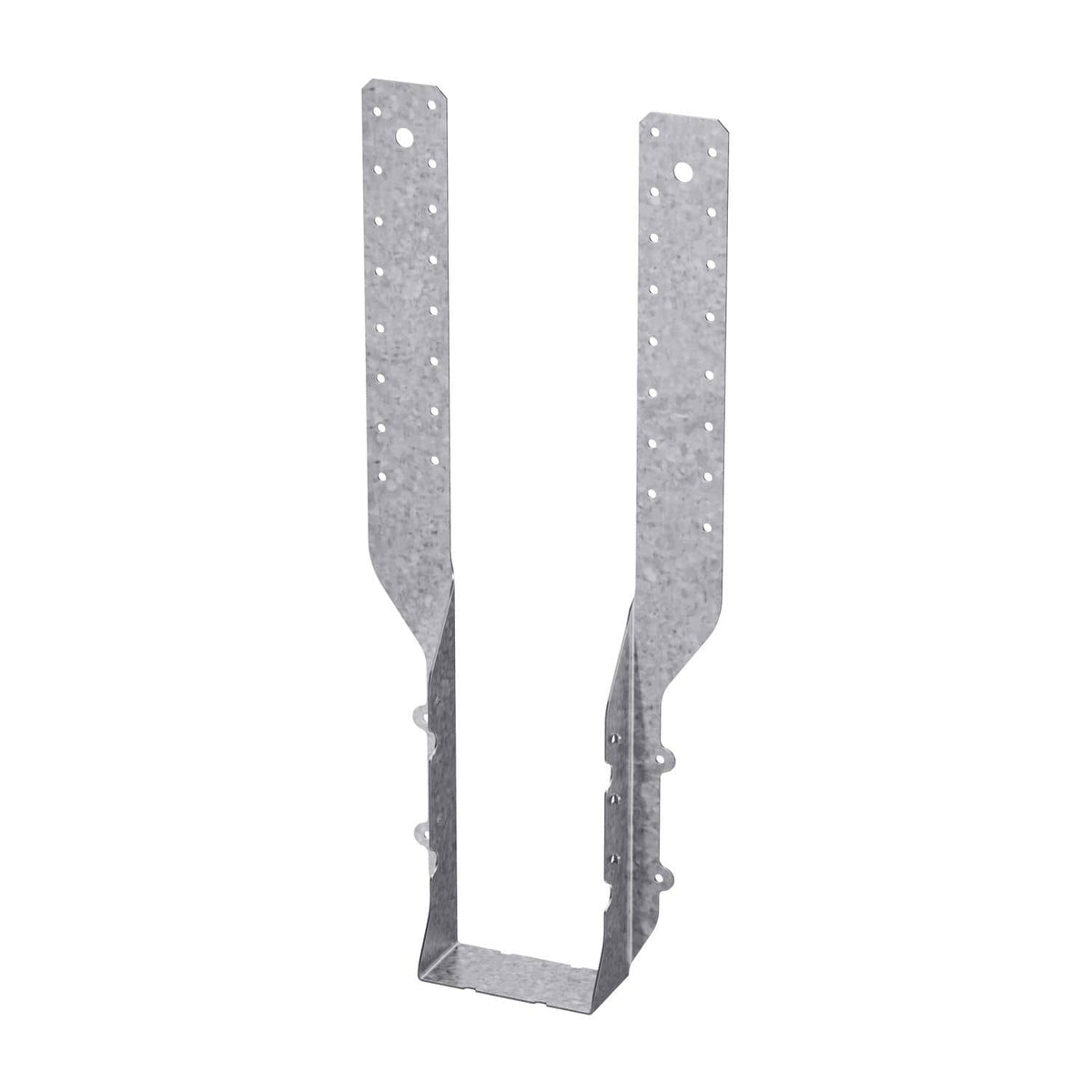

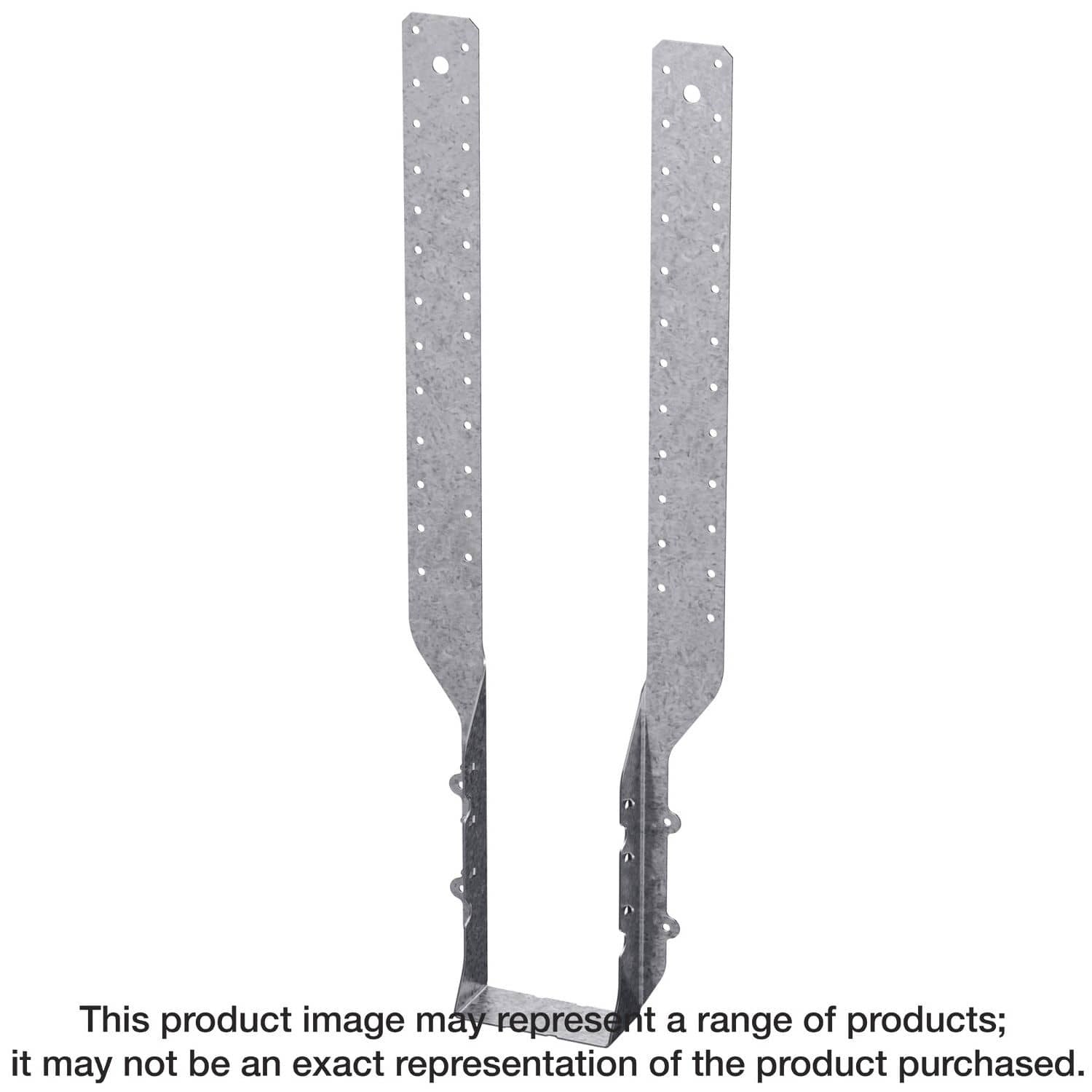

Simpson Strong-Tie THA418 THA 17-1/2-in. Galvanized Adjustable Hanger for 4x Floor Truss

• Can be installed as a top-flange or face-mount hanger
• Seat width: 3-5/8 in.
• Height: 17-1/2 in.
• Nominal joist size: 4x floor truss
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The THA series hangers have extra long straps that can be field-formed to give height adjustability and top-flange hanger convenience.

• Can be installed as a top-flange or face-mount hanger
• Seat width: 3-5/8 in.
• Height: 17-1/2 in.
• Nominal joist size: 4x floor truss
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: For top-flange installation, install with 16d and 10d common nails; for face-mount installation, install with 16d common nails
