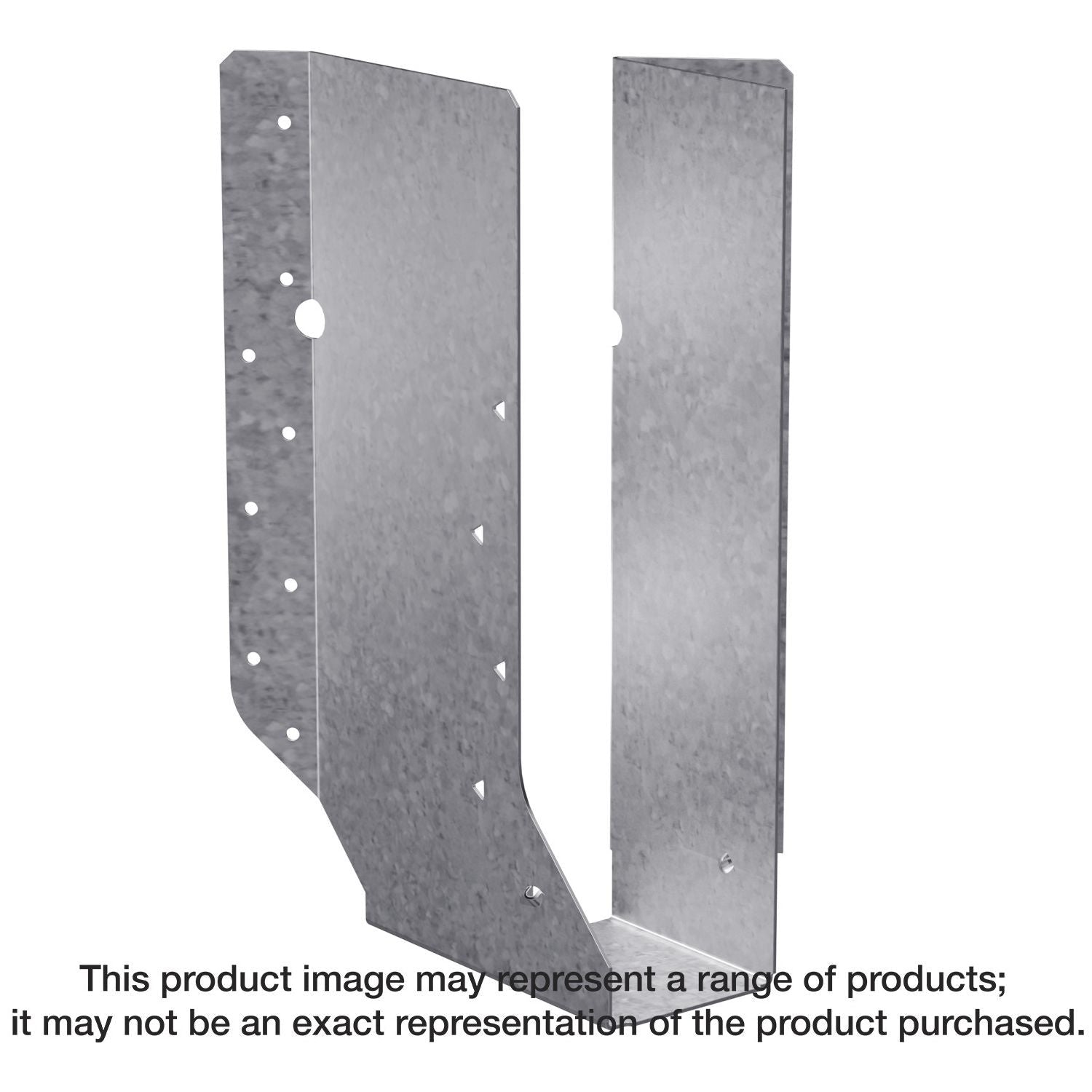

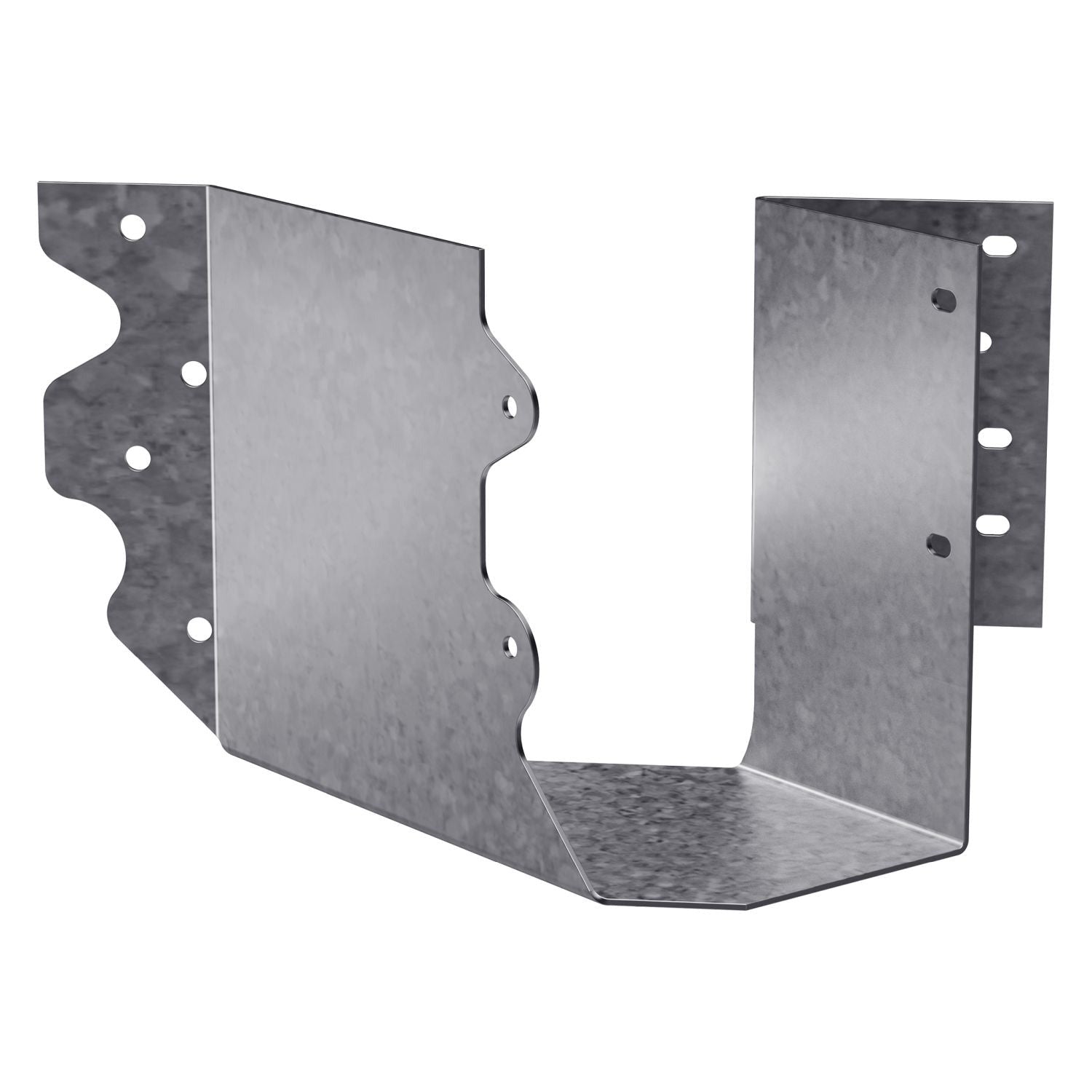

Simpson Strong-Tie SUR26-2 SUR Galvanized Joist Hanger for Double 2x6, Skewed Right

• SUR = skewed right
• These hangers will normally accommodate a 40° to 50° skew
• The joist end may be square cut or bevel cut
• Angled nail slots direct nails for proper installation
• Nominal joist size: Double 2x6 or 2x8
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. SUL/SUR hangers provide a 45° connection between a joist and header.

• SUR = skewed right
• These hangers will normally accommodate a 40° to 50° skew
• The joist end may be square cut or bevel cut
• Angled nail slots direct nails for proper installation
• Nominal joist size: Double 2x6 or 2x8
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: Install with 16d common nails and 16d x 2-1/2 in. nails
