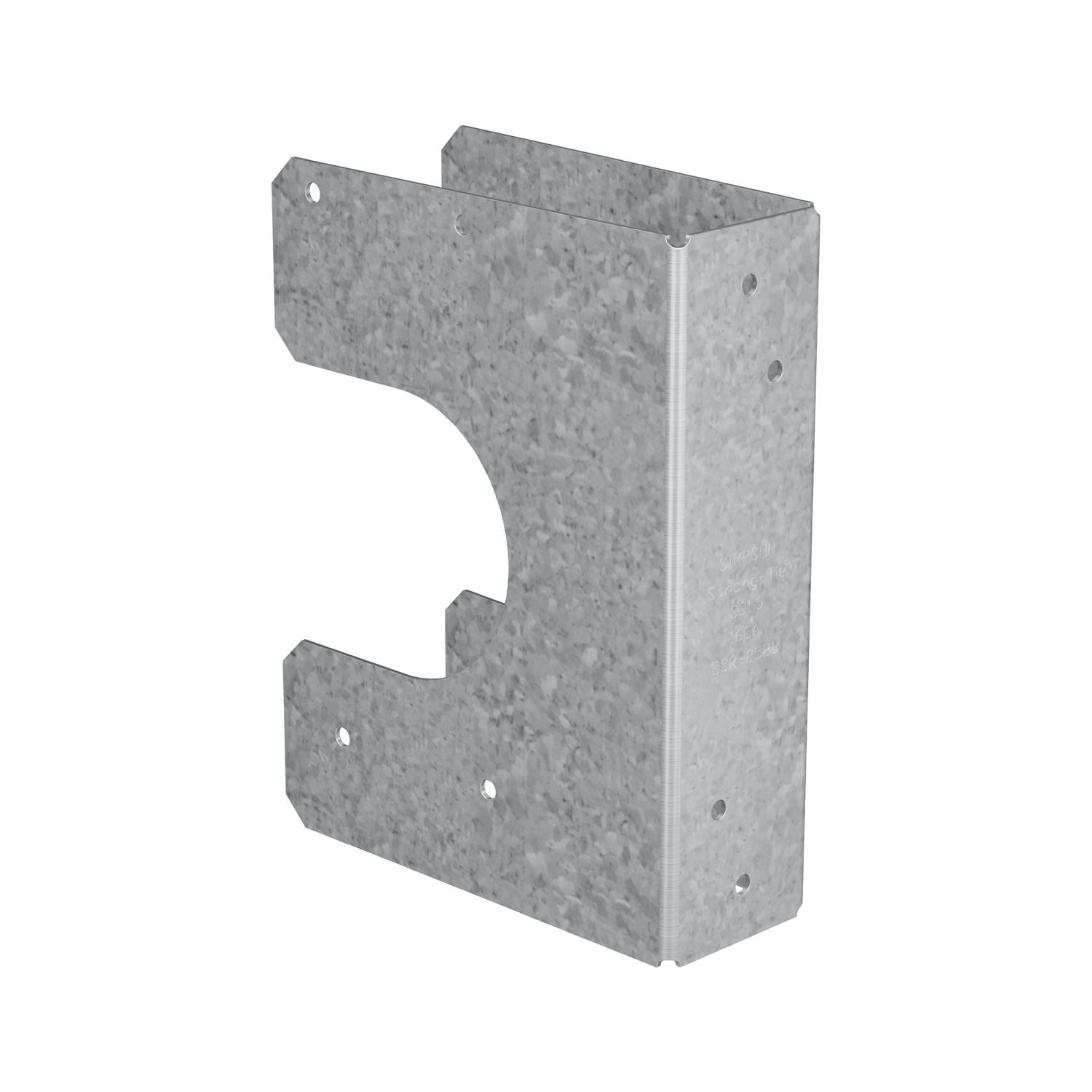

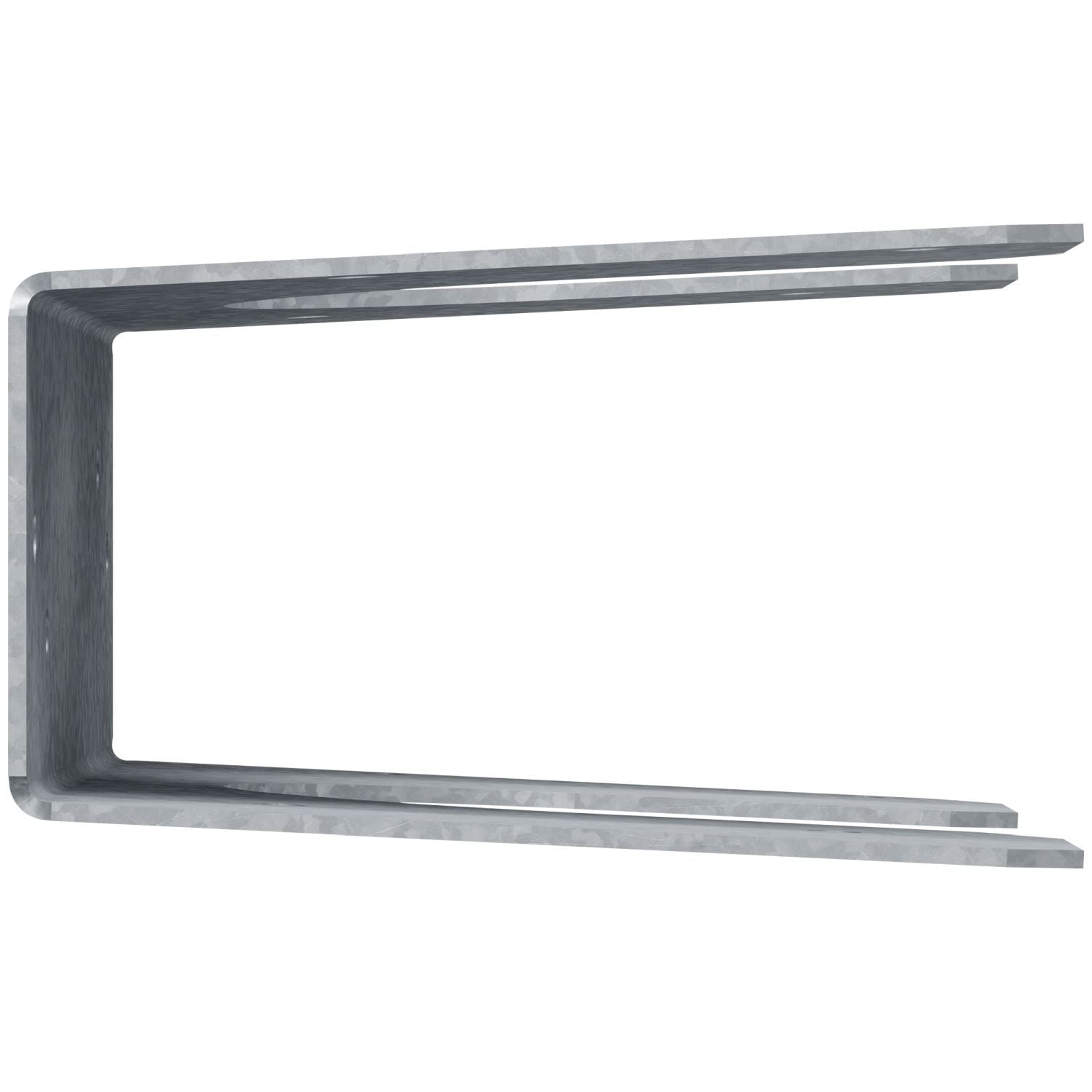

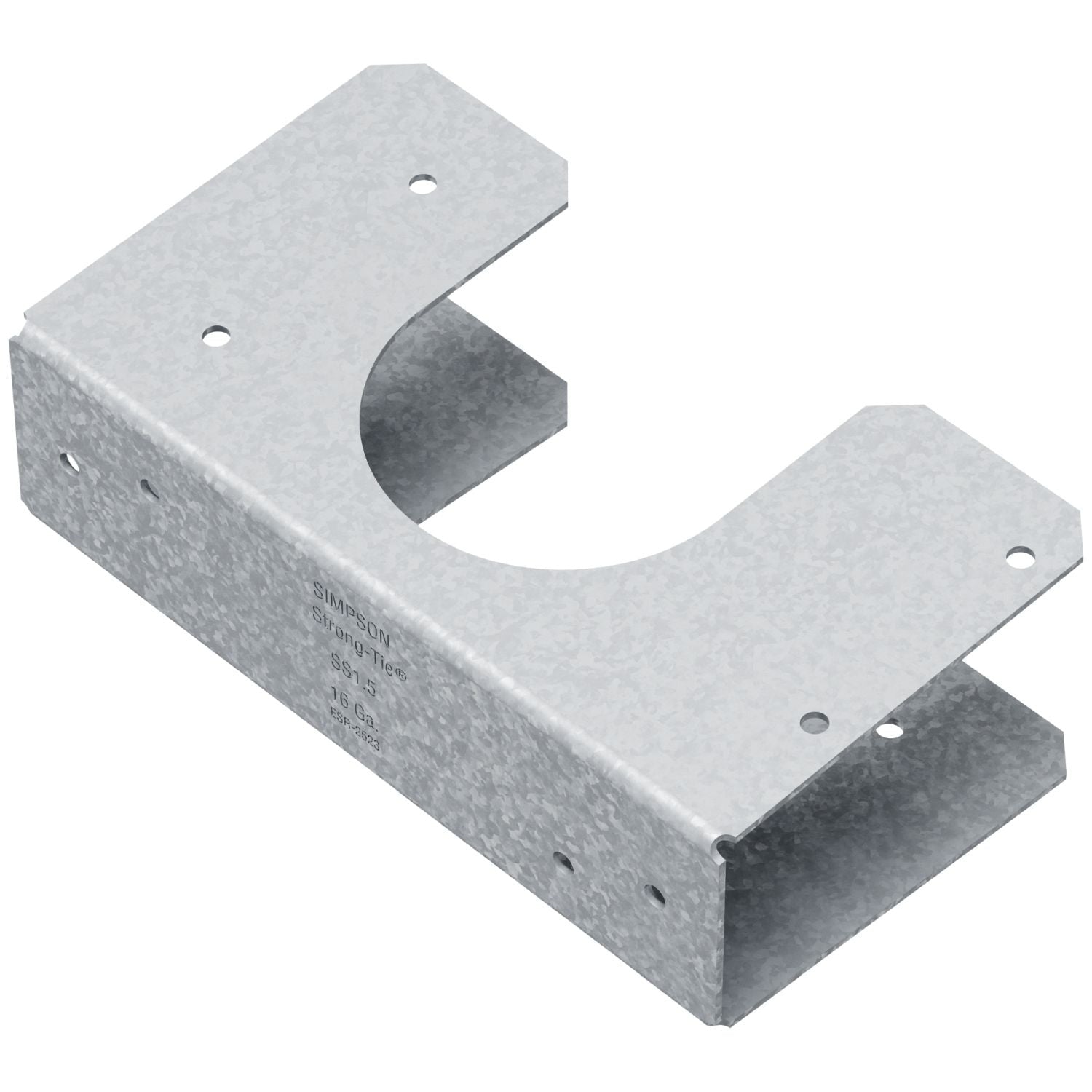

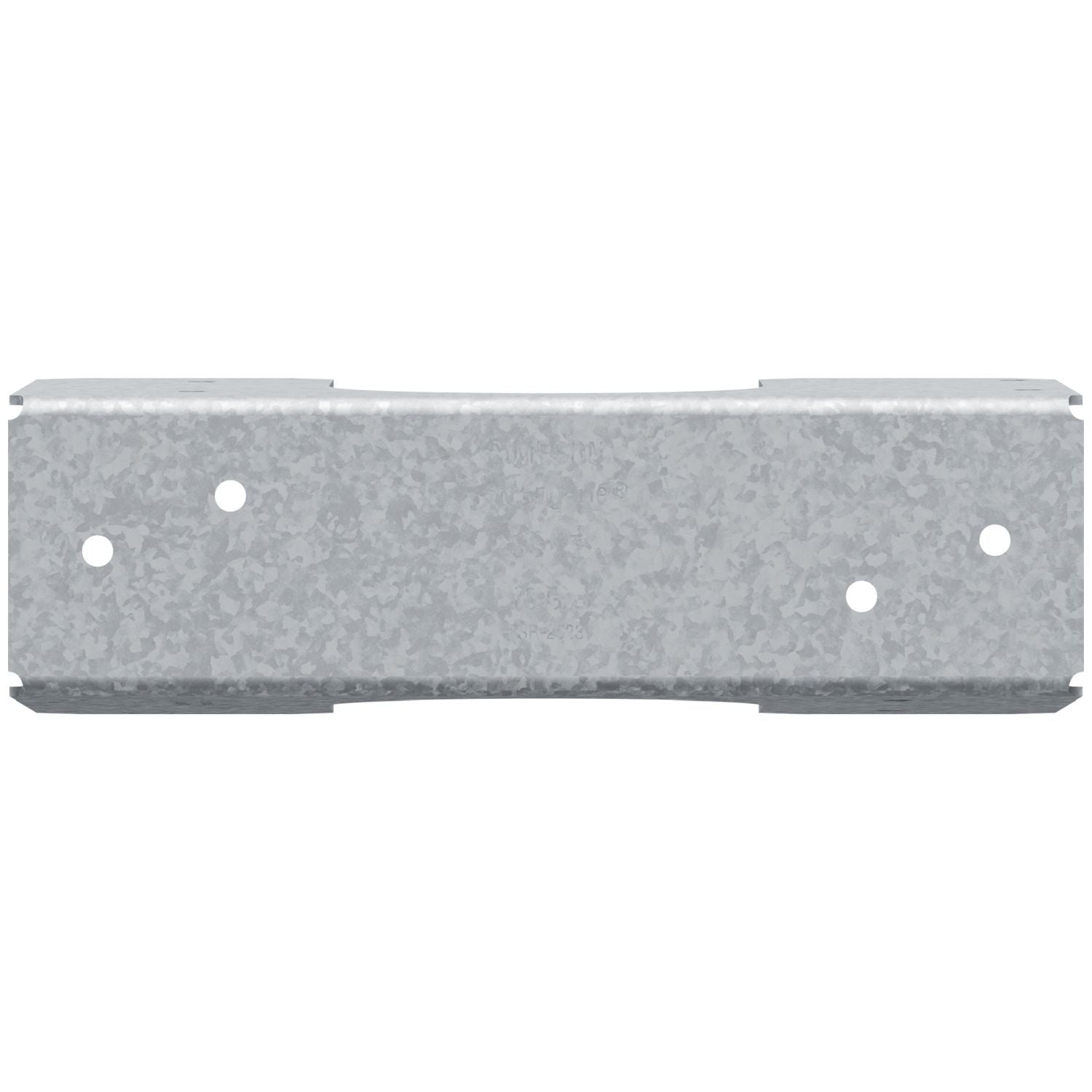

Simpson Strong-Tie SS1.5-R SS 16-Gauge Galvanized Stud Shoe for 2x Stud

• Installs over pipe up to 2-3/8 in. outside diameter
• Code listed for both building and plumbing codes
• Reinforces studs which have been drilled or notched during construction
• Designed to resist tension loads only
• Sized for nominal 2x stud
• Width: 1-9/16 in.
• Made from 16-gauge steel
• Galvanized (G90) for corrosion resistance

The Simpson Strong-Tie SS stud shoe is designed to reinforce notched, vertical studs in construction. This stud shoe is used to strengthen a wall stud that has a large hole drilled through it, typically to accommodate a plumbing waste line. The SS installs over the outside diameter of the pipe and is used as part of a total member replacement in structural applications.

• Installs over pipe up to 2-3/8 in. outside diameter
• Code listed for both building and plumbing codes
• Reinforces studs which have been drilled or notched during construction
• Designed to resist tension loads only
• Sized for nominal 2x stud
• Width: 1-9/16 in.
• Made from 16-gauge steel
• Galvanized (G90) for corrosion resistance

Install With: (12) 0.148 in. x 1-1/2 in. nails
