Simpson Strong-Tie SP8 SP 7-5/16-in. x 8-5/16-in. Galvanized Stud Plate Tie

• Load rated
• Designed to resist wind and seismic forces
• Does not require top or bottom track attachment
• Nominal stud size: 2x
• Nominal plate width: 8x
• Made from 20-gauge steel
• Galvanized (G90) for extra corrosion resistance

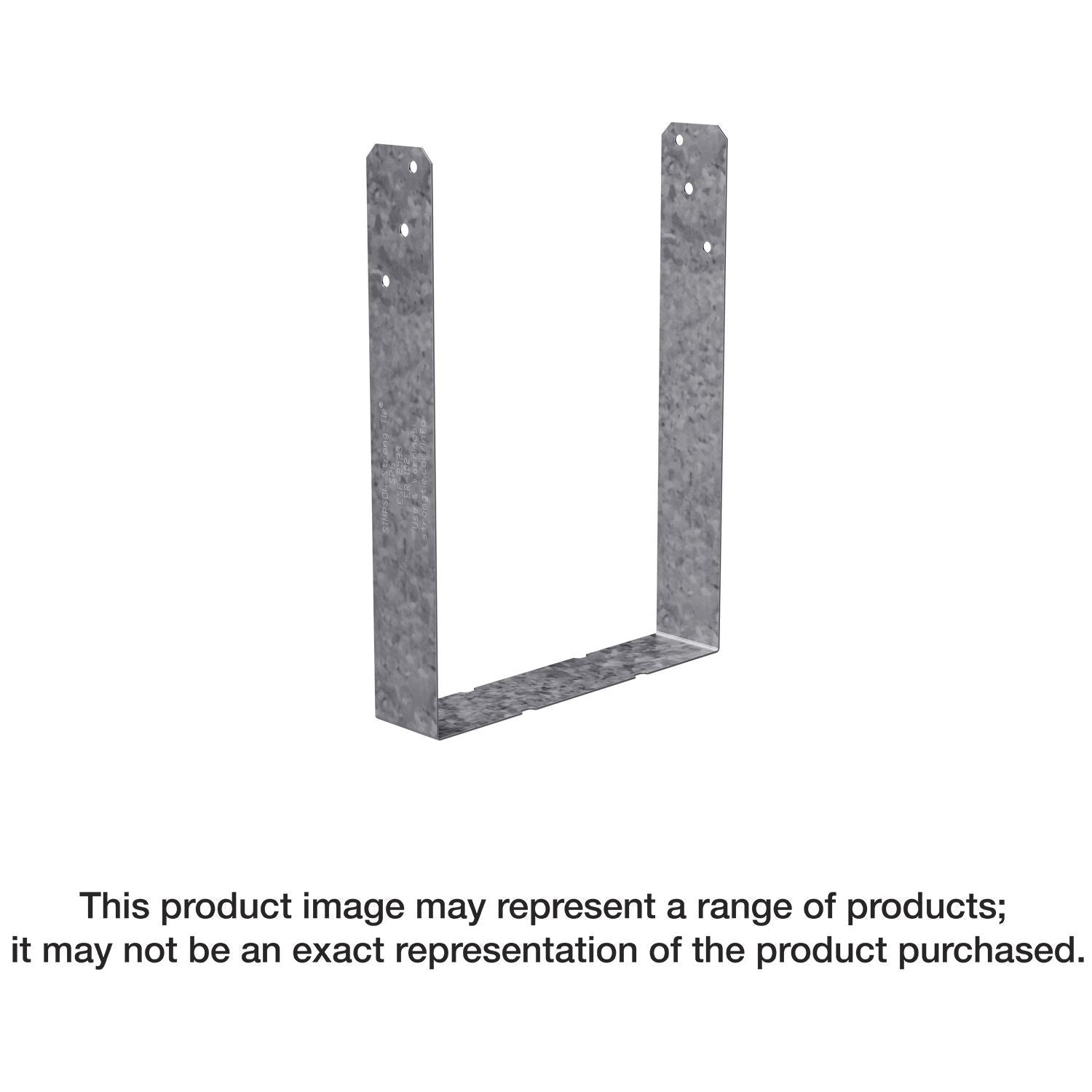

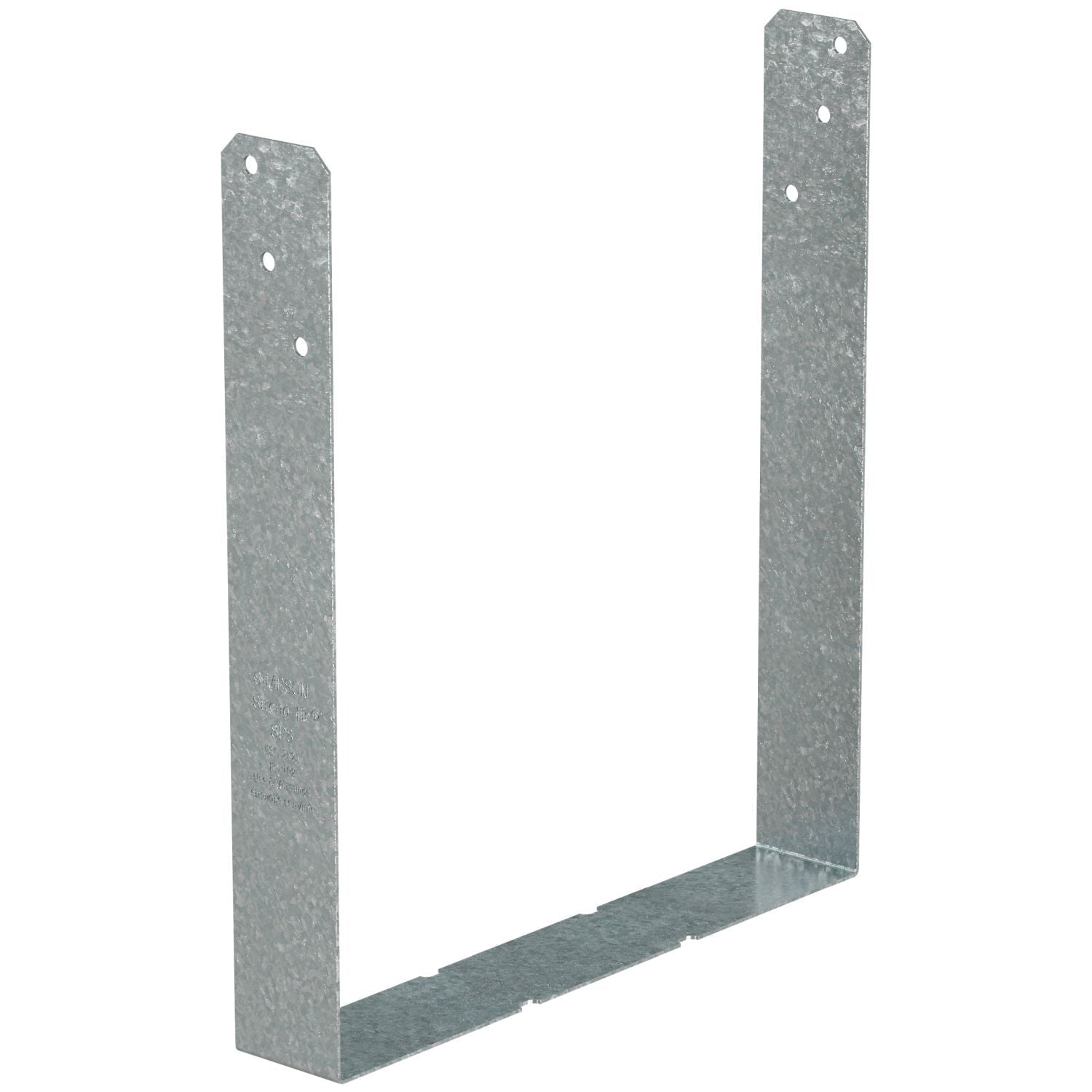

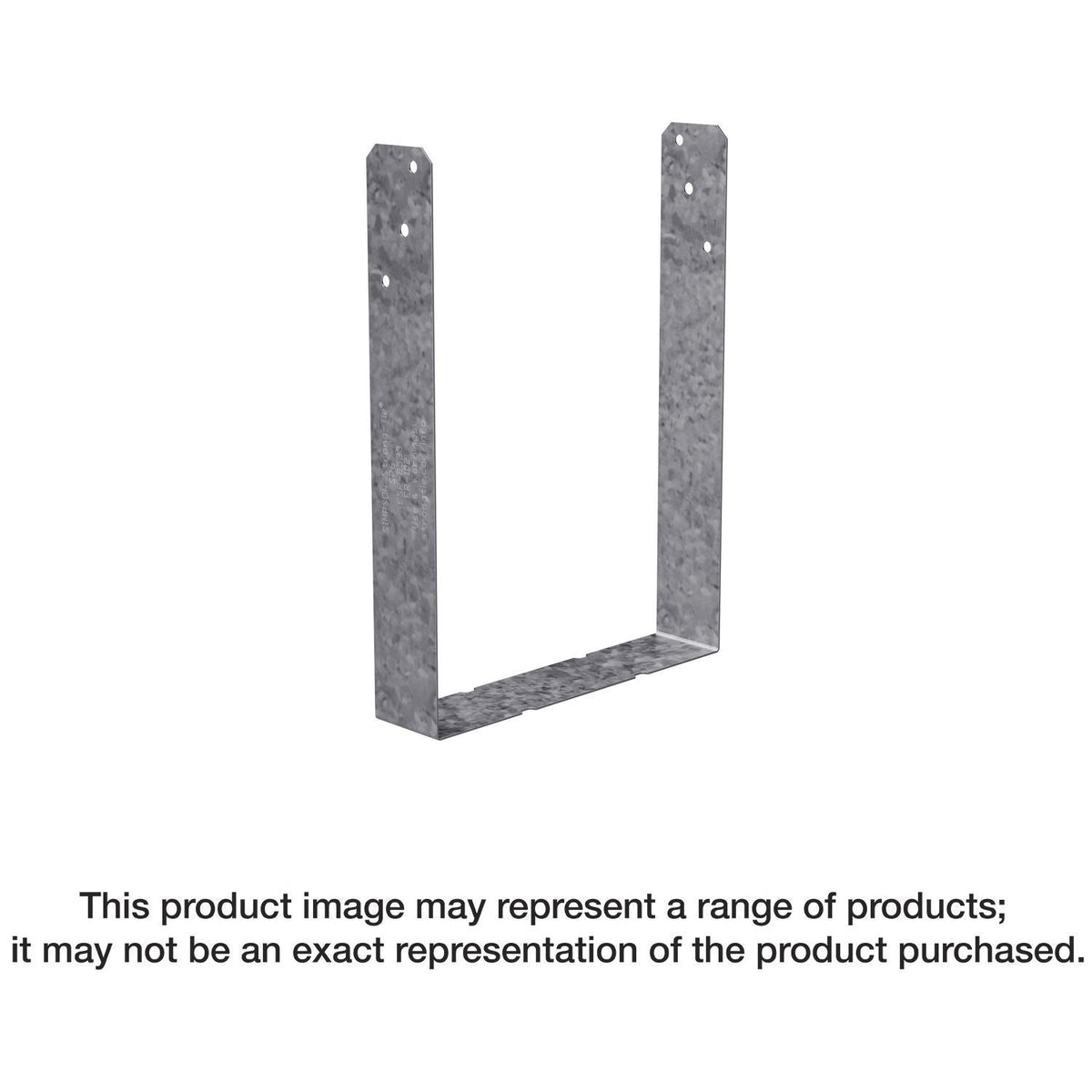

The stud-plate tie series offers various solutions for connecting the stud to the top and bottom plates. The SP is designed as a stud-to-plate connection to resist uplift. This U-shaped strap has a horizontal portion that bears against the wood-wall top plates or sill plates and two vertical legs that are nailed to the edges of a wood stud. These ties are a cost-effective option when properly installed before the placement of the wall.

• Load rated
• Designed to resist wind and seismic forces
• Does not require top or bottom track attachment
• Nominal stud size: 2x
• Nominal plate width: 8x
• Made from 20-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: (6) 0.148 in. x 1-1/2 in. nails
