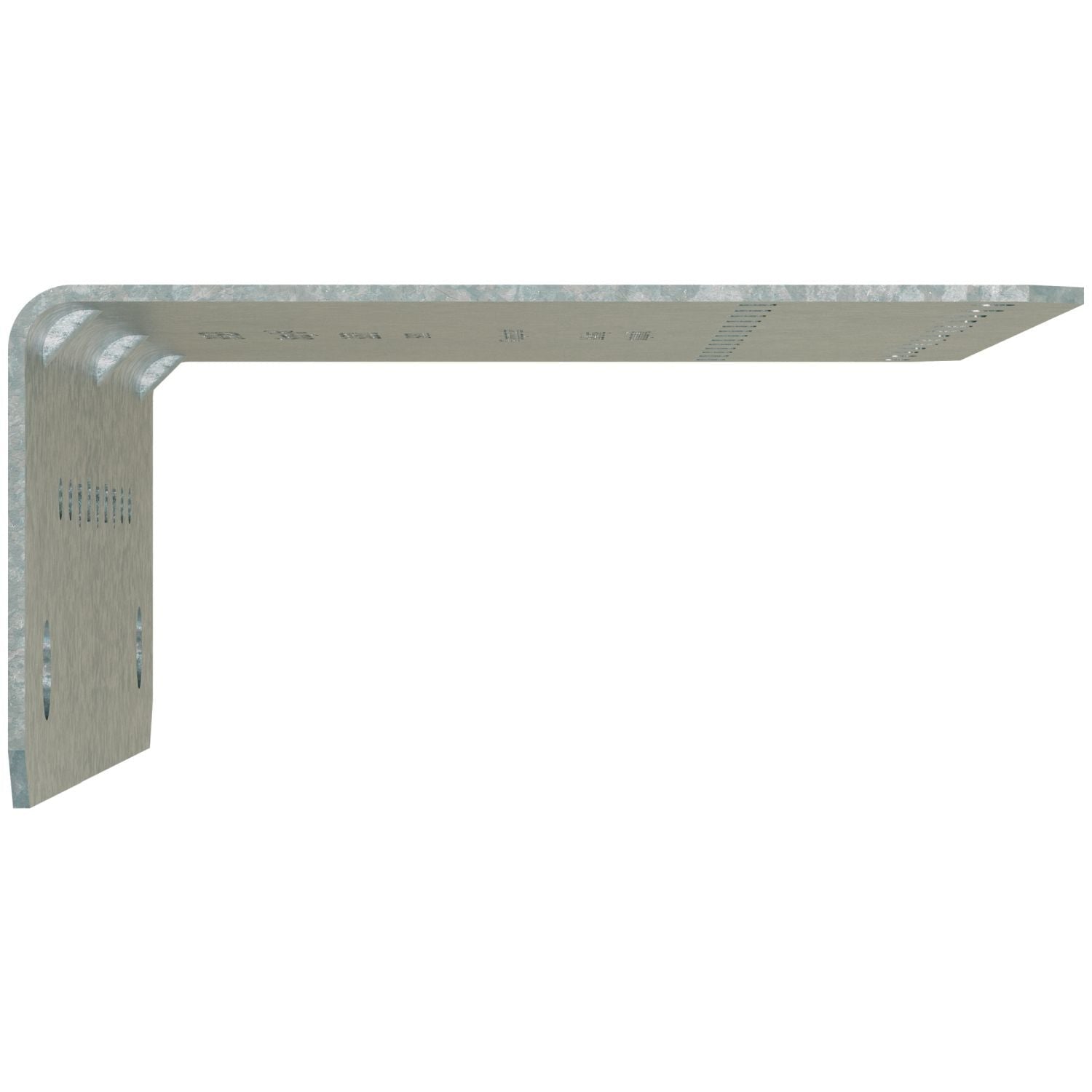

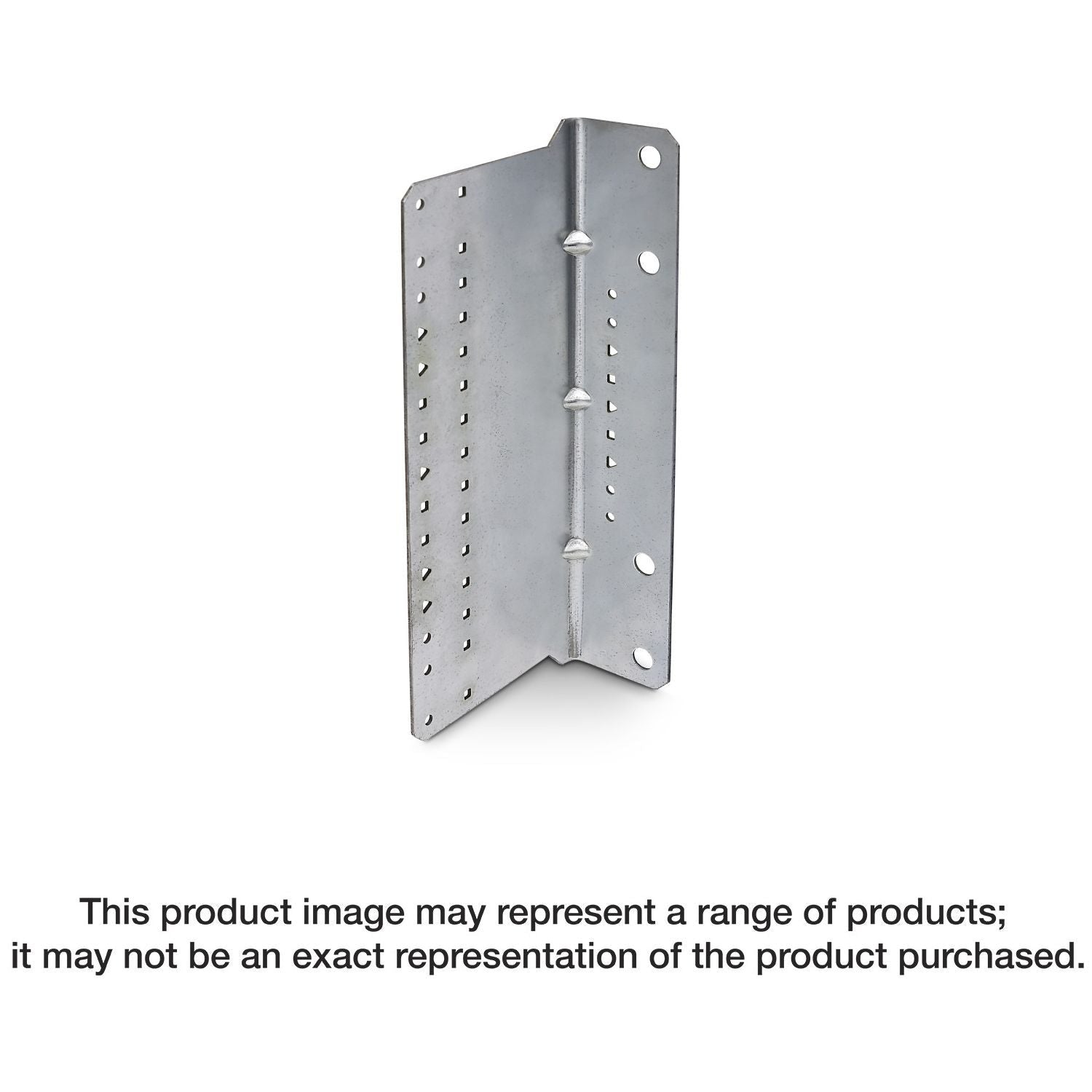

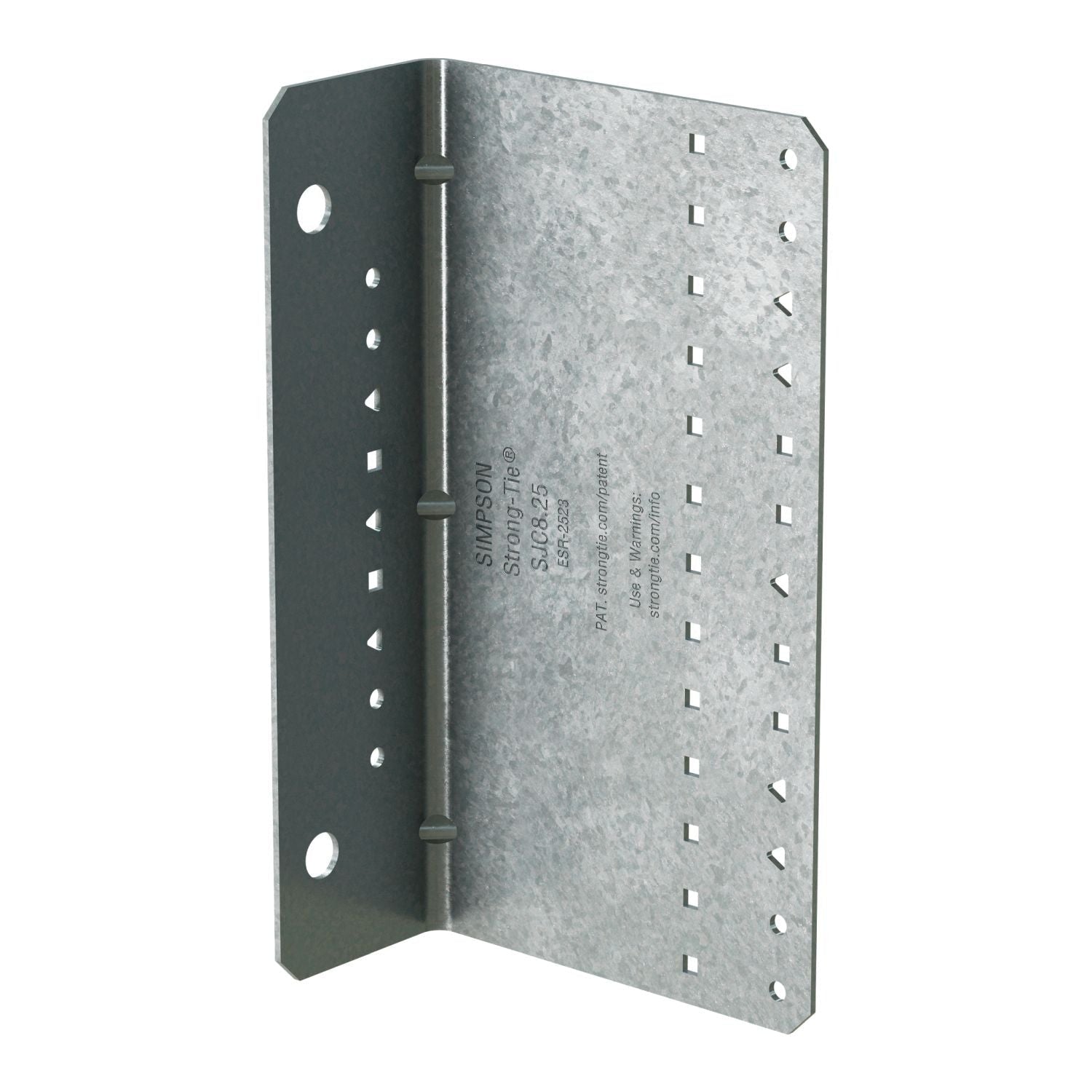

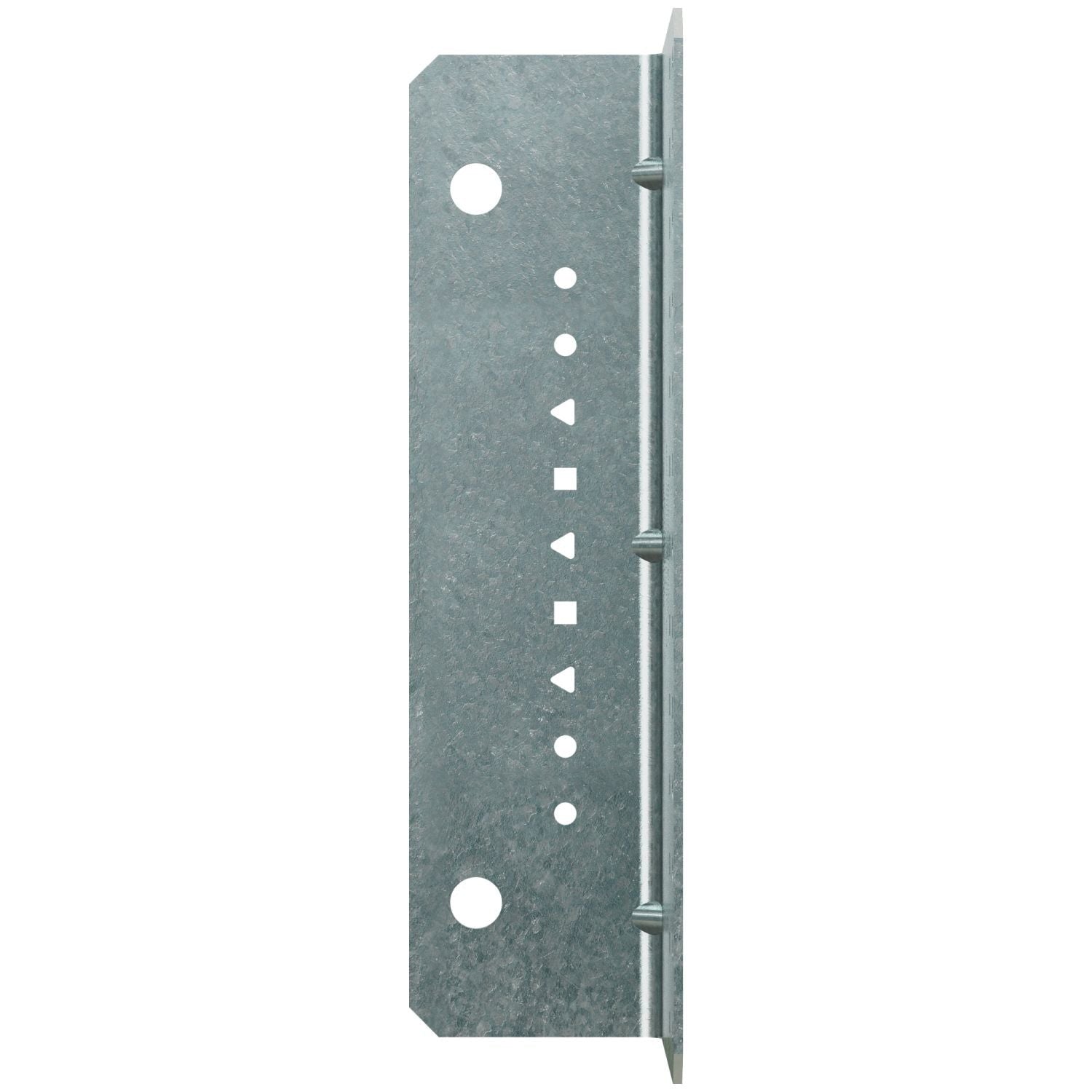

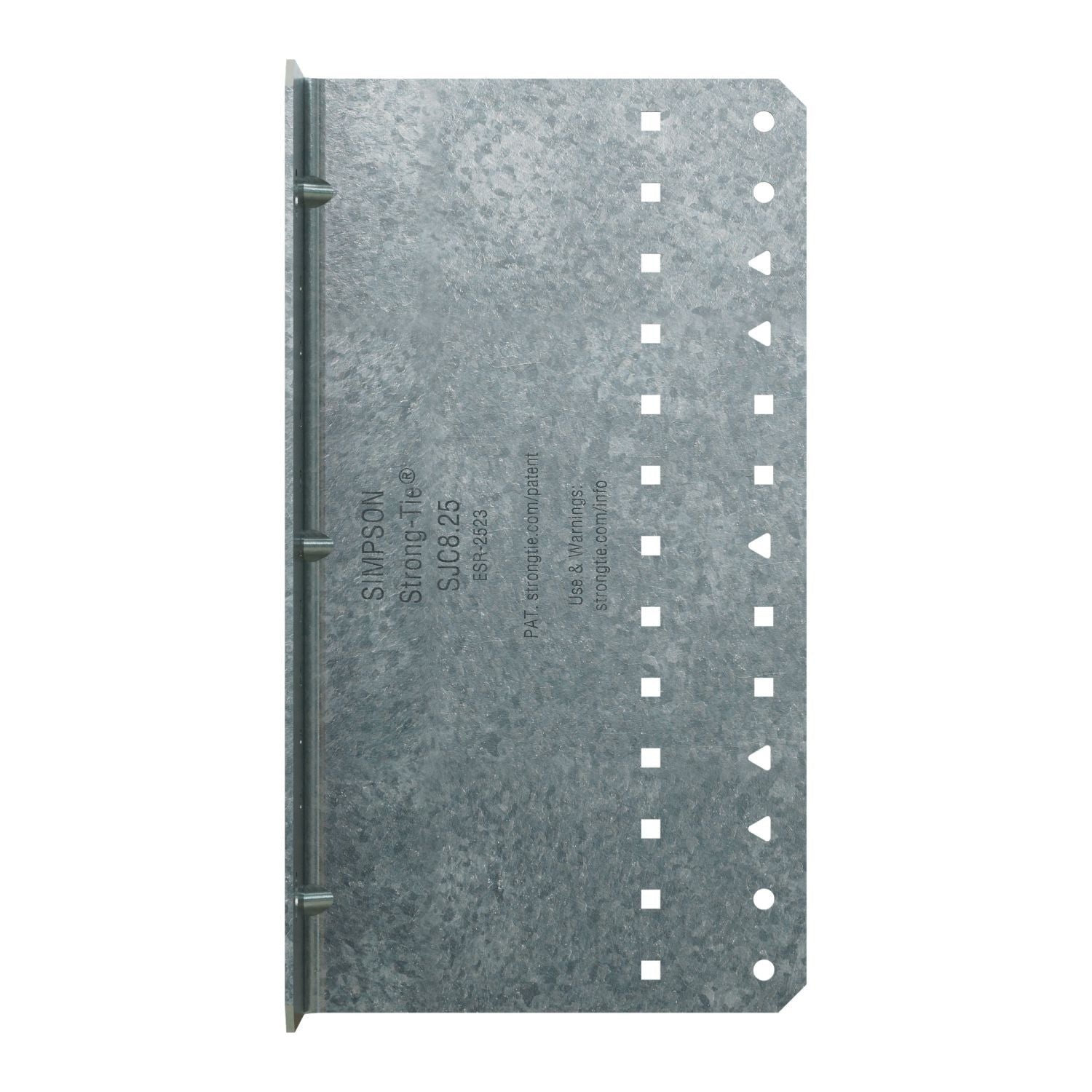

Simpson Strong-Tie SJC8.25-R15 SJC 2-in. x 4-1/2-in. x 8-1/4-in. 14-Gauge Galvanized Steel-Joist Connector, 15-Pack

• Prepunched holes reduce installation cost by eliminating predrilling
• Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
• Angle lengths accommodate either hard-side or soft-side attachment for joists with return lips up to 3/4 in.
• 4-1/2 in. leg length enables soft-side connections for joists with flanges up to 3-1/2 in.
• Also accommodates kicker-to-metal-deck applications
• Made from 14-gauge (68 mil) steel
• Galvanized (G90) for extra corrosion resistance
• Size: 2 in. x 4-1/2 in. x 8-1/4 in.
• Quantity: 15

Simpson Strong-Tie SJC connectors have been specifically designed for various CFS joist, rafter and underside of metal-deck applications. The unique clip dimensions enable easy installation on the open side of joists and rafters with up to 3-1/2 in. flanges and return lips up to 3/4 in. For metal-deck applications, the prepunched 3/8-in. holes easily accommodate 6-in., 8-in., 10-in. and 12-in. on-center metal-deck flutes.

• Prepunched holes reduce installation cost by eliminating predrilling
• Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
• Angle lengths accommodate either hard-side or soft-side attachment for joists with return lips up to 3/4 in.
• 4-1/2 in. leg length enables soft-side connections for joists with flanges up to 3-1/2 in.
• Also accommodates kicker-to-metal-deck applications
• Made from 14-gauge (68 mil) steel
• Galvanized (G90) for extra corrosion resistance
• Size: 2 in. x 4-1/2 in. x 8-1/4 in.
• Quantity: 15

Install With: Fasteners may vary by application; refer to Simpson Strong-Tie catalog or strongtie.com
