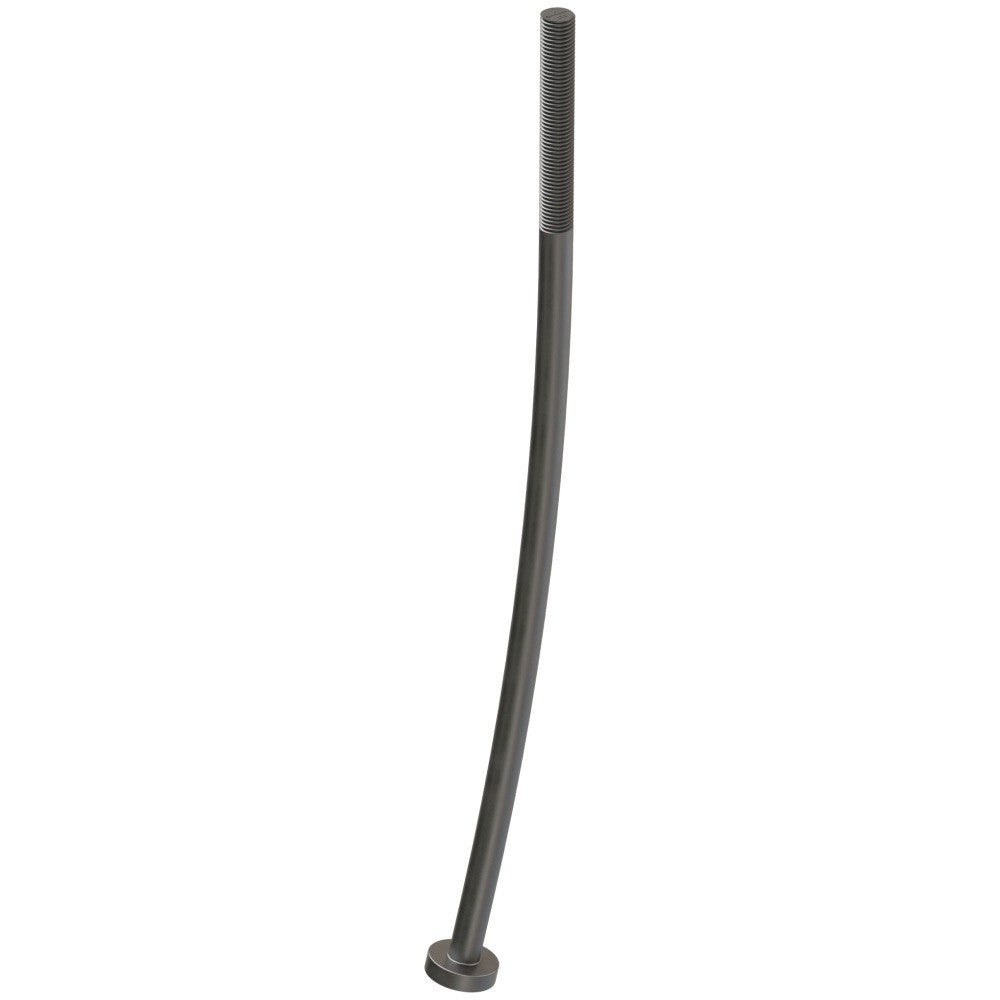

Simpson Strong-Tie SABR7/8X28 SABR 7/8-in. x 28-in. Anchor Bolt

• Single anchor solution for all foundation types
• Stamped model and alignment information on the head makes it easy to identify and align for installation
• Sweep design allows placement near the edge of concrete while increasing tension capacity
• One-piece design eliminates potential loss of components
• Diameter: 7/8 in.
• Bolt length: 28 in.
• Material: ASTM F1554, Grade 55 (uncoated steel)

The Simpson Strong-Tie SABR™ anchor bolt is a cast-in-place anchor that comes in a wide range of diameters. With a 6 in. threaded section, this anchor bolt accommodates a variety of holdown seat heights, including all Simpson Strong-Tie holdowns, when installed on a 2x or 3x sill plate. The one-piece sweep design maximizes its position in the concrete, providing increased tension capacity.

• Single anchor solution for all foundation types
• Stamped model and alignment information on the head makes it easy to identify and align for installation
• Sweep design allows placement near the edge of concrete while increasing tension capacity
• One-piece design eliminates potential loss of components
• Diameter: 7/8 in.
• Bolt length: 28 in.
• Material: ASTM F1554, Grade 55 (uncoated steel)

Install With: Top nuts and washers for holdown attachment are not supplied with the SABR; install standard nuts, couplers and/or washers as required
