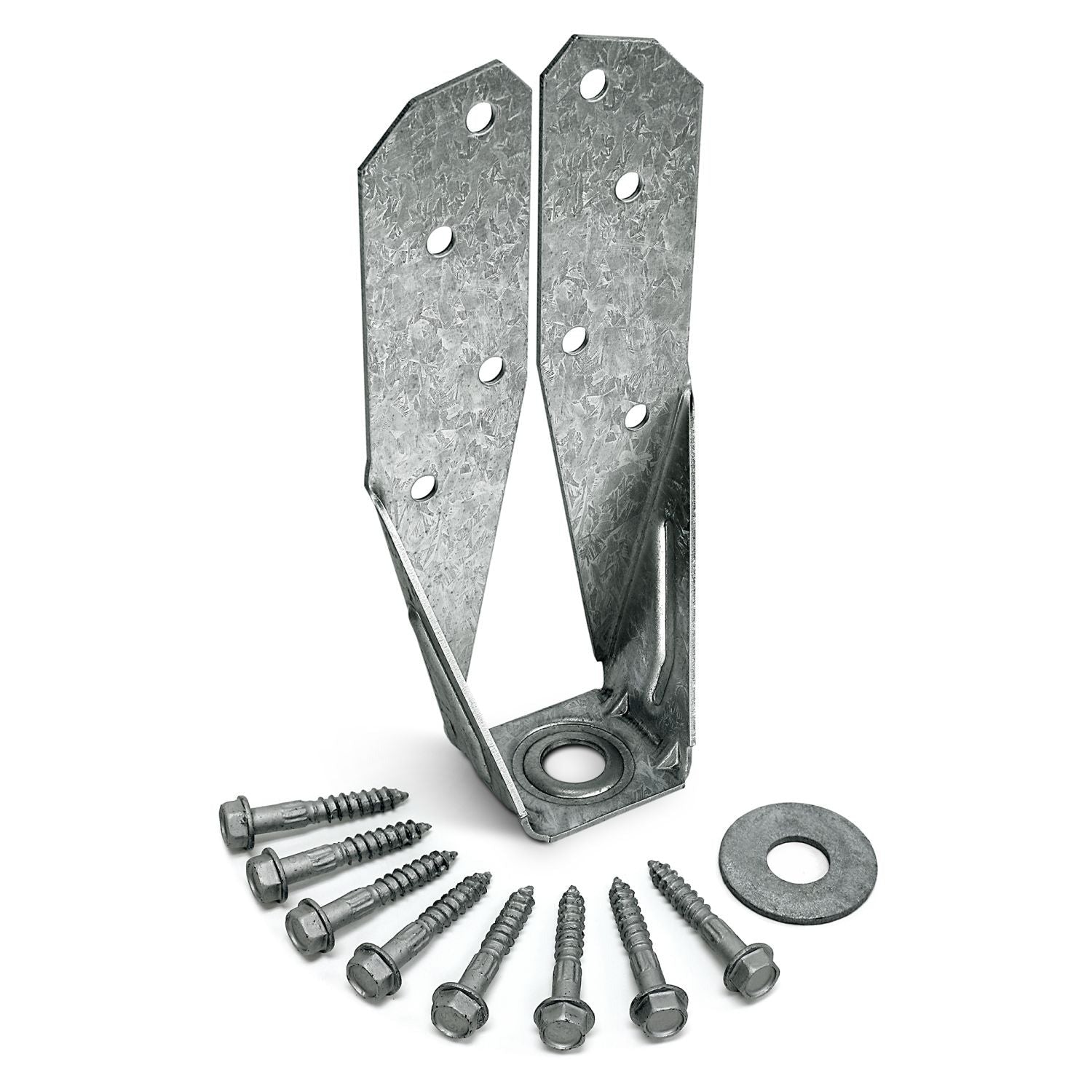

Simpson Strong-Tie S/DTT2Z S/DTT ZMAX Galvanized Light Tension Tie

• Can be installed with cast-in-place or post-installed anchor bolts
• Short profile height
• Base width and depth 1-5/8 in. x 1-5/8 in.
• Height: 6-15/16 in.
• Made from 68-mil (14-gauge) steel
• ZMAX coating offers extra corrosion resistance

Simpson Strong-Tie cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel (CFS) application. From hangers, holdowns and steel studs to hand-bendable framing members for creating curved walls on CFS jobsites, Simpson Strong-Tie offers a wide variety of sizes, materials and finishes for every project, big and small. The S/DTT is suitable for lighter-duty hold-down (holdown) applications on single or back-to-back studs and installs easily with #14 self-drilling screws. This light tension tie is ideal for retrofit or new construction projects, providing high-strength, post-pour, concrete-to-steel connections.

• Can be installed with cast-in-place or post-installed anchor bolts
• Short profile height
• Base width and depth 1-5/8 in. x 1-5/8 in.
• Height: 6-15/16 in.
• Made from 68-mil (14-gauge) steel
• ZMAX coating offers extra corrosion resistance

Install With: Installs with (1) 1/2-in. anchor bolt and (8) #14 self-drilling screws; requires a standard cut washer (included) be installed between the nut and the seat
