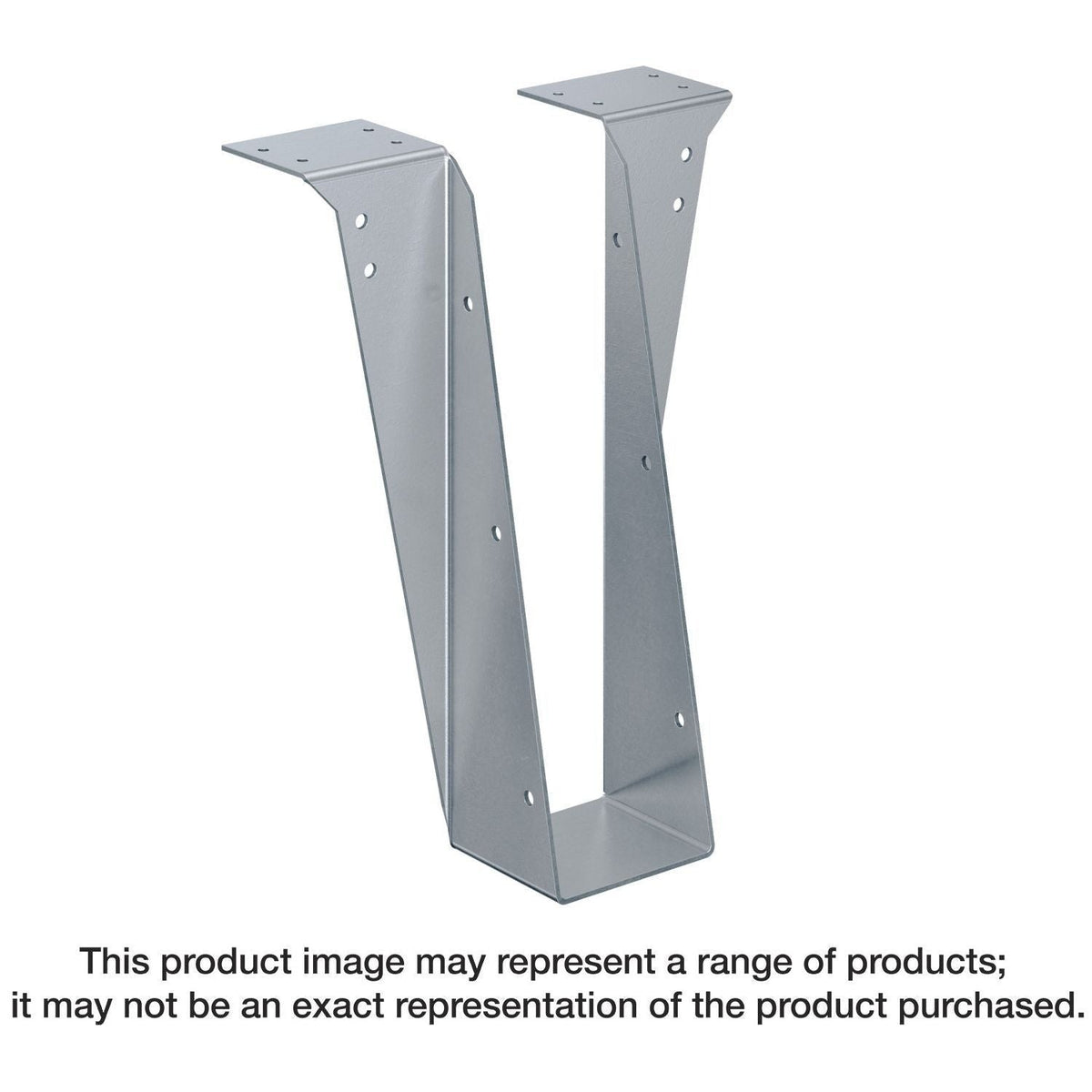

Simpson Strong-Tie S/B3.12/10 S/B 12 ga. Hanger for 3-in. x 10-in. Cold-Formed Steel Joist

• Design provides dimensional accuracy and helps to ensure proper bearing area and connection
• High-capacity, top-flange hanger manufactured with precision forming and quality control
• Attaches to cold-formed steel members with screws or to structural steel with powder-actuated fasteners or welds
• Load-rated, tested and code listed
• For 3 in. width x 10 in. height cold-formed steel joist
• Made from 97mil (12 ga.) steel
• Galvanized (G90) for corrosion resistance

Simpson Strong-Tie cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel (CFS) application. From hangers, holdowns and steel studs to hand-bendable framing members for creating curved walls on CFS jobsites, Simpson Strong-Tie offers a wide variety of sizes, materials and finishes for every project, big and small. The S/B hanger installs to structural steel or cold-formed steel beams for support of cold-formed steel joists.

• Design provides dimensional accuracy and helps to ensure proper bearing area and connection
• High-capacity, top-flange hanger manufactured with precision forming and quality control
• Attaches to cold-formed steel members with screws or to structural steel with powder-actuated fasteners or welds
• Load-rated, tested and code listed
• For 3 in. width x 10 in. height cold-formed steel joist
• Made from 97mil (12 ga.) steel
• Galvanized (G90) for corrosion resistance

Install With: Fasteners may vary by application; refer to Simpson Strong-Tie catalog or strongtie.com
