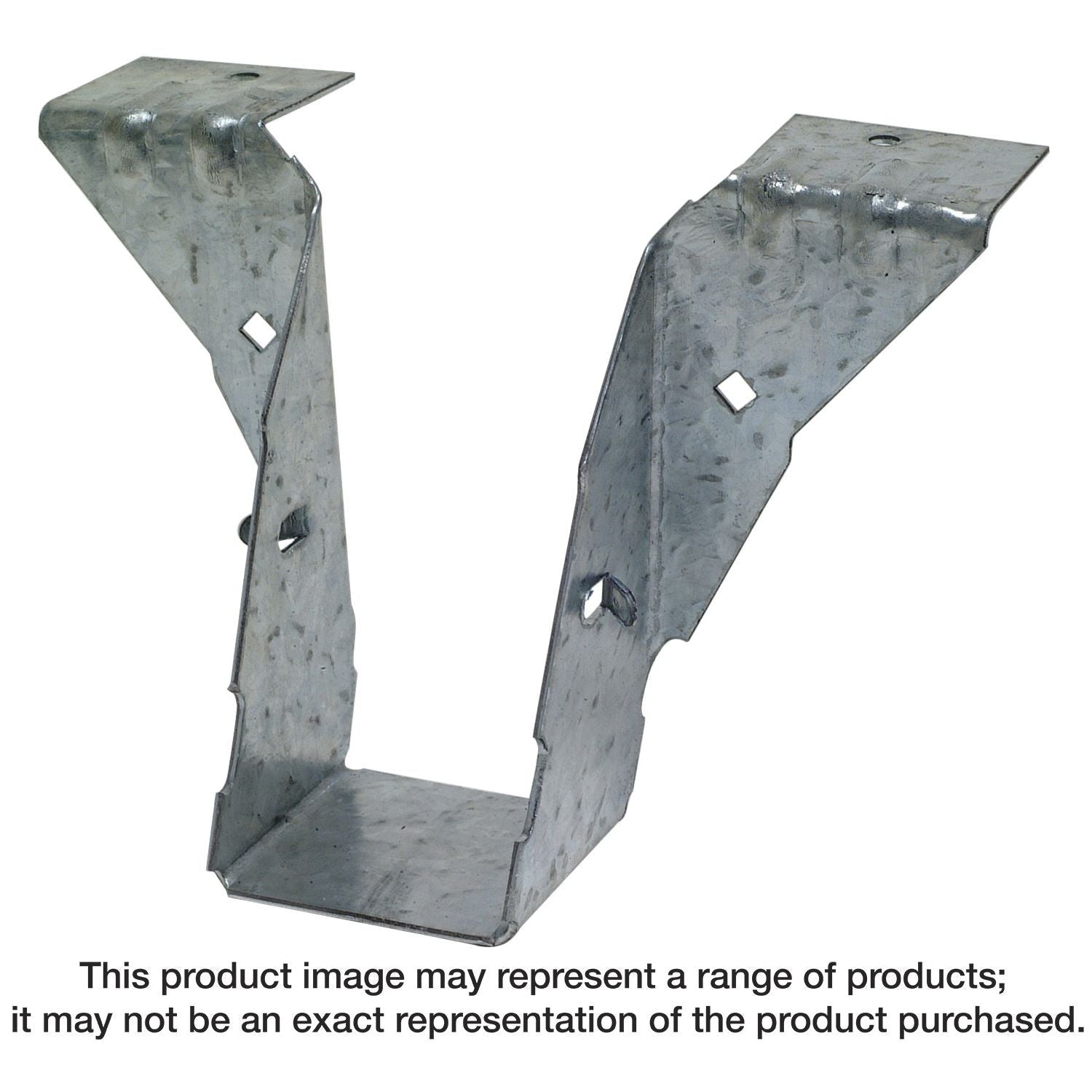

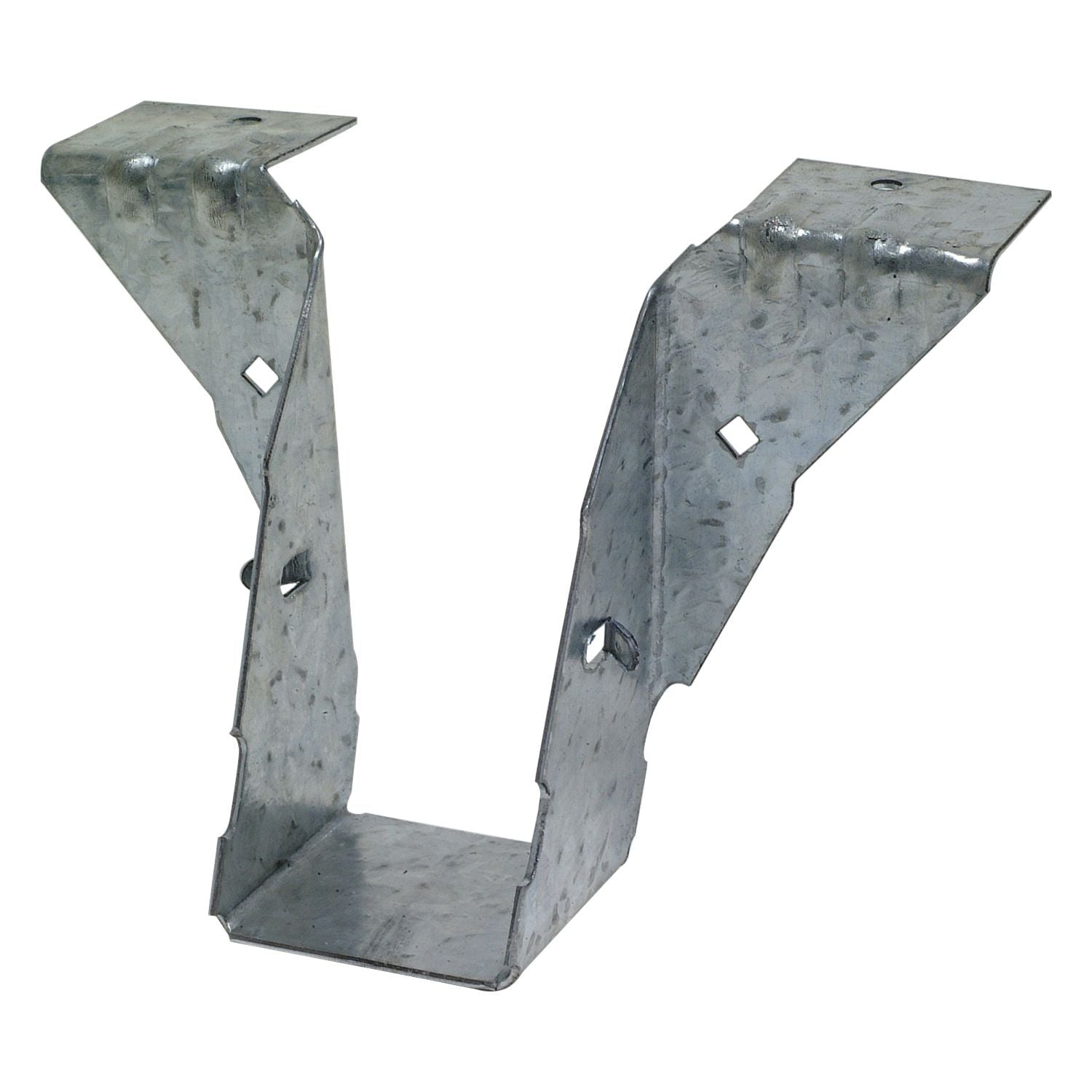

Simpson Strong-Tie PF24Z PF 18-Gauge ZMAX Galvanized Post Frame Hanger for 2x4

• Self-jigging design for automatic vertical alignment provides quick installation
• Diamond holes to temporarily fasten the connector for easy alignment and attachment
• Cannot be modified
• Seat width: 1-9/16 inches
• Nominal joist size: 2x4
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

The Simpson Strong-Tie PF top-flange hanger is designed for common light-frame applications. It features a patented double-shear nailing design that distributes the load through two points on each joist, providing greater strength with fewer nails. This economical hanger is for use with 2x members.

• Self-jigging design for automatic vertical alignment provides quick installation
• Diamond holes to temporarily fasten the connector for easy alignment and attachment
• Cannot be modified
• Seat width: 1-9/16 inches
• Nominal joist size: 2x4
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Install With: (4) 0.148-in. x 3-in. nails
