Simpson Strong-Tie PAB5-12 PAB 5/8-in. x 12-in. Pre-Assembled Anchor Bolt w/ Washer

• Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6-in. increments)
• Head stamp contains the Simpson Strong-Tie No Equal sign and diameter designation
• Rod diameter: 5/8 in.
• Rod length: 12 in.
• Material: Steel — ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi

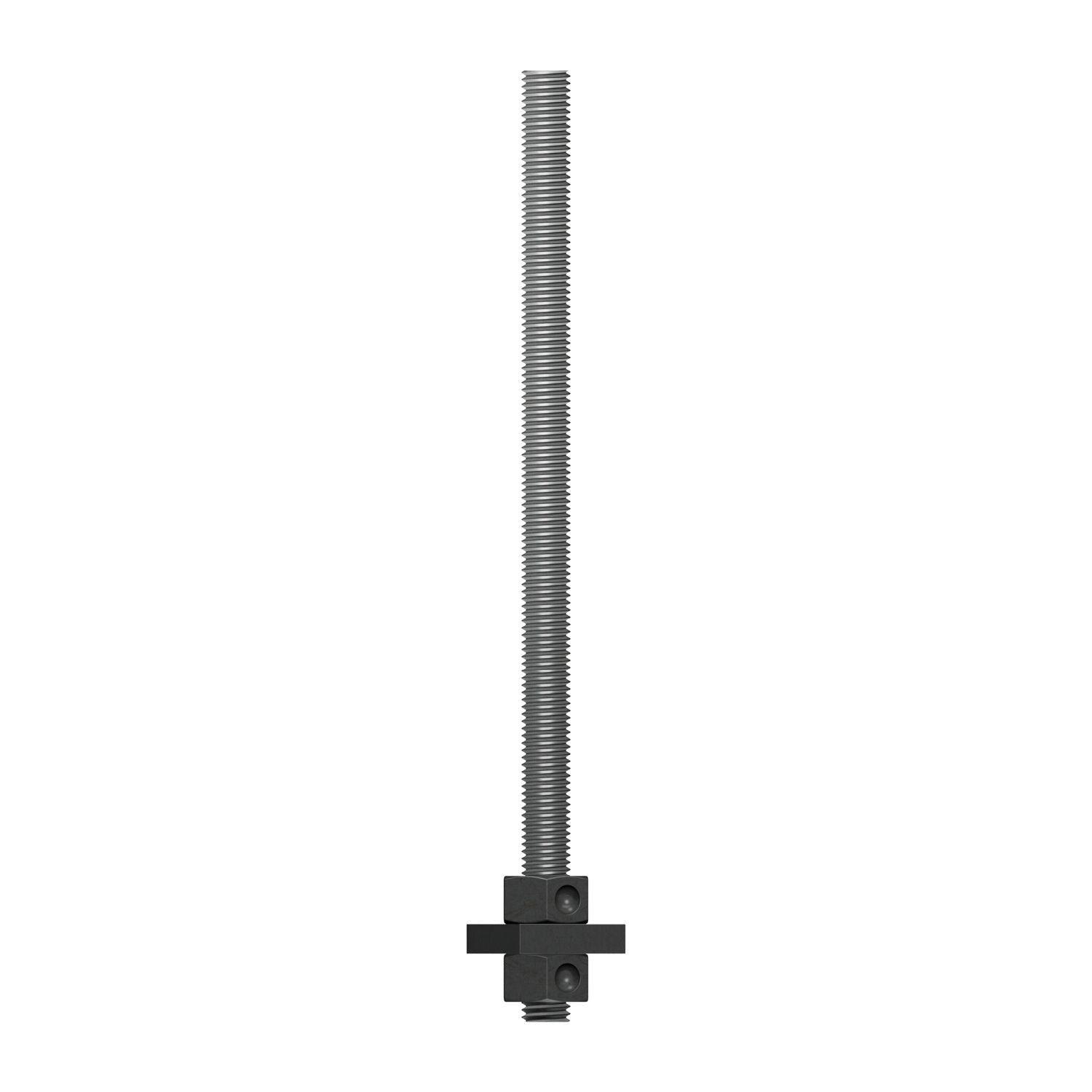

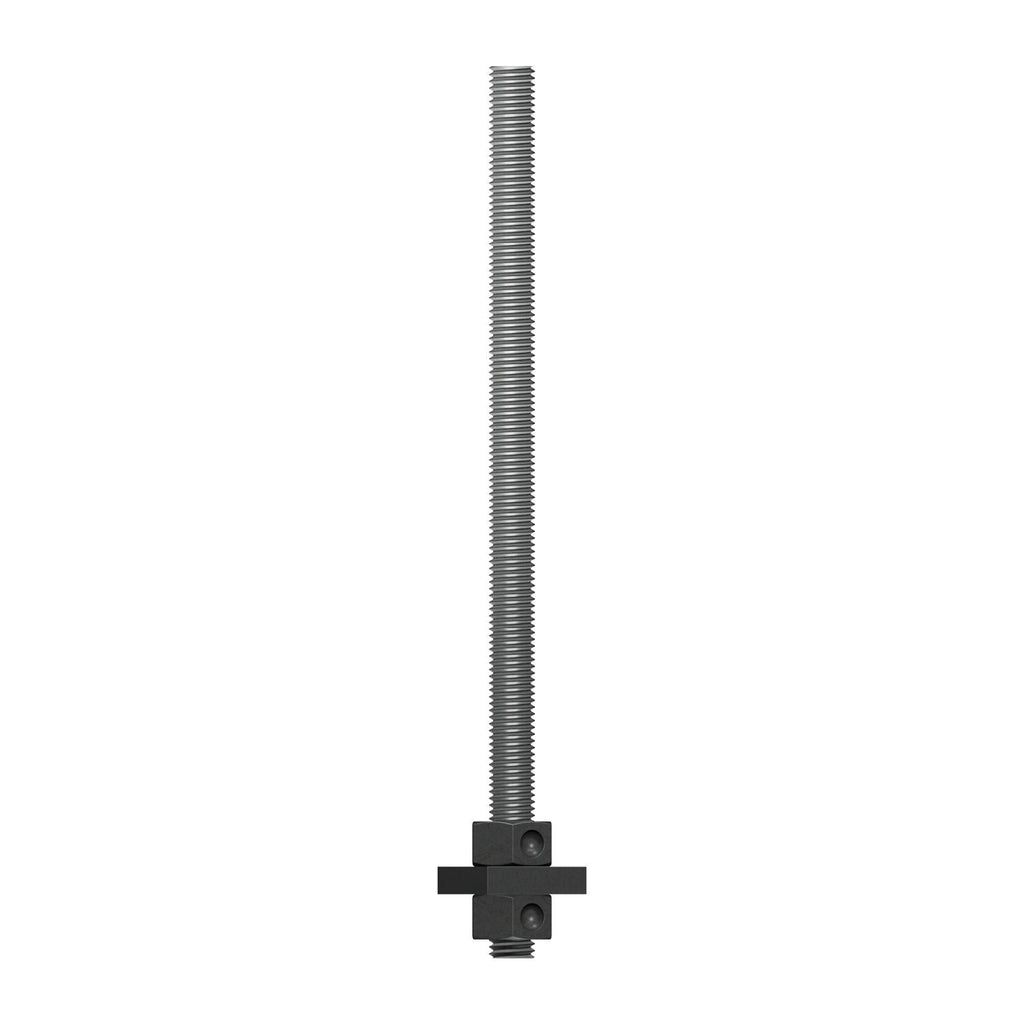

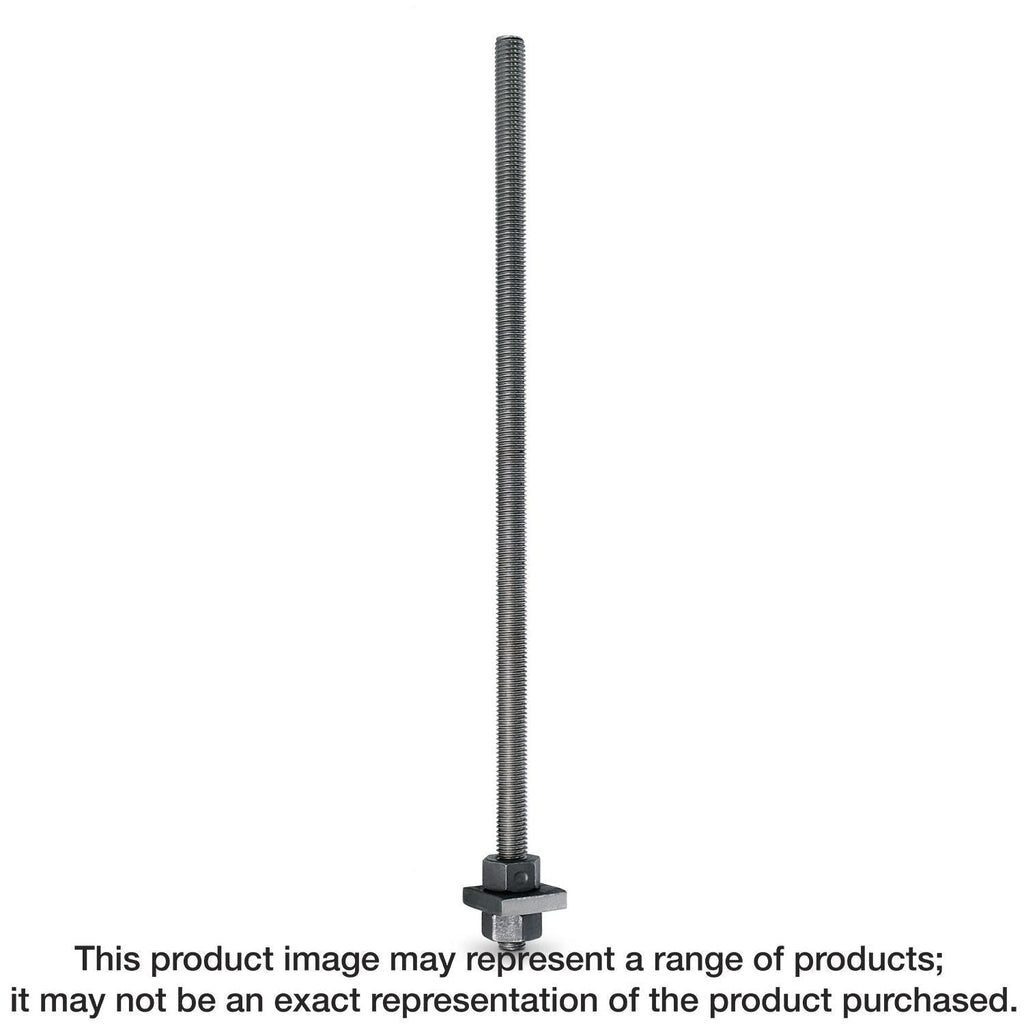

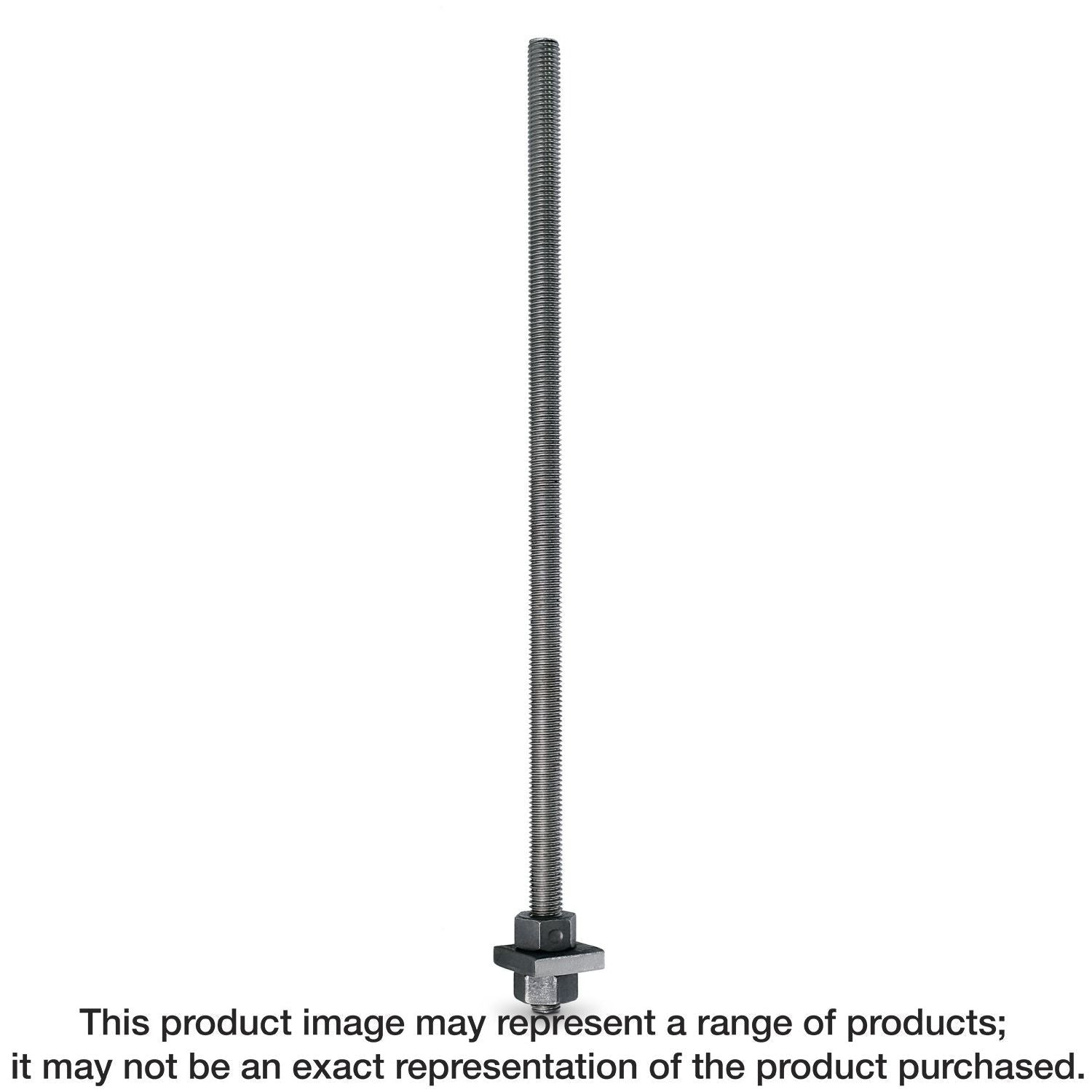

The Simpson Strong-Tie PAB™ anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end, sandwiched between two fixed hex nuts. The PAB also has a head stamp for easy identification after the pour.

• Available in diameters from 1/2 in. to 1-1/4 in. and lengths from 12 in. to 36 in. (in 6-in. increments)
• Head stamp contains the Simpson Strong-Tie No Equal sign and diameter designation
• Rod diameter: 5/8 in.
• Rod length: 12 in.
• Material: Steel — ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi
