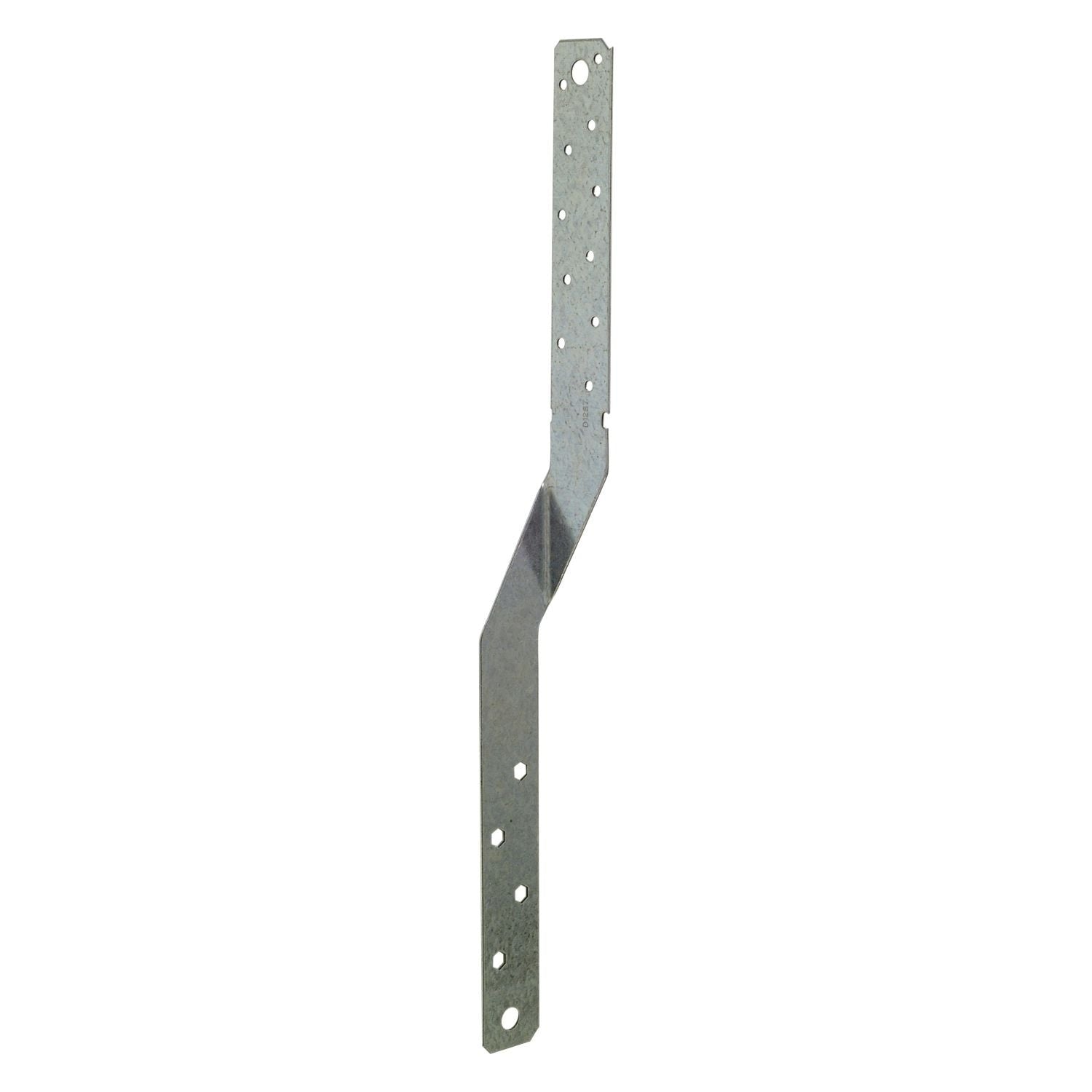

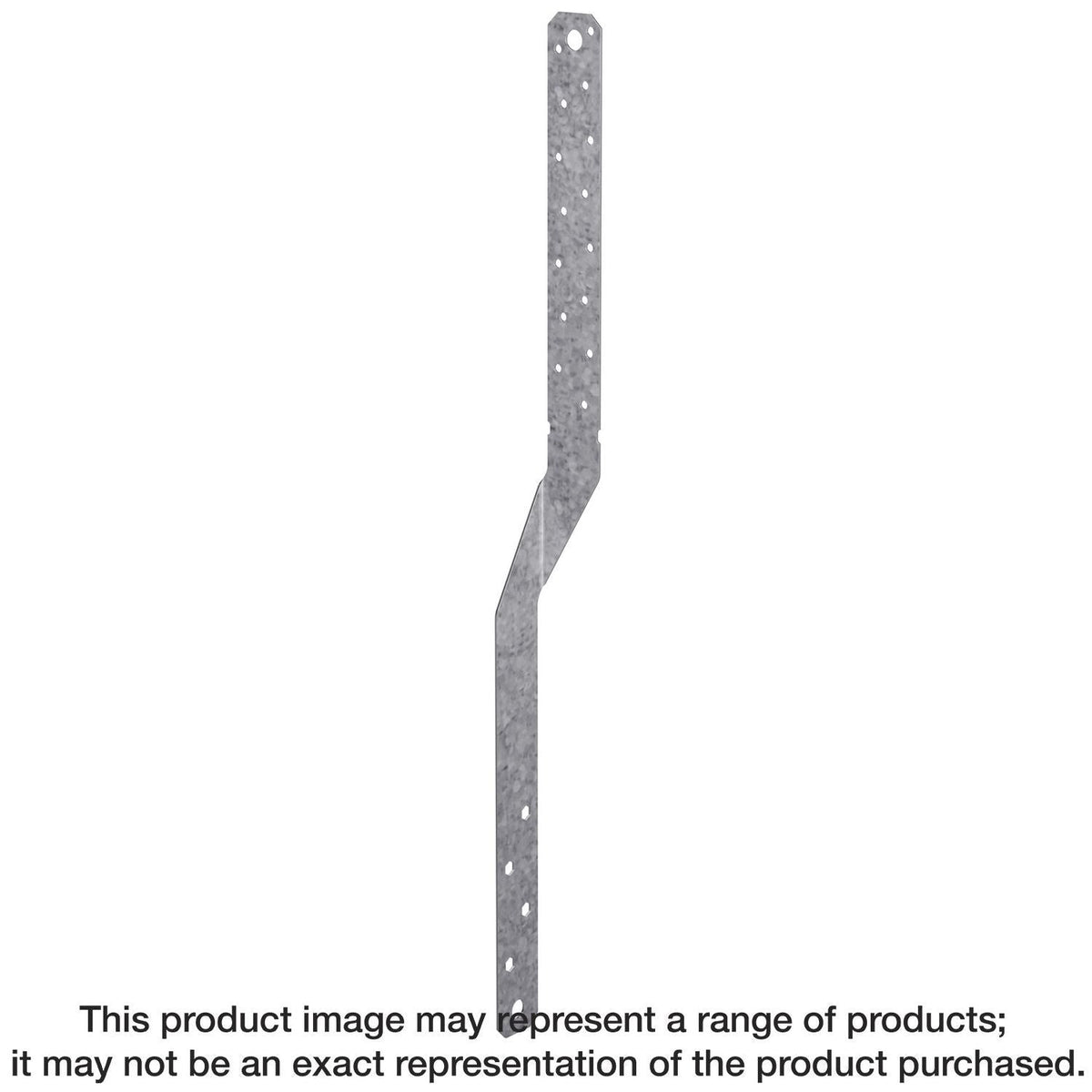

Simpson Strong-Tie MTSM16 MTSM 16-in. 16-Gauge Medium Twist Strap for Masonry

• Installs with hex-head Titen 2 screws and Strong-Drive SDS Heavy-Duty Connector screws
• Straps do not need to be wrapped over the truss to achieve the allowable load
• Can be field bent once to a 45° angle
• Length: 16 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

The MTSM offers moderate-strength truss-to-masonry connections. This masonry twist strap has a 2-in. bend section that reduces interference at the transition points between the two members. The MTSM is load rated for installation on both grout-filled CMU (GFCMU) and concrete.

• Installs with hex-head Titen 2 screws and Strong-Drive SDS Heavy-Duty Connector screws
• Straps do not need to be wrapped over the truss to achieve the allowable load
• Can be field bent once to a 45° angle
• Length: 16 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: Install with 10d common nails and Titen 2 screws
