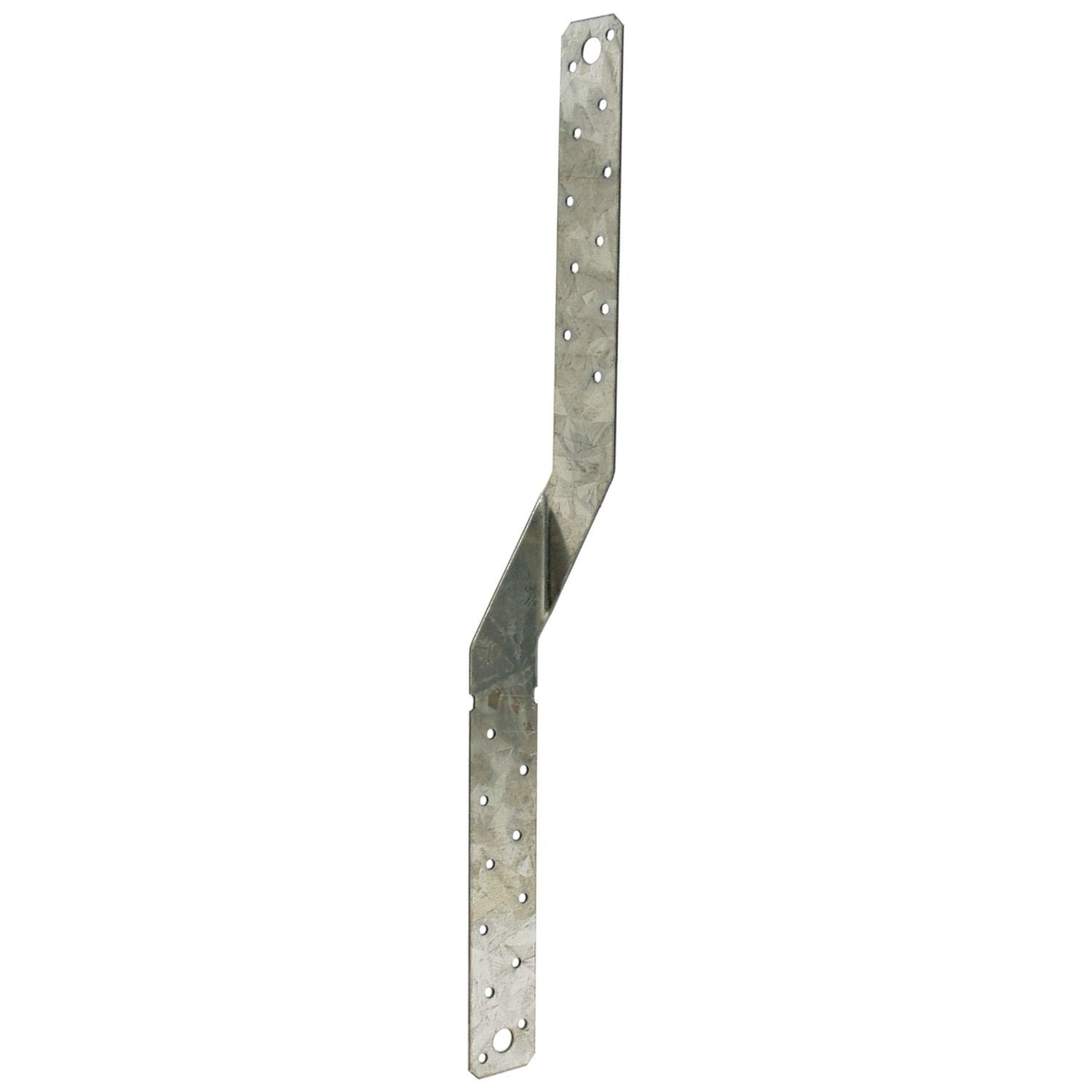

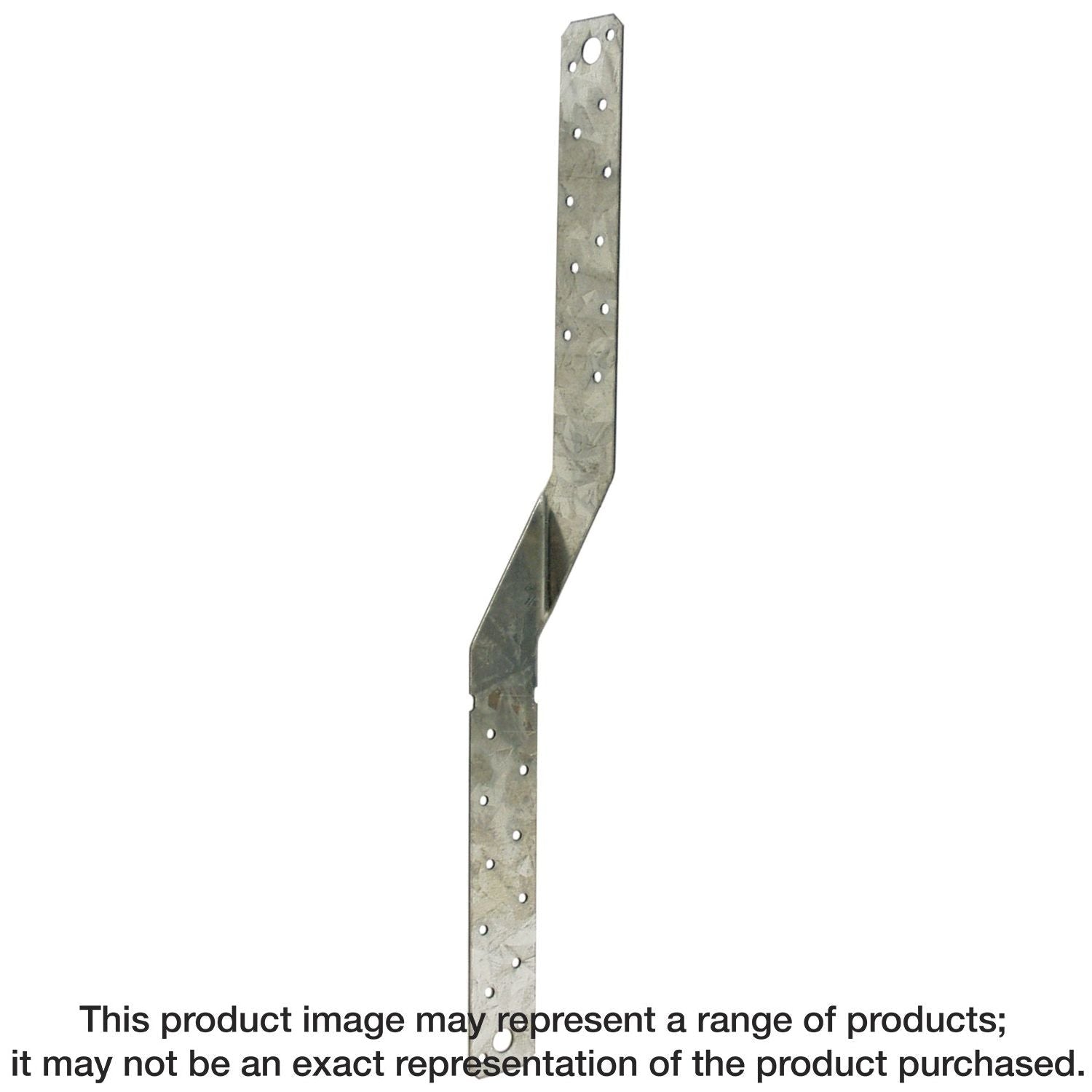

Simpson Strong-Tie MTS16Z MTS 16-in. 16-Gauge ZMAX Galvanized Medium Twist Strap

• Available with the bend reversed; specify "-REV" after the model number, such as MTS16-REV
• Versatile with many lengths offered to fit the specific application
• Straps do not need to be wrapped over the truss to achieve the allowable load
• Length: 16 in.
• Made from 16-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Simpson Strong-Tie straps and plates join and reinforce joints with simple, versatile solutions for a wide range of connections. The MTS provides a tension connection between two members. This economical twist strap resists moderate uplift loads at the rafter or heel of a truss. The MTS has a small bend section to reduce interference at the transition points between the two members.

• Available with the bend reversed; specify "-REV" after the model number, such as MTS16-REV
• Versatile with many lengths offered to fit the specific application
• Straps do not need to be wrapped over the truss to achieve the allowable load
• Length: 16 in.
• Made from 16-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Install With: Install with 10d common nails, 10d x 1-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive SD screws
