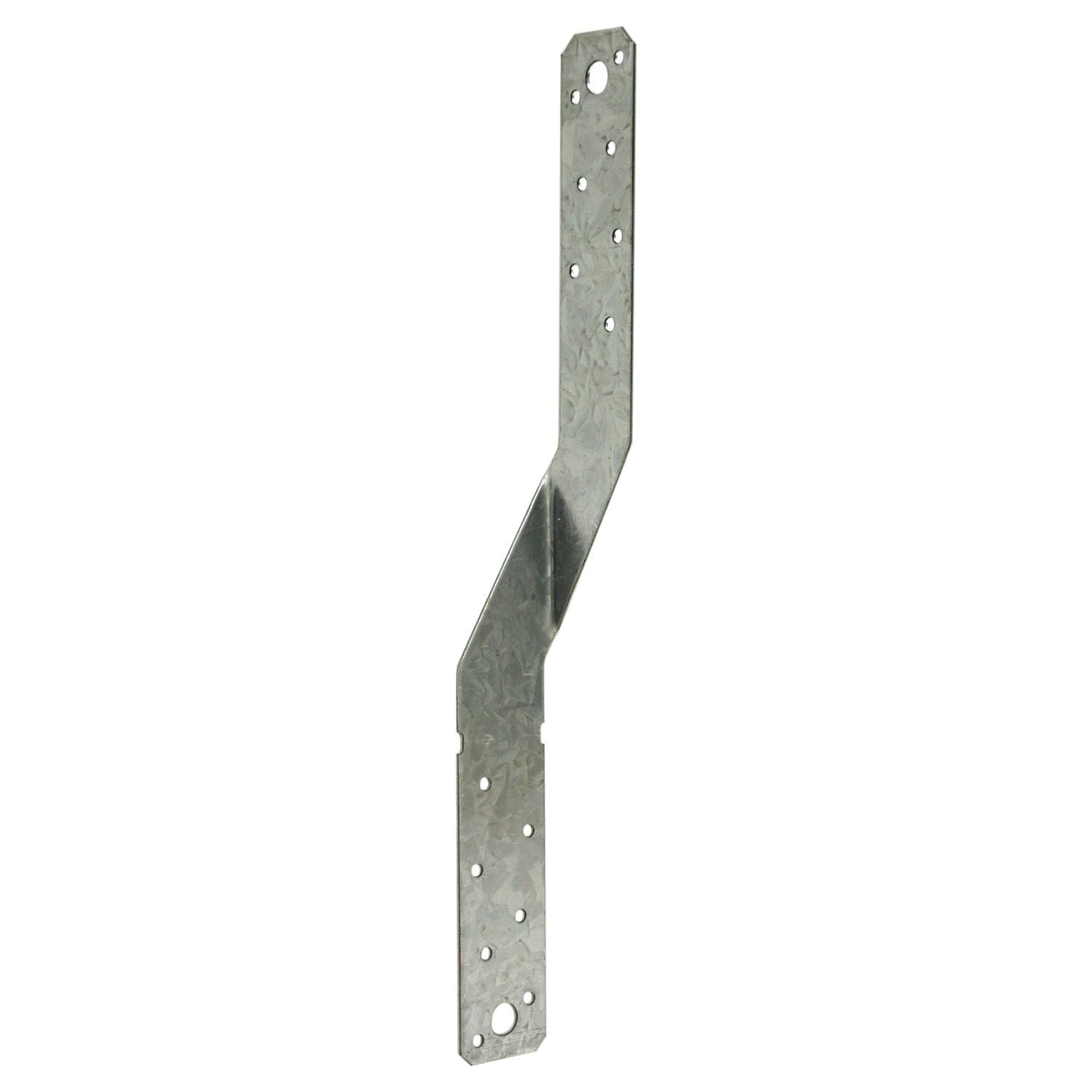

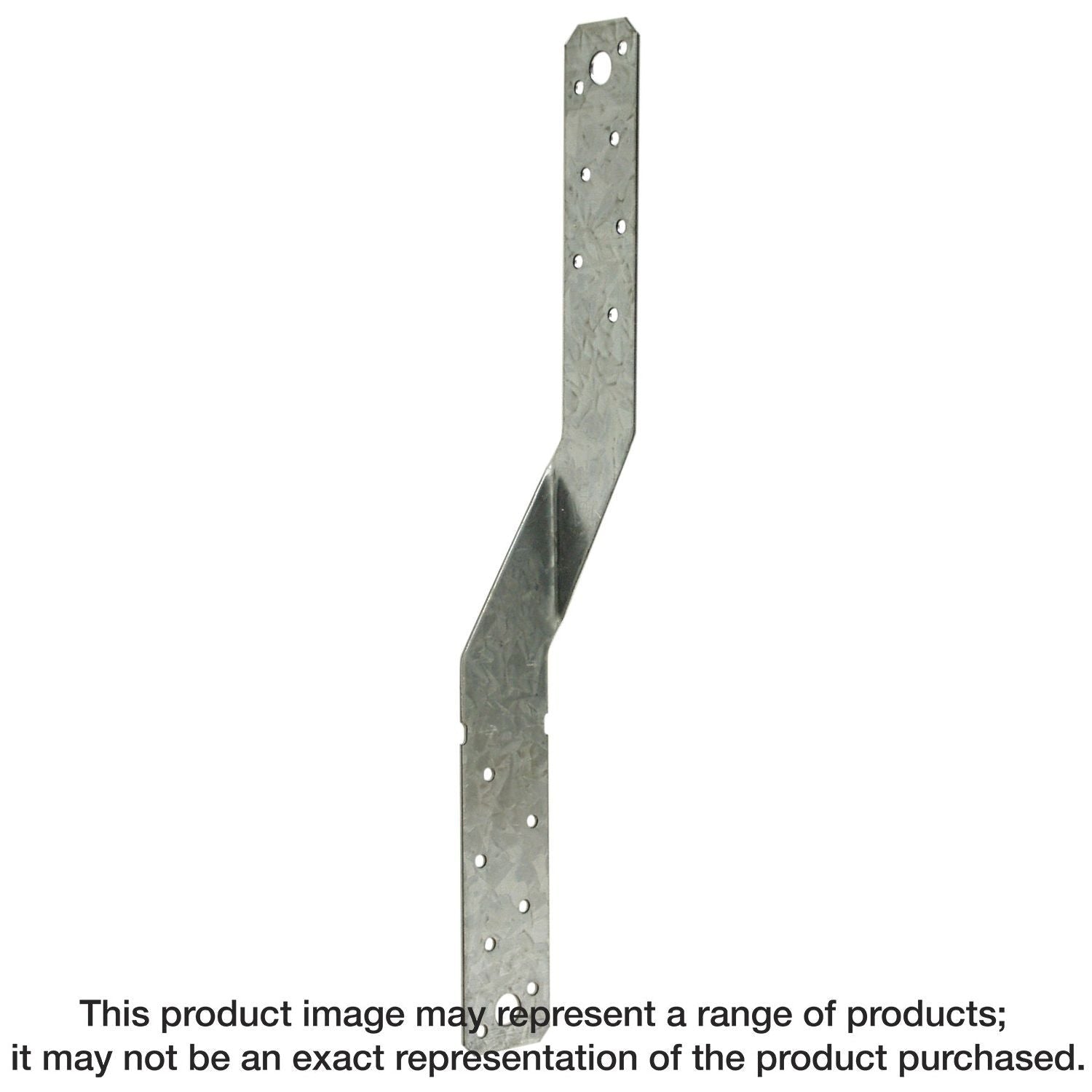

Simpson Strong-Tie MTS12Z MTS 12-in. 16-Gauge ZMAX Galvanized Medium Twist Strap

• Available with the bend reversed
• Straps do not need to be wrapped over the truss to achieve the allowable load
• Versatile with many lengths offered to fit the specific application
• Length: 12 in.
• Made from 16-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

The MTS provides a tension connection between two members. These economical twist straps resist moderate uplift loads at the rafter or heel of a truss. MTS have a 2-in. bend section that reduces interference at the transition points between the two members.

• Available with the bend reversed
• Straps do not need to be wrapped over the truss to achieve the allowable load
• Versatile with many lengths offered to fit the specific application
• Length: 12 in.
• Made from 16-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Install With: Install with 10d common nails, 10d x 1-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive SD screws
