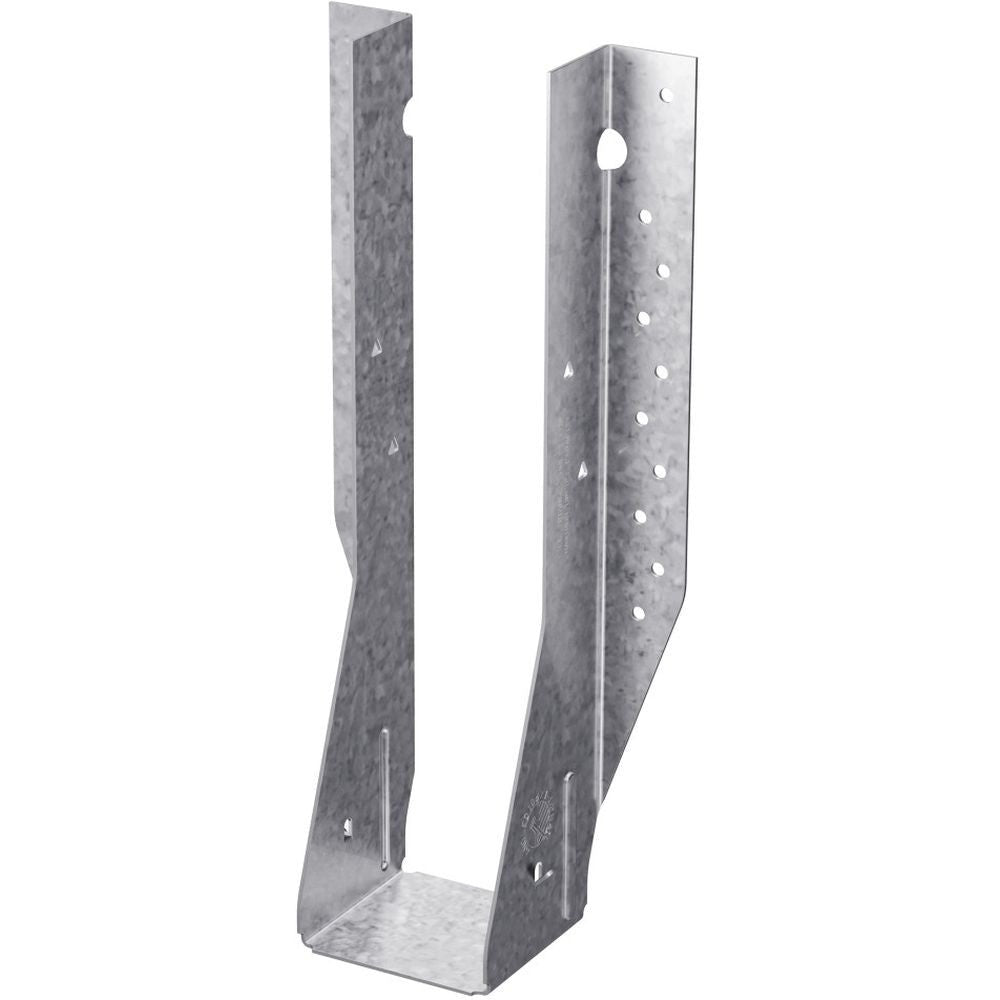

Simpson Strong-Tie MIU2.56/11 MIU Galvanized Face-Mount Joist Hanger for 2-1/2-in. x 11-7/8-in. Engineered Wood

• Extra optional triangle holes for additional load
• Models will normally accommodate a skew of up to 5°
• MIU-series hangers are tested, load rated and code compliant
• Actual joist size: 2-1/2 in. x 11-7/8 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

The MIU hanger is designed for commercial, high-load and double I-joist applications without requiring web stiffeners. The MIU features positive-angle nailing (PAN) which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. This face-mount hanger features speed prongs to temporarily position and secure the connector for easier and faster installation.

• Extra optional triangle holes for additional load
• Models will normally accommodate a skew of up to 5°
• MIU-series hangers are tested, load rated and code compliant
• Actual joist size: 2-1/2 in. x 11-7/8 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: Install with 0.162 in. x 3-1/2 in. nails in the face and 0.148 in. x 1-1/2 in. nails in the header
