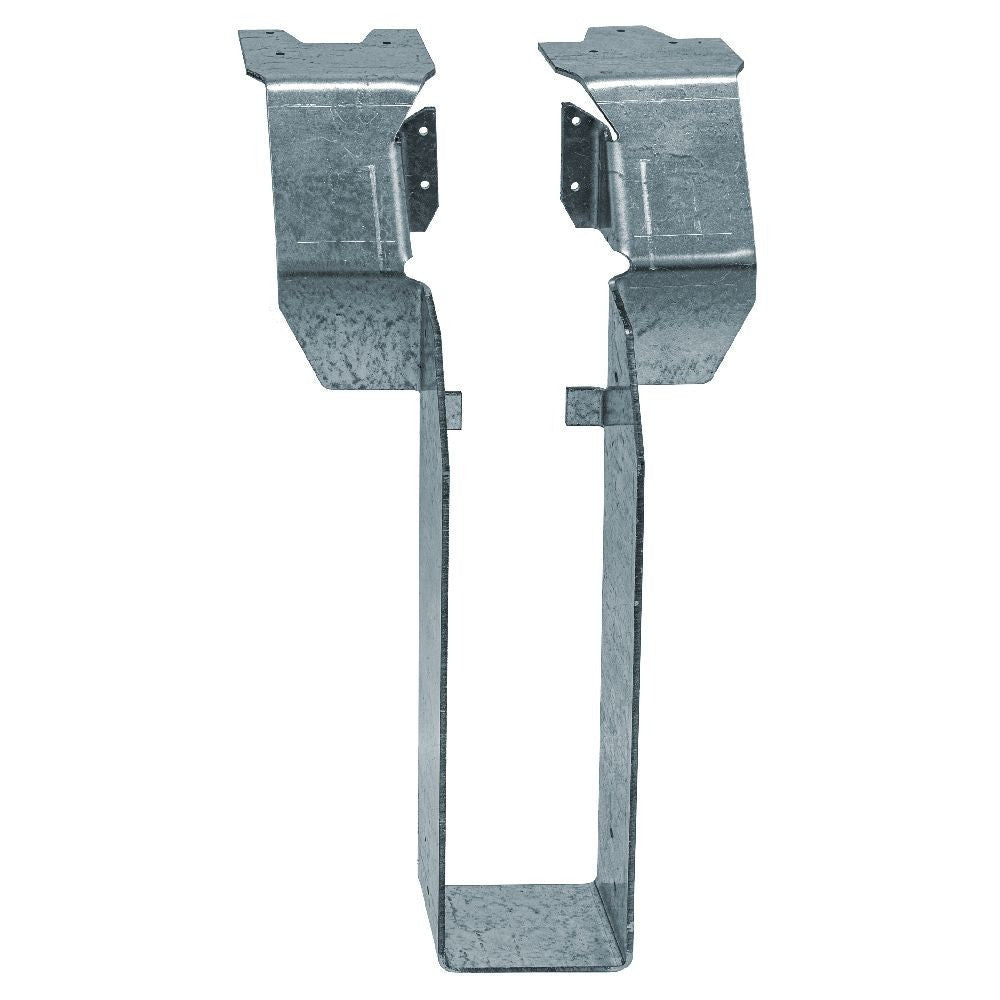

Simpson Strong-Tie MIU1.81/18 MIU Galvanized Face-Mount Joist Hanger for 1-3/4-in. x 18-in. Engineered Wood

• Positive-angle nailing minimizes splitting of the flanges while permitting time-saving nailing from a better angle
• These hangers cannot be modified
• Actual joist size: 1-3/4 in. x 18–20 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The MIU series hangers are designed for commercial and high-load I-joist applications without requiring web stiffeners.

• Positive-angle nailing minimizes splitting of the flanges while permitting time-saving nailing from a better angle
• These hangers cannot be modified
• Actual joist size: 1-3/4 in. x 18–20 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: Install with 0.162 in. x 3-1/2 in. nails in the face and 0.148 in. x 1-1/2 in. nails in the header
