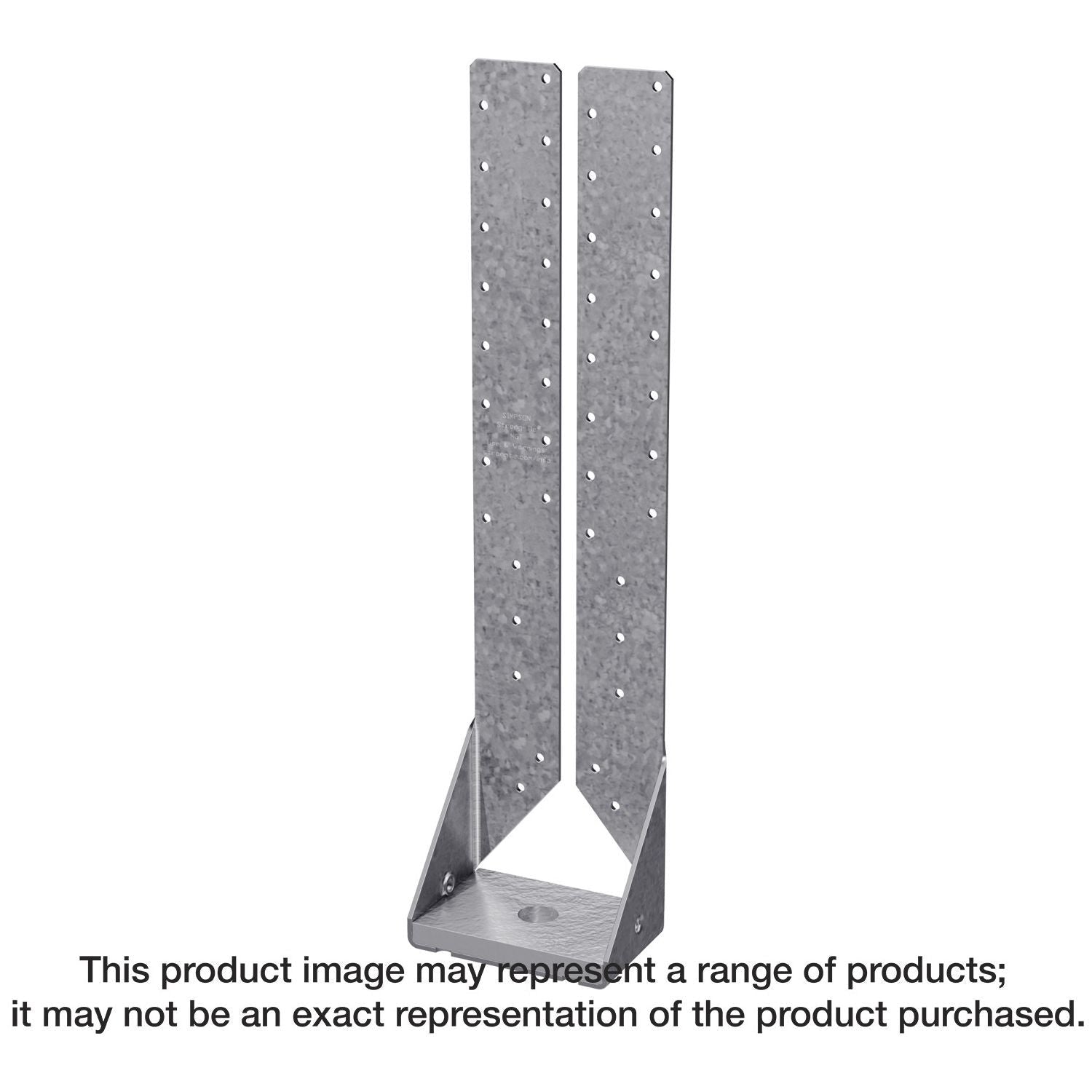

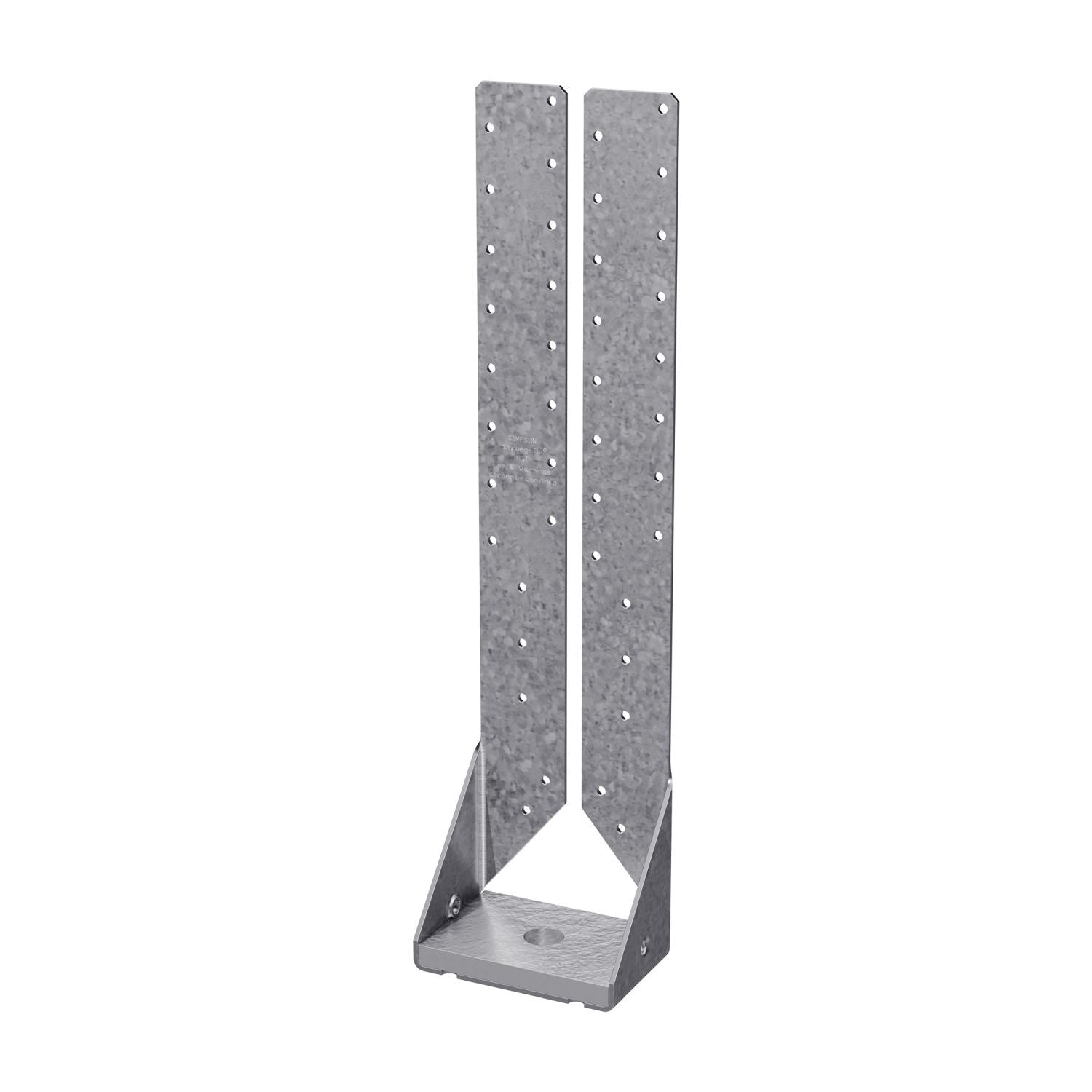

Simpson Strong-Tie MGT MGT 3-3/4-in. Galvanized Medium Girder Tie

• 2-ply minimum
• Attach to grouted concrete block with a minimum one #5 rebar horizontal in the top lintel block
• Width: 3-3/4 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance
• Install a minimum of (6) 10d nails into the face of roof member that is on same side as MGT base

The MGT is a connector designed for moderate-load, two-ply-minimum applications. This medium girder tiedown allows flexible installation, with options to install the straps either vertically or wrapped over the top of the multi-ply truss. The MGT can be bolted down into place directly into CMU or in combination with a holdown.

• 2-ply minimum
• Attach to grouted concrete block with a minimum one #5 rebar horizontal in the top lintel block
• Width: 3-3/4 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance
• Install a minimum of (6) 10d nails into the face of roof member that is on same side as MGT base

Install With: Install with 5/8 in. anchor and 10d common nails
