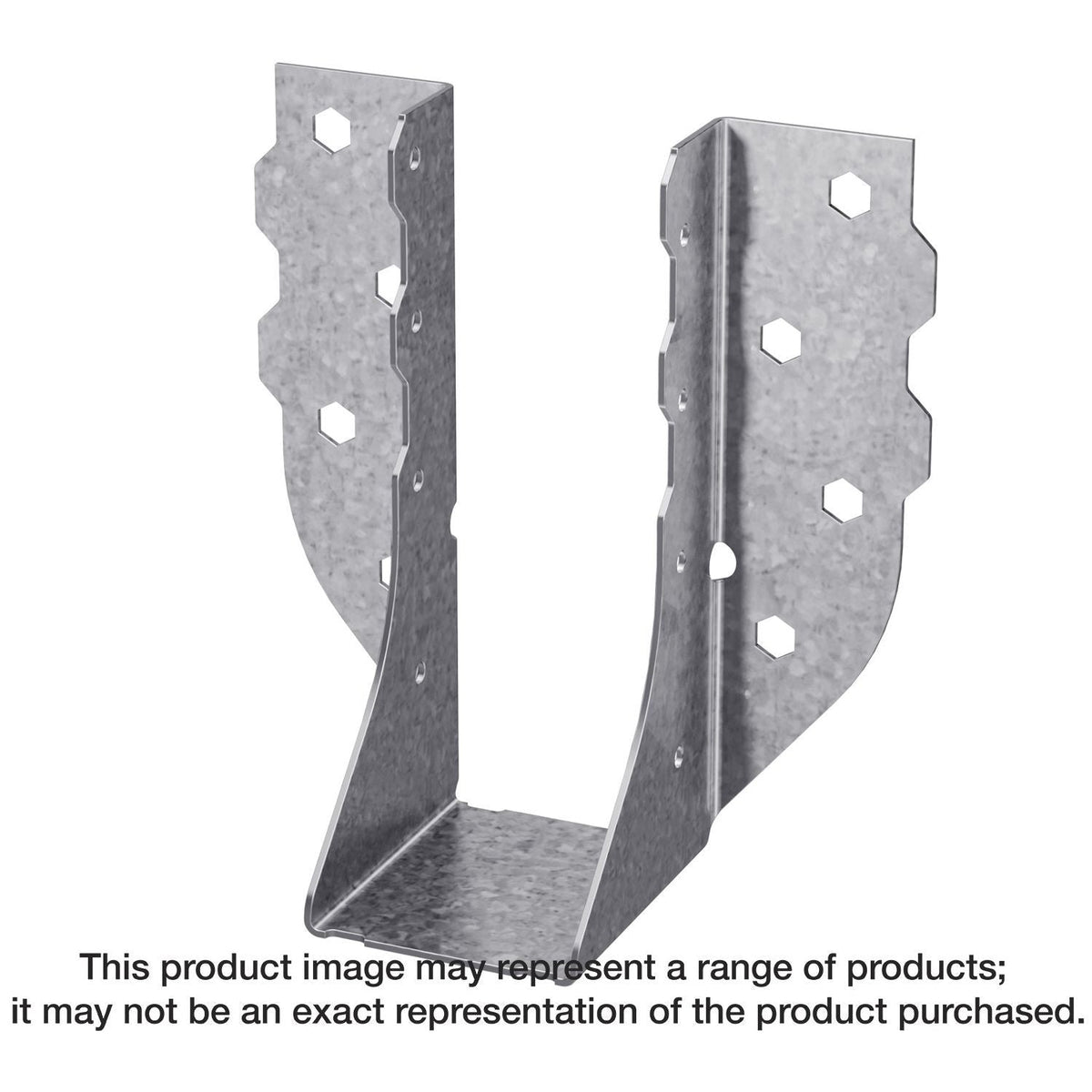

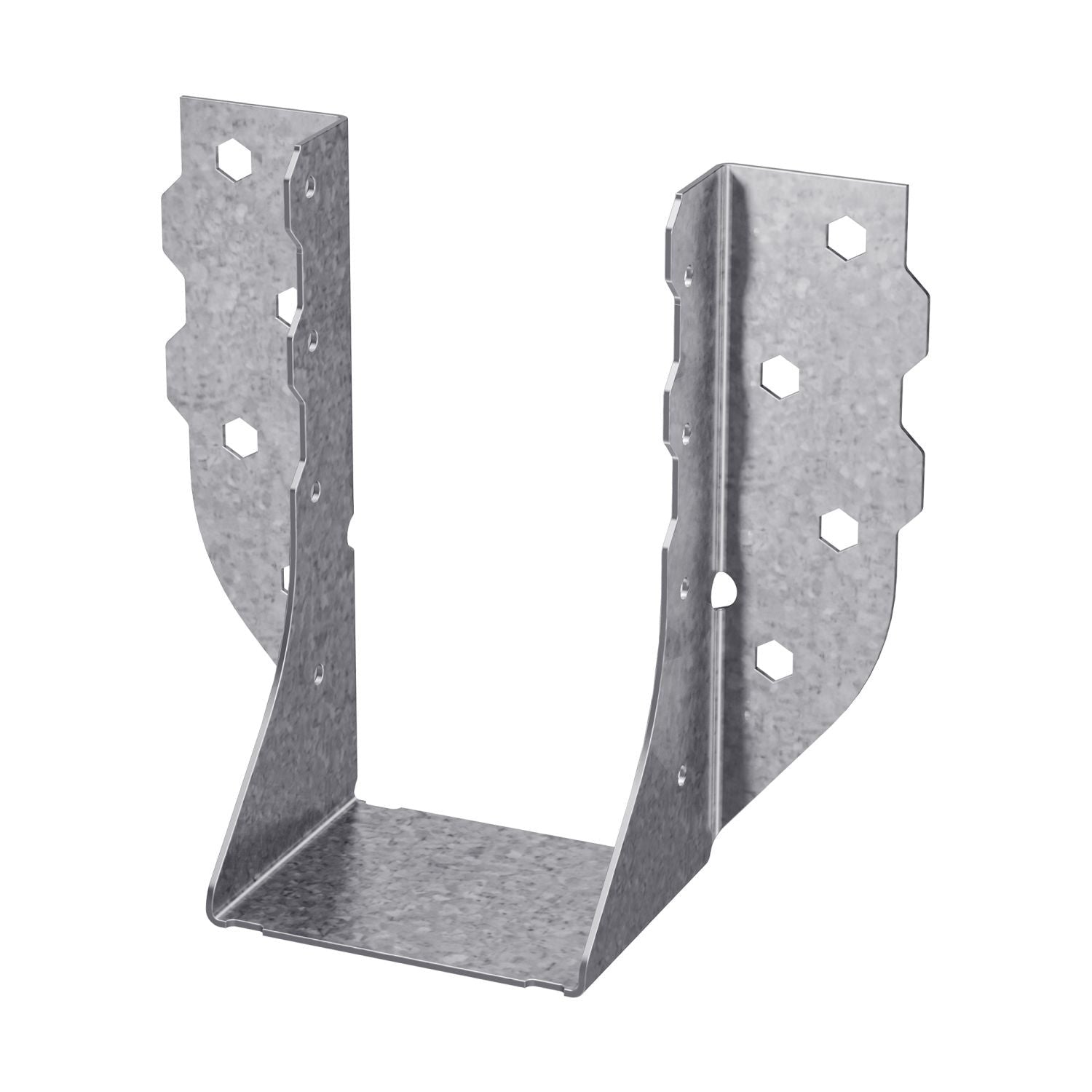

Simpson Strong-Tie LGUM210-3-SDS LGUM High-Capacity Girder Hanger for Masonry for Triple 2x10 with Screws/Anchors

• Attach hanger to a concrete or grouted CMU wall using Titen HD anchors
• Titen HD is not recommended for exposed exterior applications
• Provide moisture barrier between beam and wall per jurisdictional requirements
• Seat width: 4-15/16 in.
• Height: 9-1/4 in.
• Nominal joist size: Triple 2x10
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. LGUM high-capacity beam or girder hangers are for concrete or masonry applications. Installation is made easier using Simpson Strong-Tie Strong-Drive SDS screws (provided) into the wood member and Titen HD anchors (provided) into the masonry.

• Attach hanger to a concrete or grouted CMU wall using Titen HD anchors
• Titen HD is not recommended for exposed exterior applications
• Provide moisture barrier between beam and wall per jurisdictional requirements
• Seat width: 4-15/16 in.
• Height: 9-1/4 in.
• Nominal joist size: Triple 2x10
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: Install with Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors (included)
