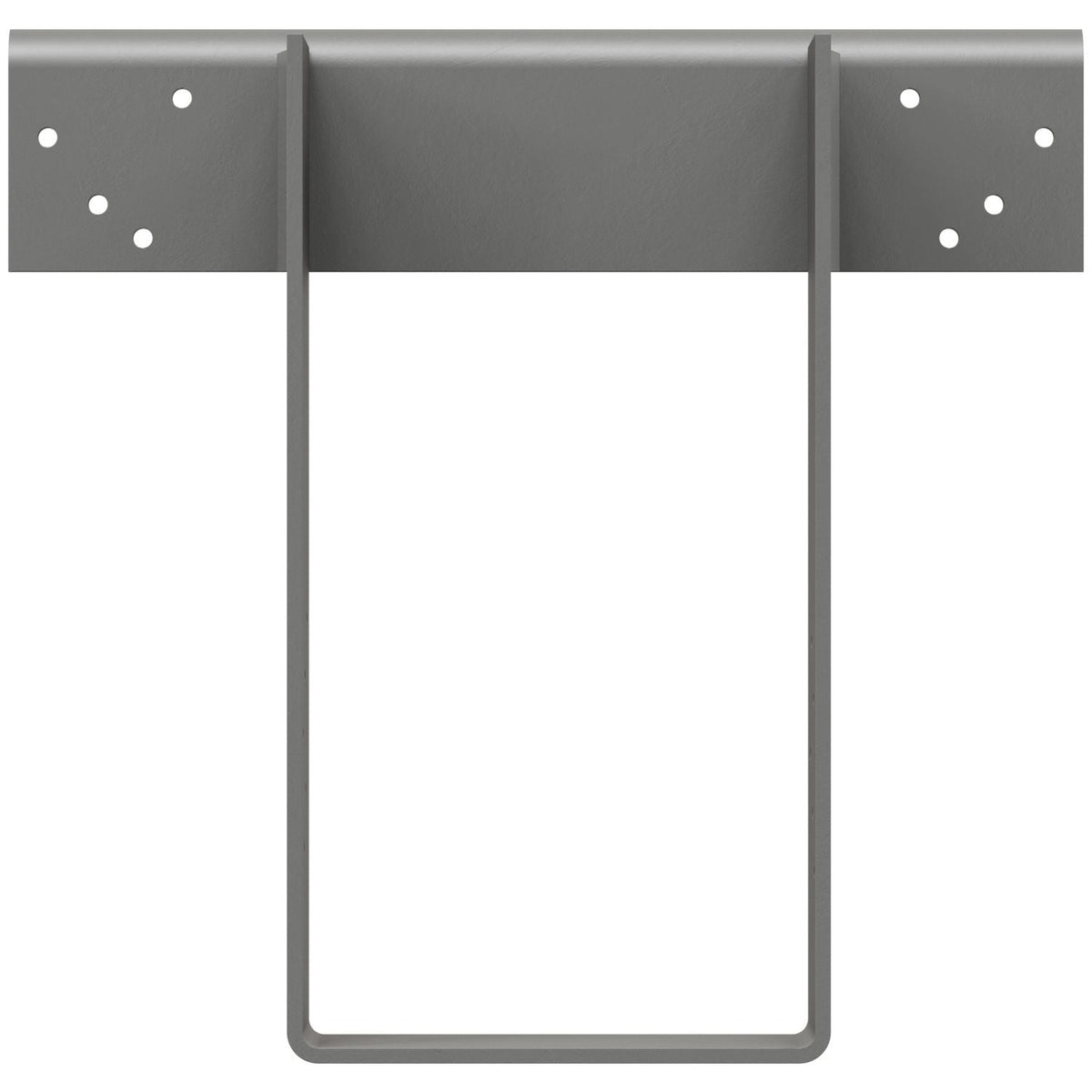

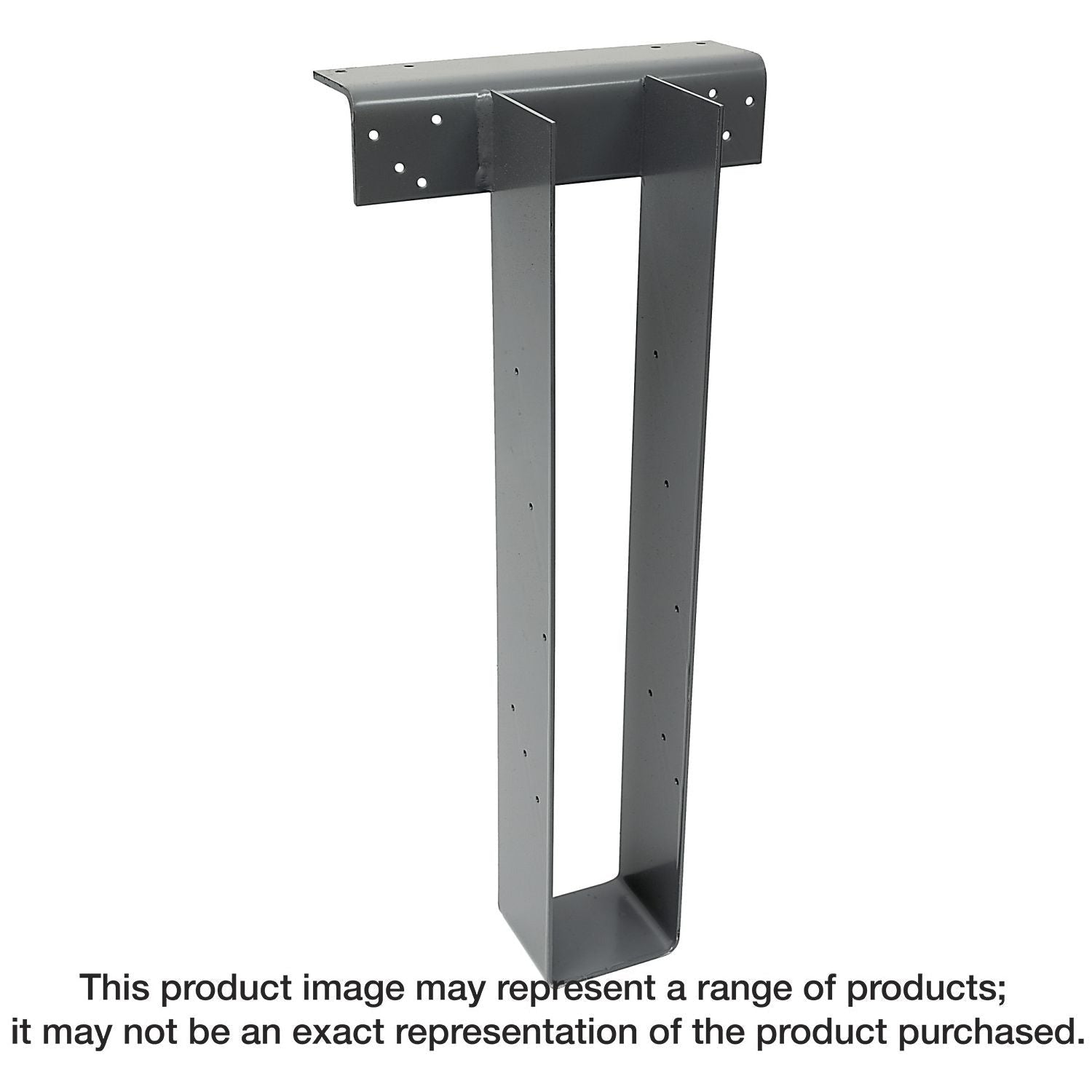

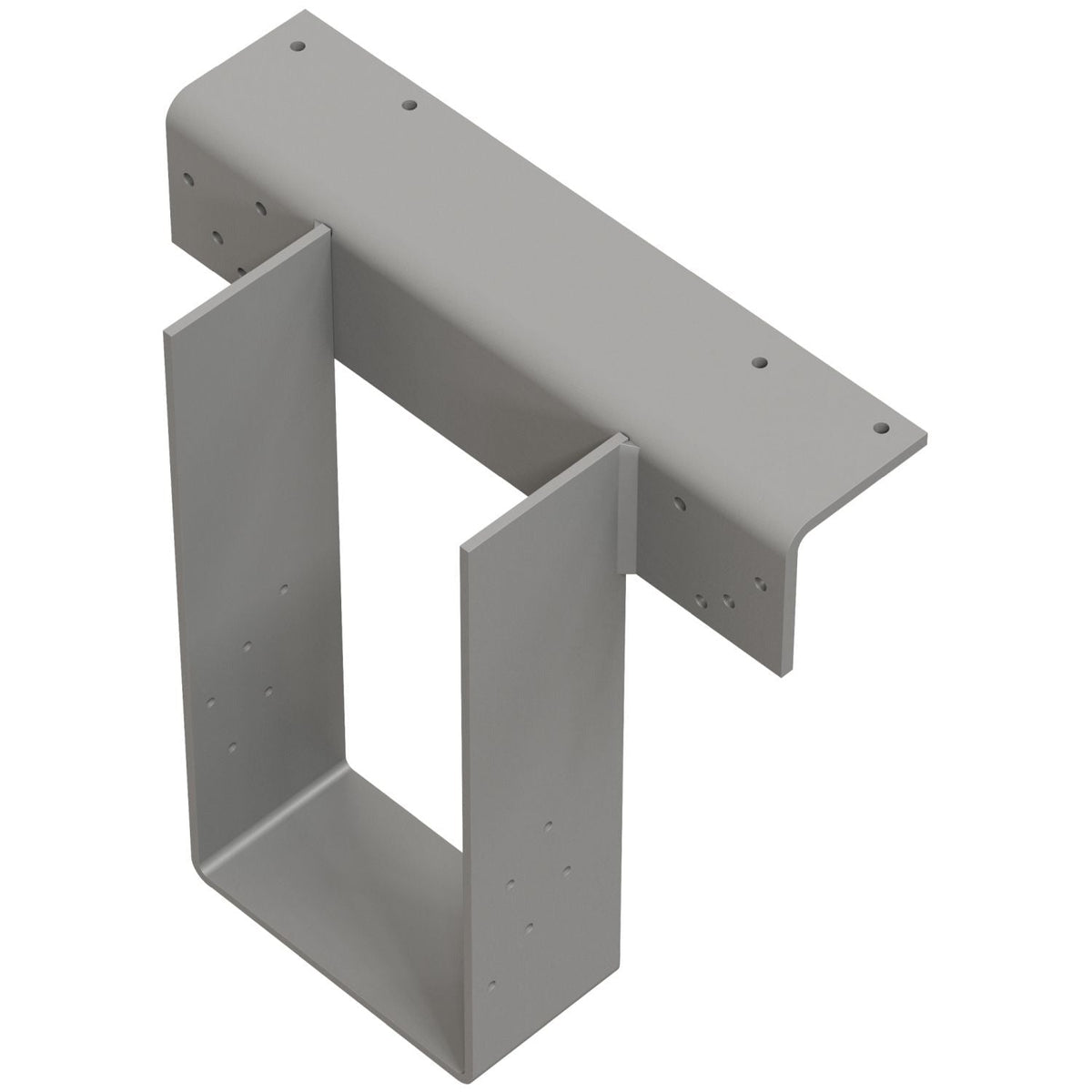

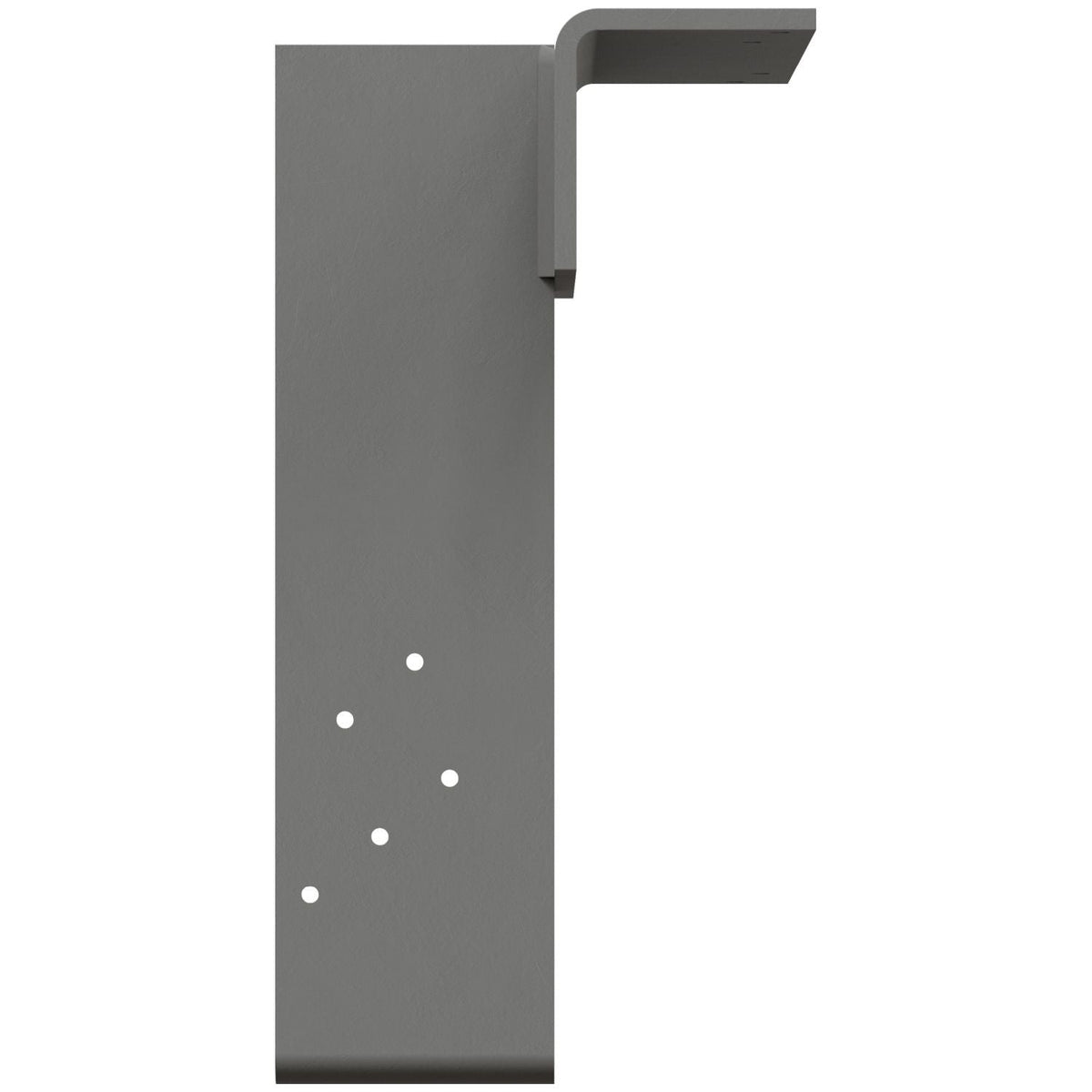

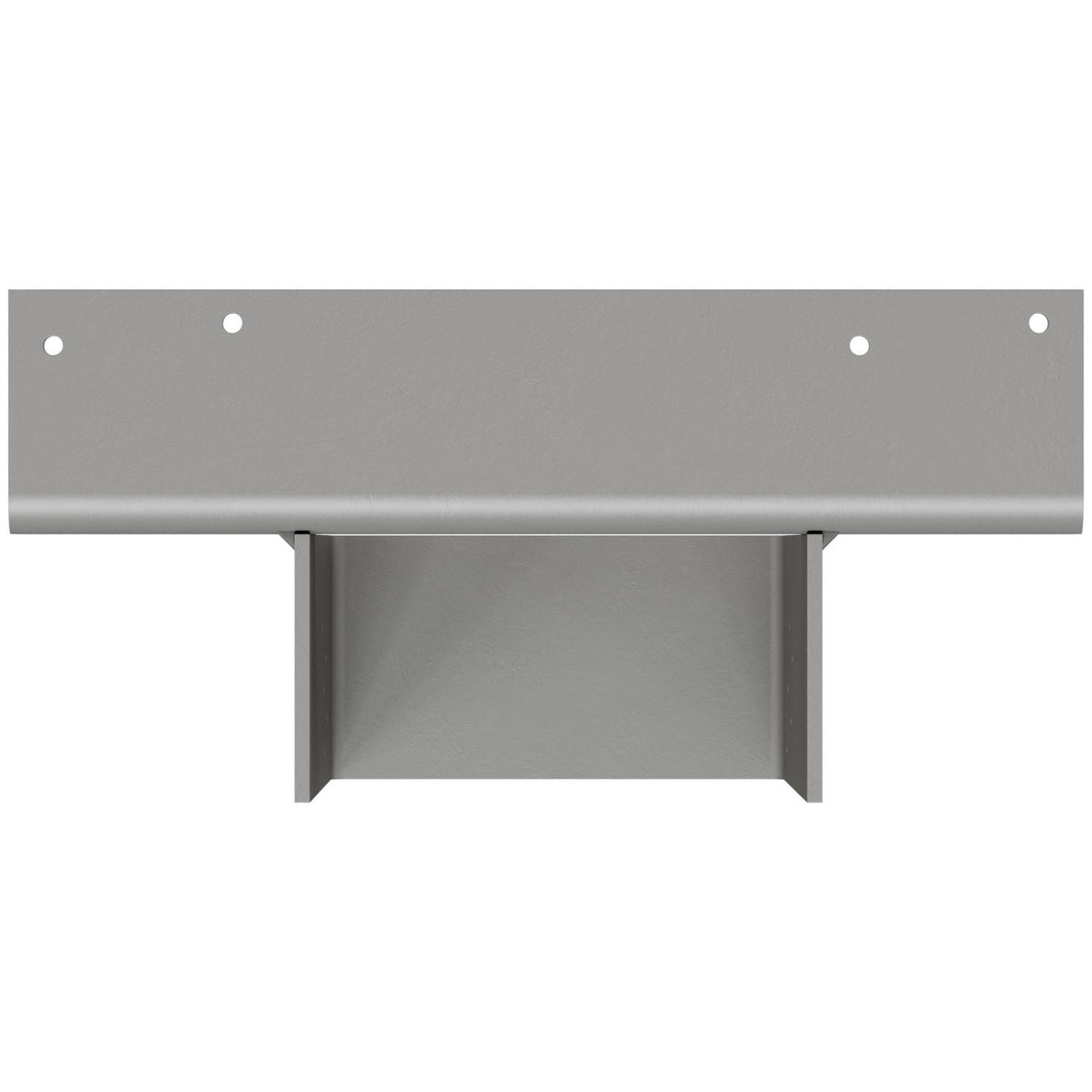

Simpson Strong-Tie HWPH612 HWPH High-Wind Purlin Heavy Hanger for 6x12

• Features a solid one-piece top flange that provides extra stability in panelized roof applications
• The HWPH may be used for weld-on applications
• Sized for 6x12 nominal lumber
• Seat width: 5-1/2 in.
• Top flange made from 3 ga. steel; stirrup 7 ga. steel
• Simpson Strong-Tie gray paint finish

The Simpson Strong-Tie HWPH hanger is designed to support joists on purlins or beams in both wood and cold-formed steel construction. This heavy top-flange hanger has enhanced uplift and is ideal for high-wind applications. The HWPH offers design flexibility and versatility that provides very high uplifts and down loads.

• Features a solid one-piece top flange that provides extra stability in panelized roof applications
• The HWPH may be used for weld-on applications
• Sized for 6x12 nominal lumber
• Seat width: 5-1/2 in.
• Top flange made from 3 ga. steel; stirrup 7 ga. steel
• Simpson Strong-Tie gray paint finish

Install With: Install with (12) 0.162 x 3-1/2 in. nails in the header and (10) 0.148 x 1-1/2 in. nails in the joist
