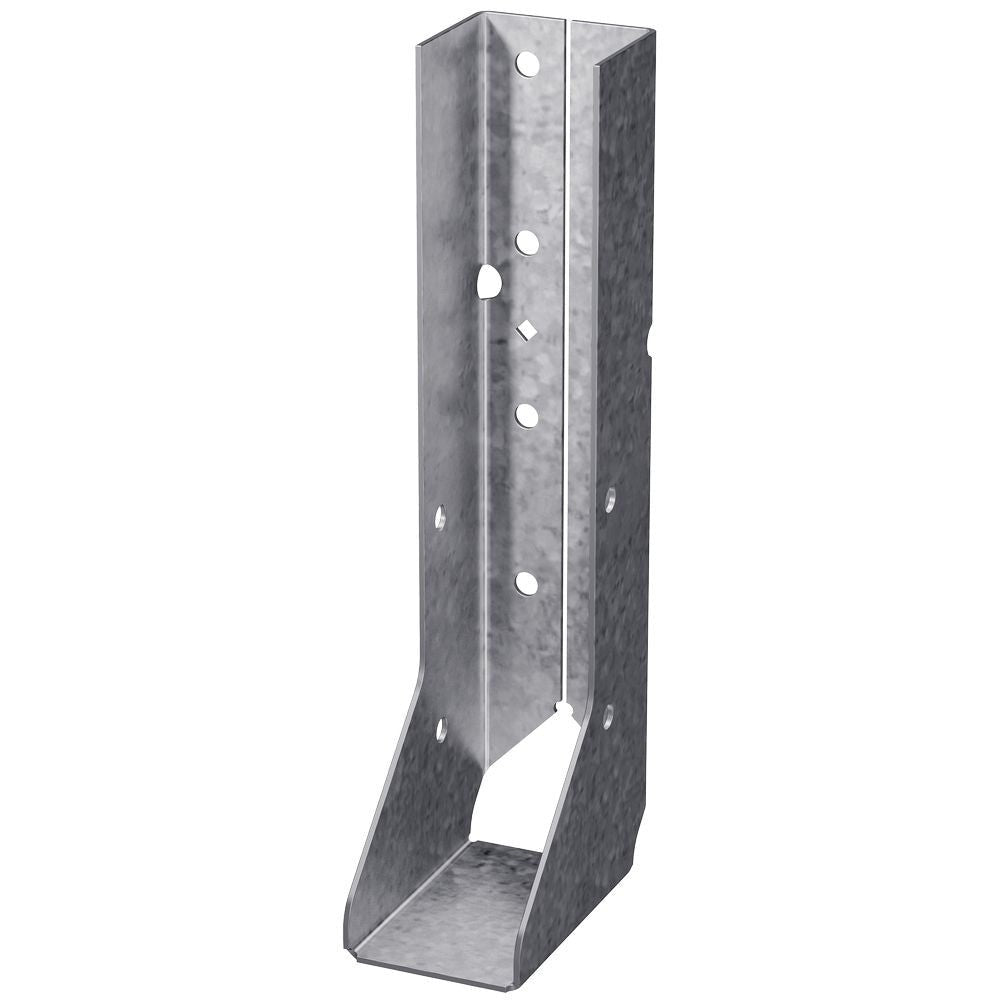

Simpson Strong-Tie HUCQ1.81/9-SDS HUCQ Heavy Face-Mount Concealed-Flange Joist Hanger for 1-3/4-in. x 9-1/2-in. Engr. Wood w/ Screws

• Concealed flanges provide cleaner lines for exposed conditions
• HUCQ-series hangers are tested, load rated and code compliant
• Strong-Drive SDS Heavy-Duty Connector screws are included
• Install wood joists to wood, masonry and concrete
• Seat width: 1-13/16 in.
• Joist size: 1-3/4 in. x 9-1/2 in.
• Made from 14-gauge steel
• Galvanized (G90) for corrosion resistance

The HUCQ is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges and can be installed close to the end of the supporting beam. These heavy-duty hangers install with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws for high capacity with no predrilling for ease of installation.

• Concealed flanges provide cleaner lines for exposed conditions
• HUCQ-series hangers are tested, load rated and code compliant
• Strong-Drive SDS Heavy-Duty Connector screws are included
• Install wood joists to wood, masonry and concrete
• Seat width: 1-13/16 in.
• Joist size: 1-3/4 in. x 9-1/2 in.
• Made from 14-gauge steel
• Galvanized (G90) for corrosion resistance

Install With: Install with (8) 1/4 in. x 1-3/4 in. SDS screws in the header and (4) 1/4 in. x 1-3/4 in. SDS screws in the joist (screws included)
