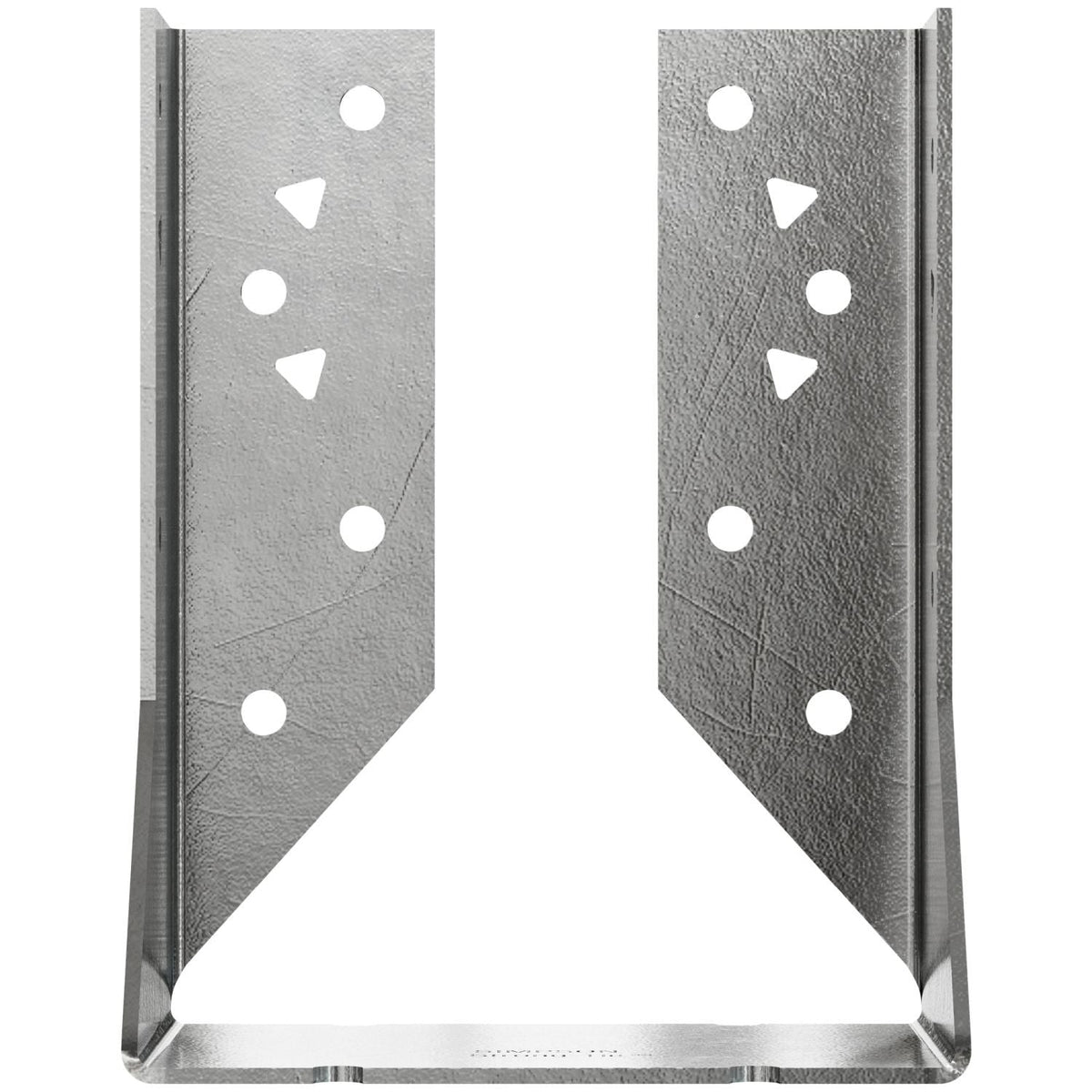

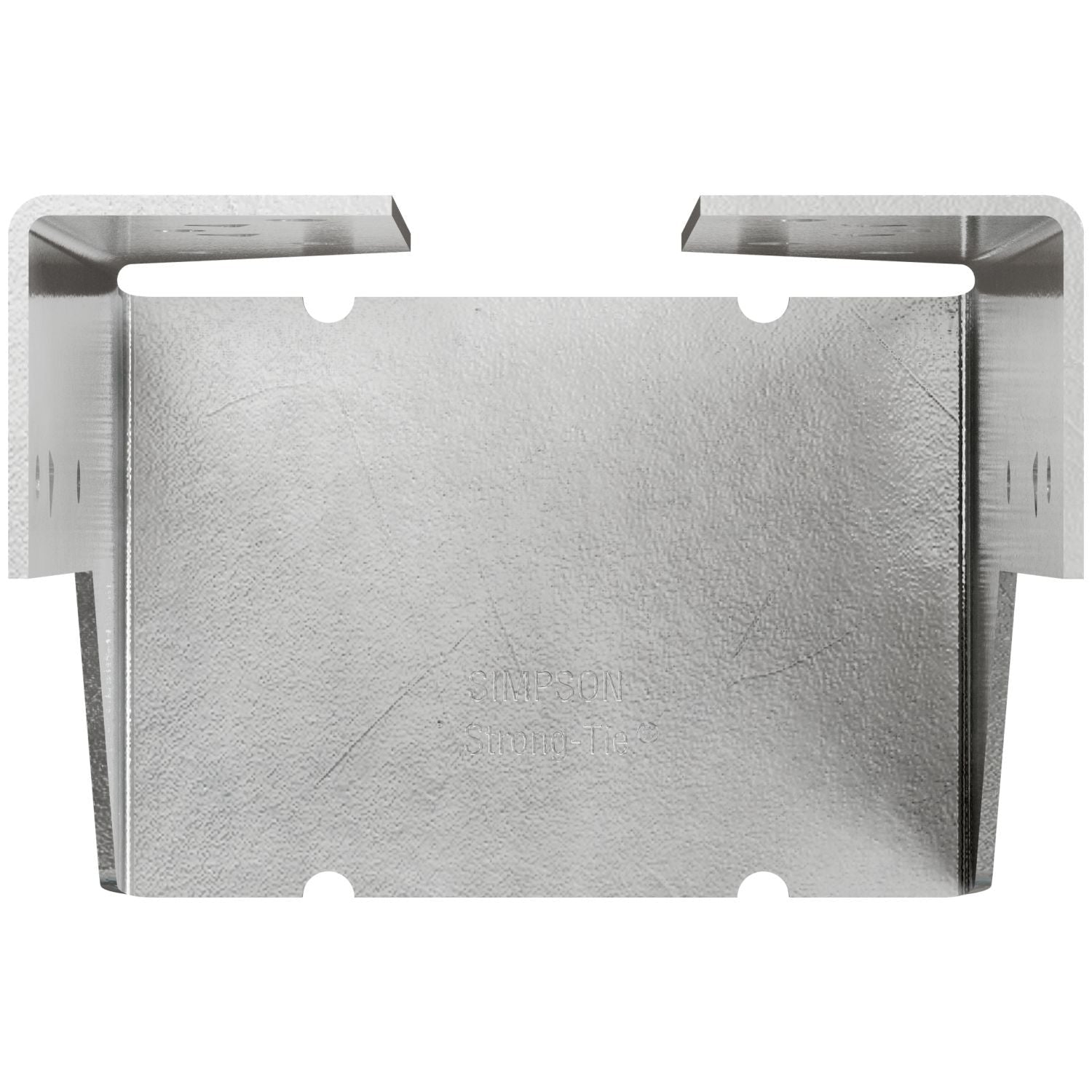

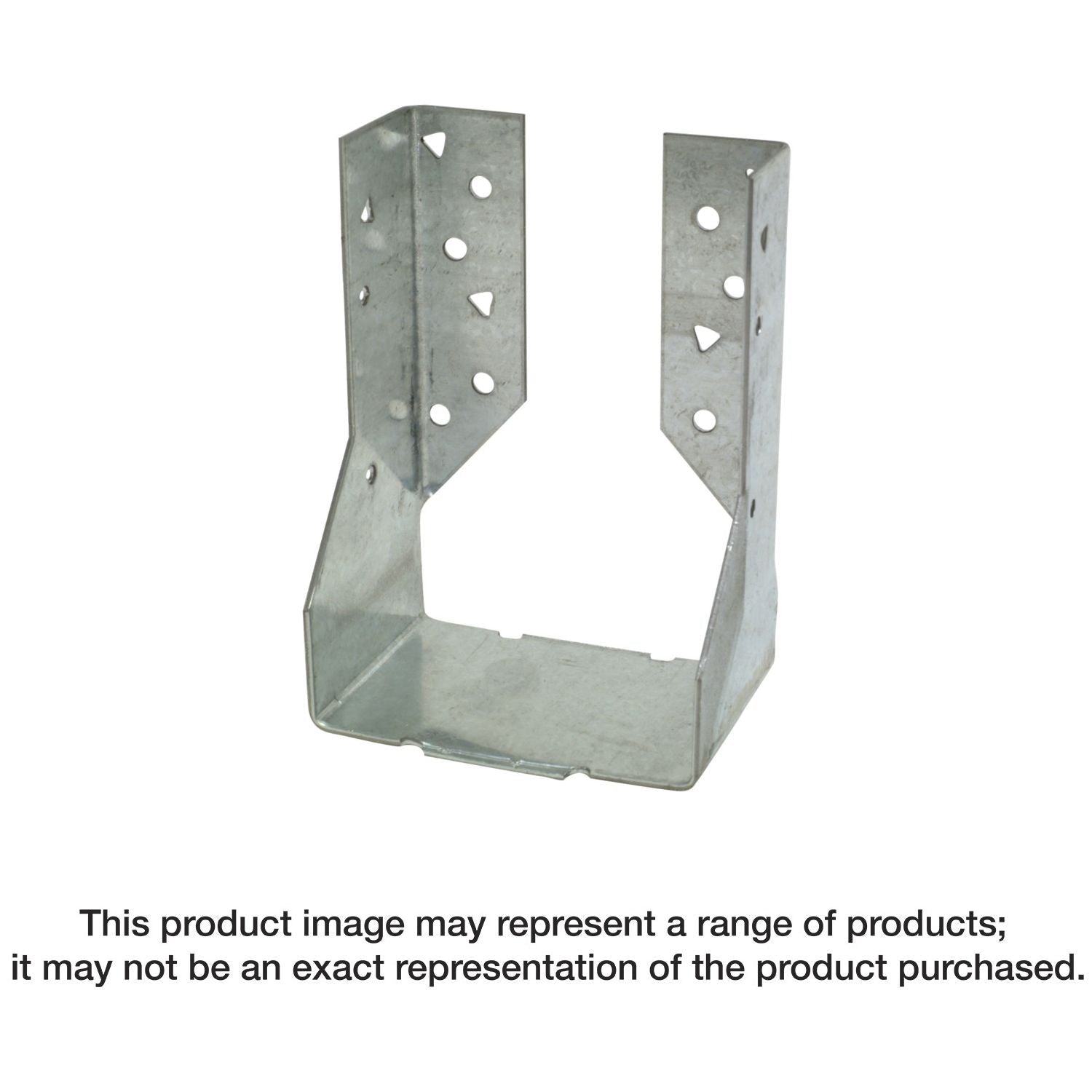

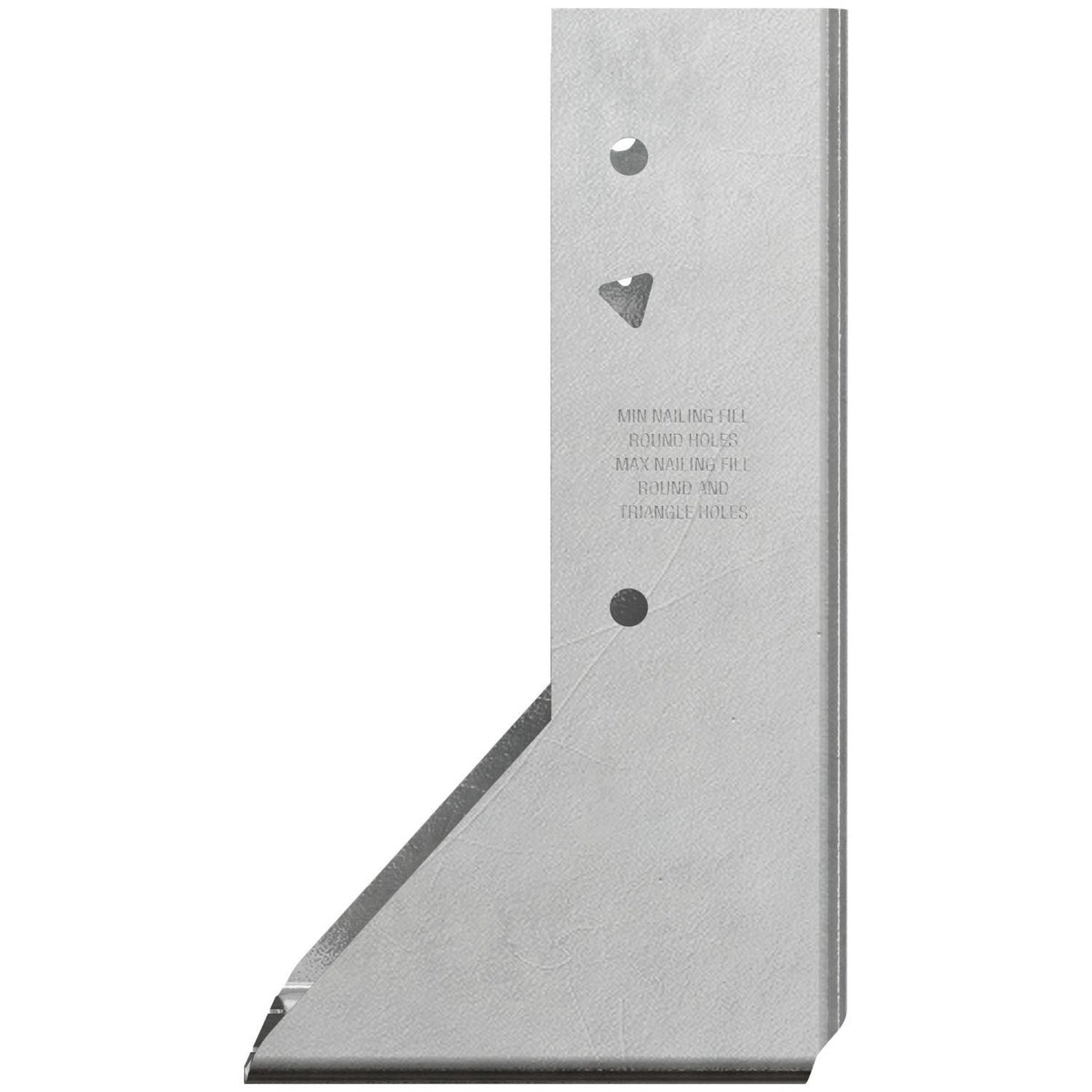

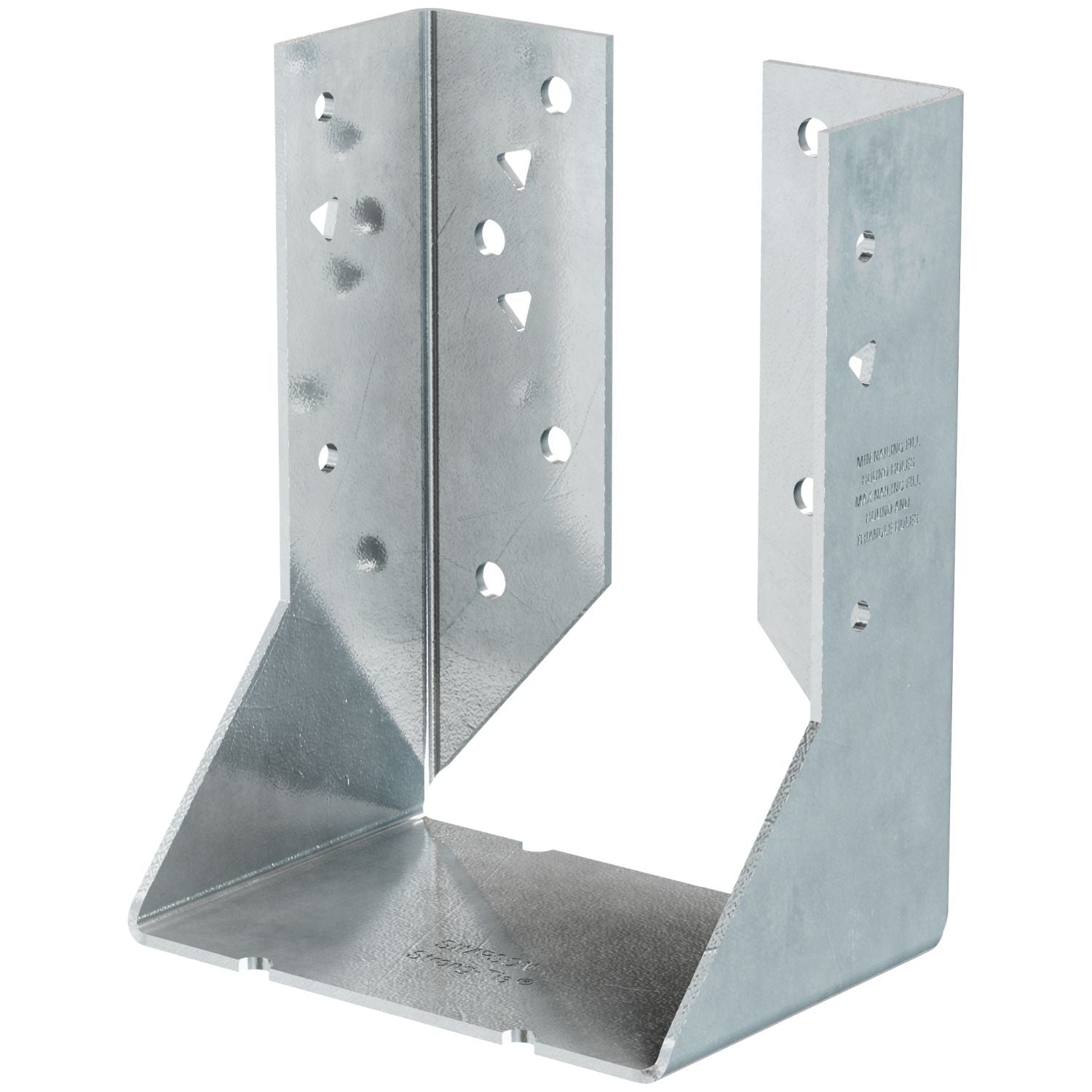

Simpson Strong-Tie HUC46SS HUC Stainless-Steel Face-Mount Concealed-Flange Joist Hanger for 4x6

• Extra optional triangle holes for additional load
• HUC-series hangers are tested, load rated and code compliant
• Install wood joists to wood, masonry and concrete
• Seat width: 3-9/16 in.
• Nominal joist size: 4x6
• Made from 14-gauge steel
• Stainless steel offers extra corrosion resistance for exterior and treated-wood applications

The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.

• Extra optional triangle holes for additional load
• HUC-series hangers are tested, load rated and code compliant
• Install wood joists to wood, masonry and concrete
• Seat width: 3-9/16 in.
• Nominal joist size: 4x6
• Made from 14-gauge steel
• Stainless steel offers extra corrosion resistance for exterior and treated-wood applications

Install With: (8-12) 0.162 in. x 3-1/2 in. ring-shank nails in the header and (4-6) 0.148 in. x 3 in. ring-shank nails in the joist; stainless-steel fasteners required
