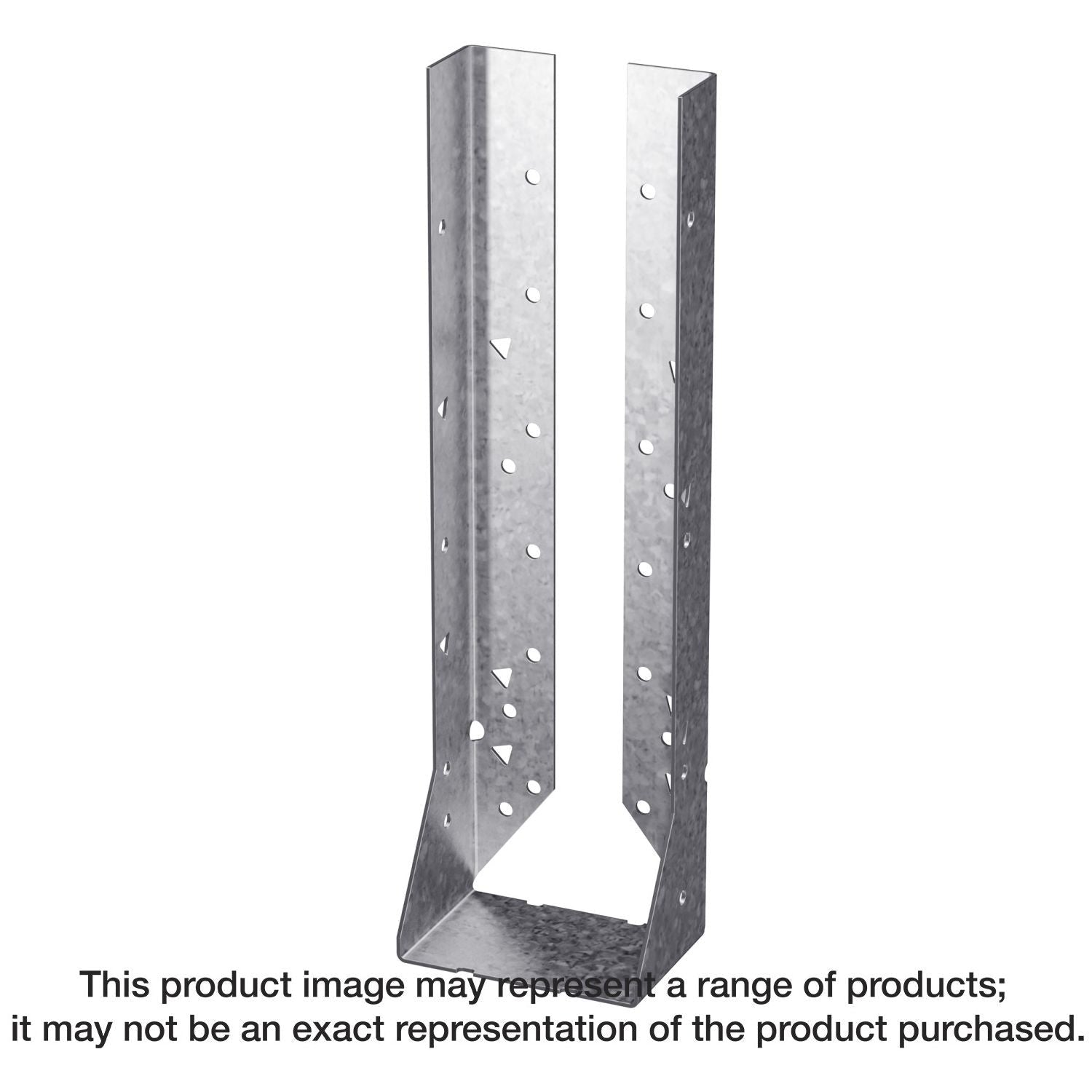

Simpson Strong-Tie HUC3511 HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for 2-5/16-in. x 11-7/8-in. I-Joist

• Extra optional triangle holes for additional load
• HUC-series hangers are tested, load rated and code compliant
• Install wood joists to wood, masonry and concrete
• Actual joist size: 2-5/16 in. x 11-7/8 in.
• Seat width: 2-3/8 in.
• Height: 10-15/16 in.
• Made from 14-gauge steel
• Galvanized (G90) for extra corrosion resistance

The Simpson Strong-Tie HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.

• Extra optional triangle holes for additional load
• HUC-series hangers are tested, load rated and code compliant
• Install wood joists to wood, masonry and concrete
• Actual joist size: 2-5/16 in. x 11-7/8 in.
• Seat width: 2-3/8 in.
• Height: 10-15/16 in.
• Made from 14-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist
