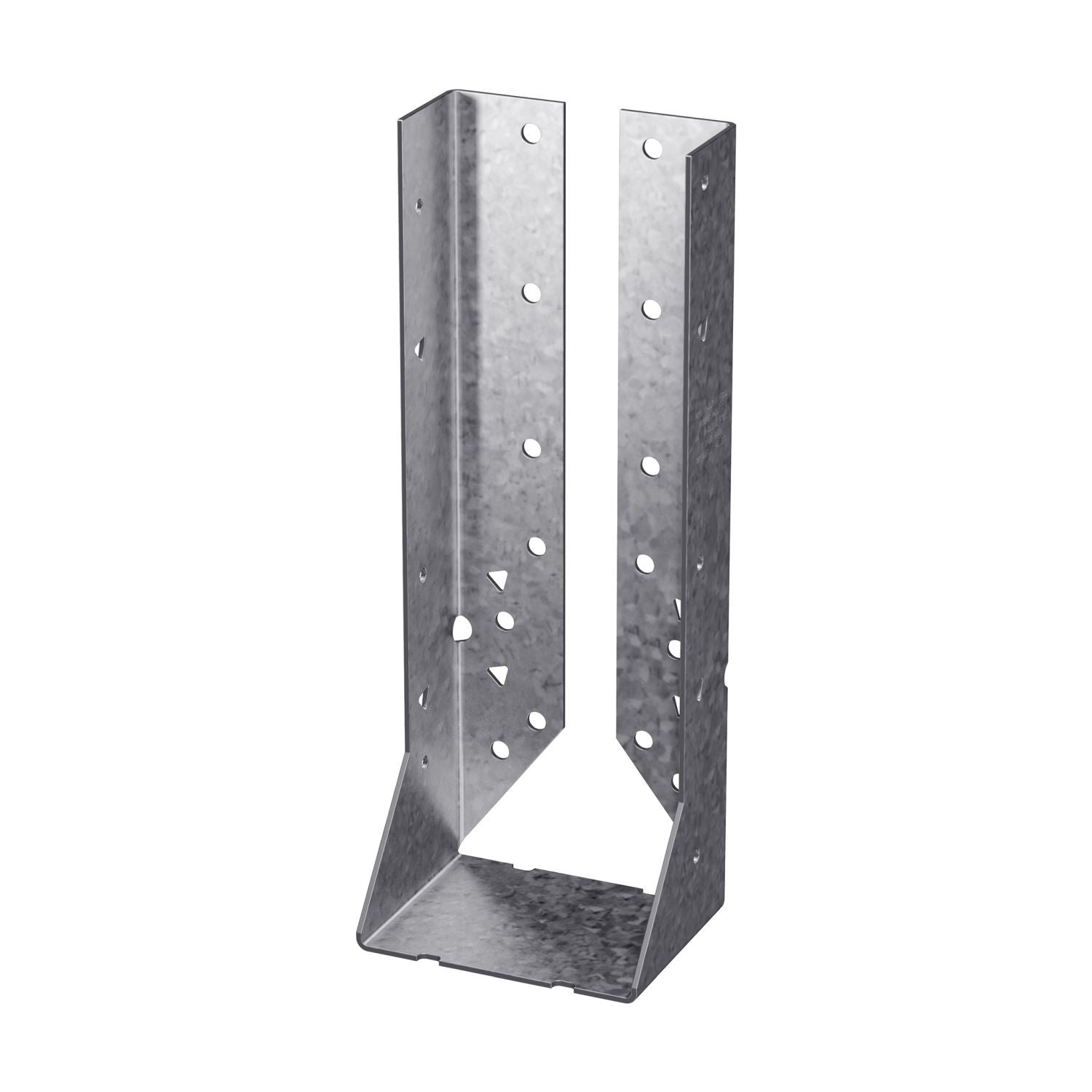

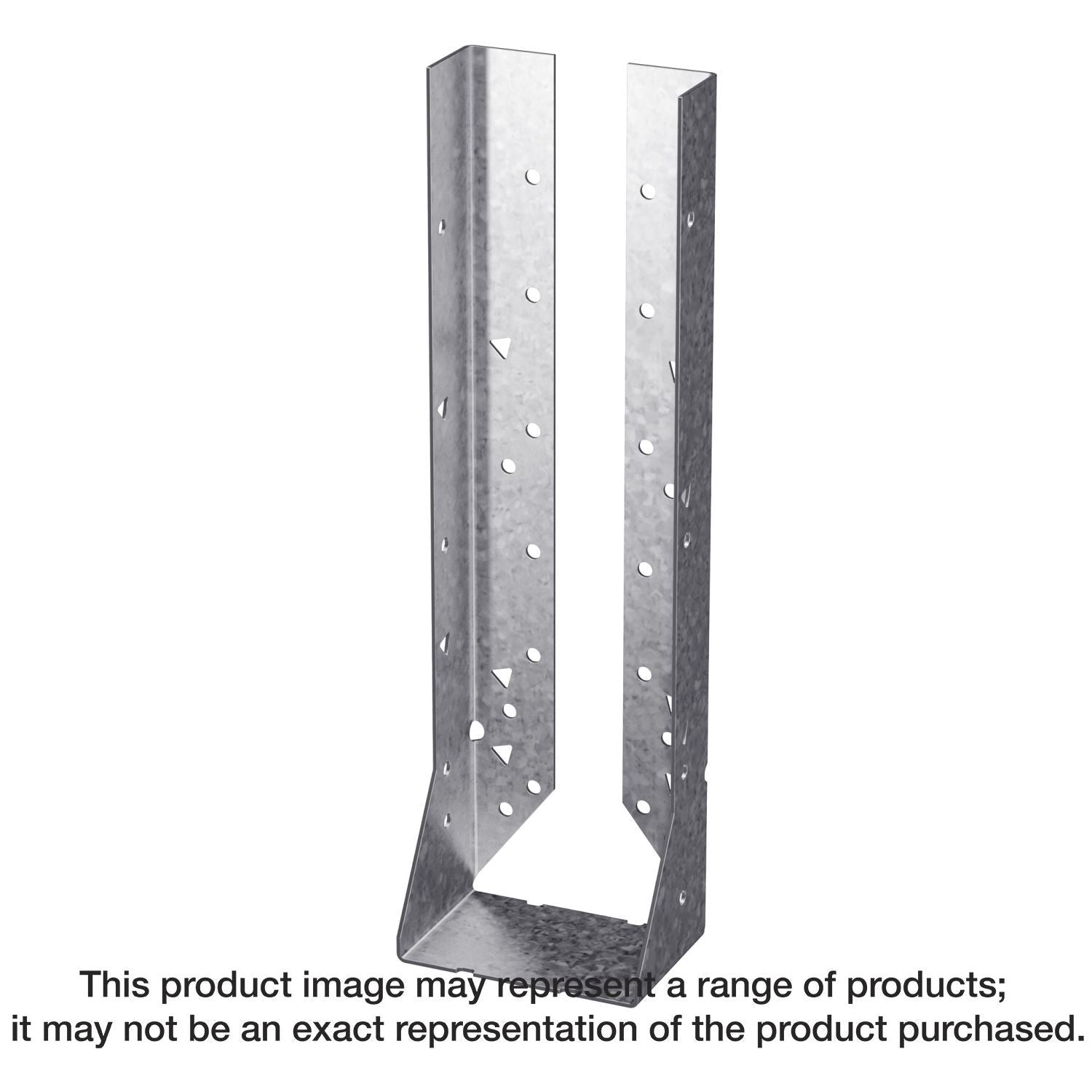

Simpson Strong-Tie HUC210-2 HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for Double 2x10

• Extra optional triangle holes for additional load
• HUC-series hangers are tested, load rated and code compliant
• Install wood joists to wood, masonry and concrete
• Seat width: 3-1/8 in.
• Nominal joist size: Double 2x10
• Made from 14-gauge steel
• Galvanized (G90) for extra corrosion resistance

The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.

• Extra optional triangle holes for additional load
• HUC-series hangers are tested, load rated and code compliant
• Install wood joists to wood, masonry and concrete
• Seat width: 3-1/8 in.
• Nominal joist size: Double 2x10
• Made from 14-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: (14-18) 0.162 in. x 3-1/2 in. nails in the header and (6-10) 0.148 in. x 3 in. nails in the joist
