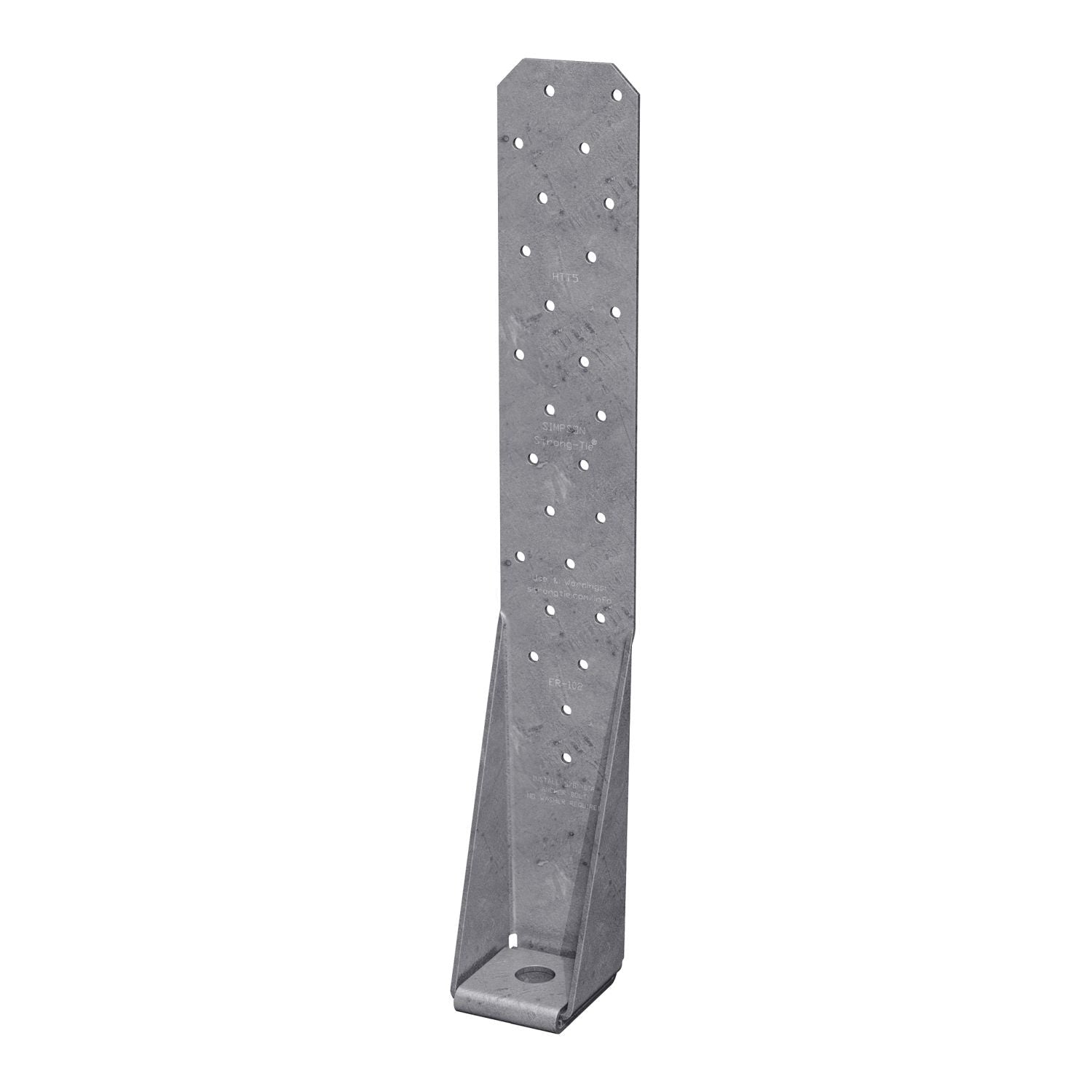

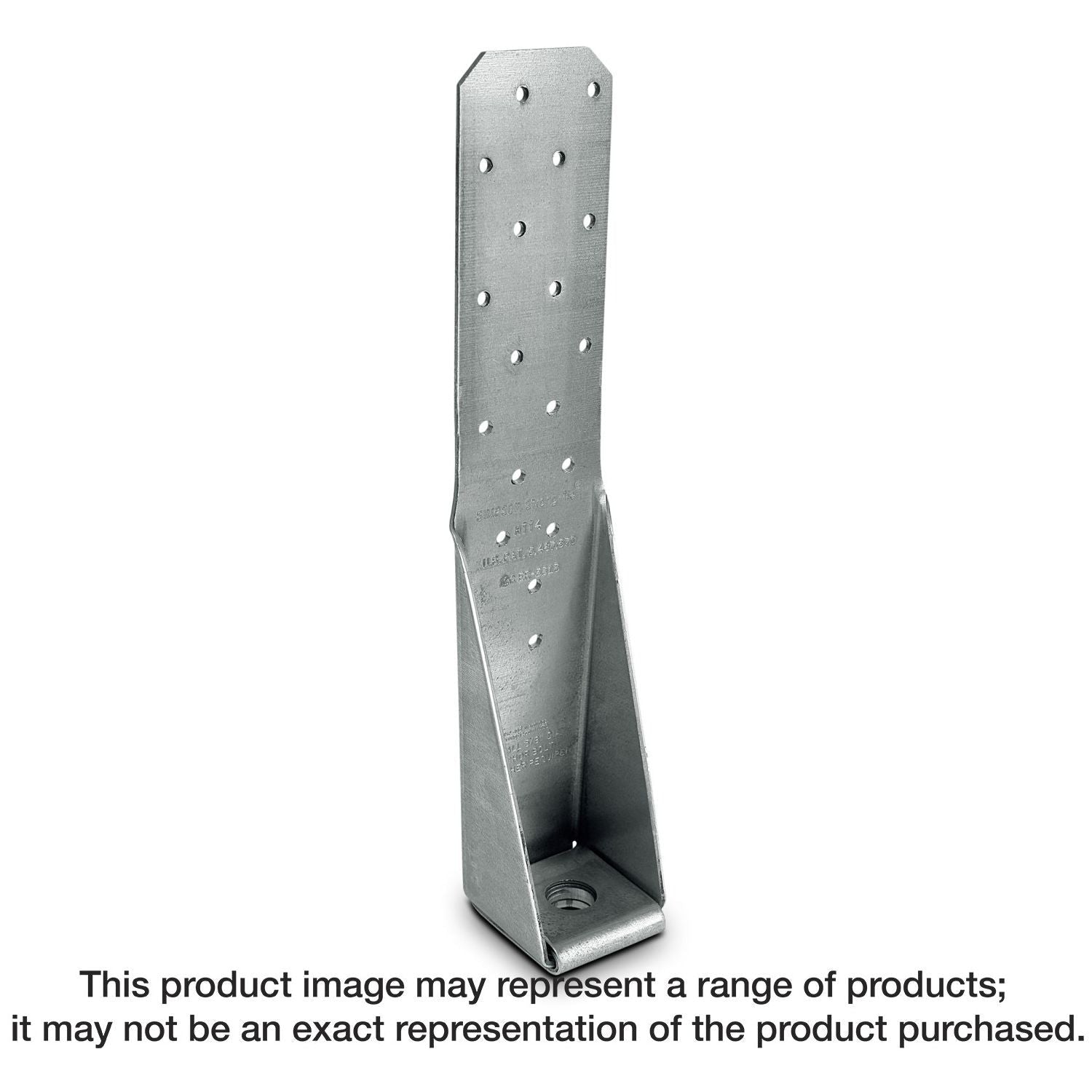

Simpson Strong-Tie HTT5HDG HTT 16-in. Hot-Dip Galvanized Heavy Tension Tie for 5/8-in. Anchor

• Ideal for retrofit or new construction projects
• Can be installed with cast-in-place or post-installed anchor bolts
• Four-ply formed steel provides increased tension capacity
• Anchor bolt washers not required
• 2-1/2-in. width x 16-in. length
• Anchor rod diameter: 5/8 inch
• Made from 11-gauge steel
• Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

The Simpson Strong-Tie HTT is designed to resist medium tension loads that are fastened with #10 screws. This single-piece formed heavy tension tie has a four-ply formed seat, is designed without rivets and does not require washers. This tension tie provides high-strength, post-pour, concrete-to-steel connections.

• Ideal for retrofit or new construction projects
• Can be installed with cast-in-place or post-installed anchor bolts
• Four-ply formed steel provides increased tension capacity
• Anchor bolt washers not required
• 2-1/2-in. width x 16-in. length
• Anchor rod diameter: 5/8 inch
• Made from 11-gauge steel
• Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

Install With: (1) 5/8-in. anchor bolt AND (26) 0.148 x 1-1/2-in. nails, 0.148 x 3-in. nails, 0.162 x 2-1/2-in. nails or #10 x 1-1/2-in. Strong-Drive SD Connector screws; corrosion-resistant fasteners must be used
