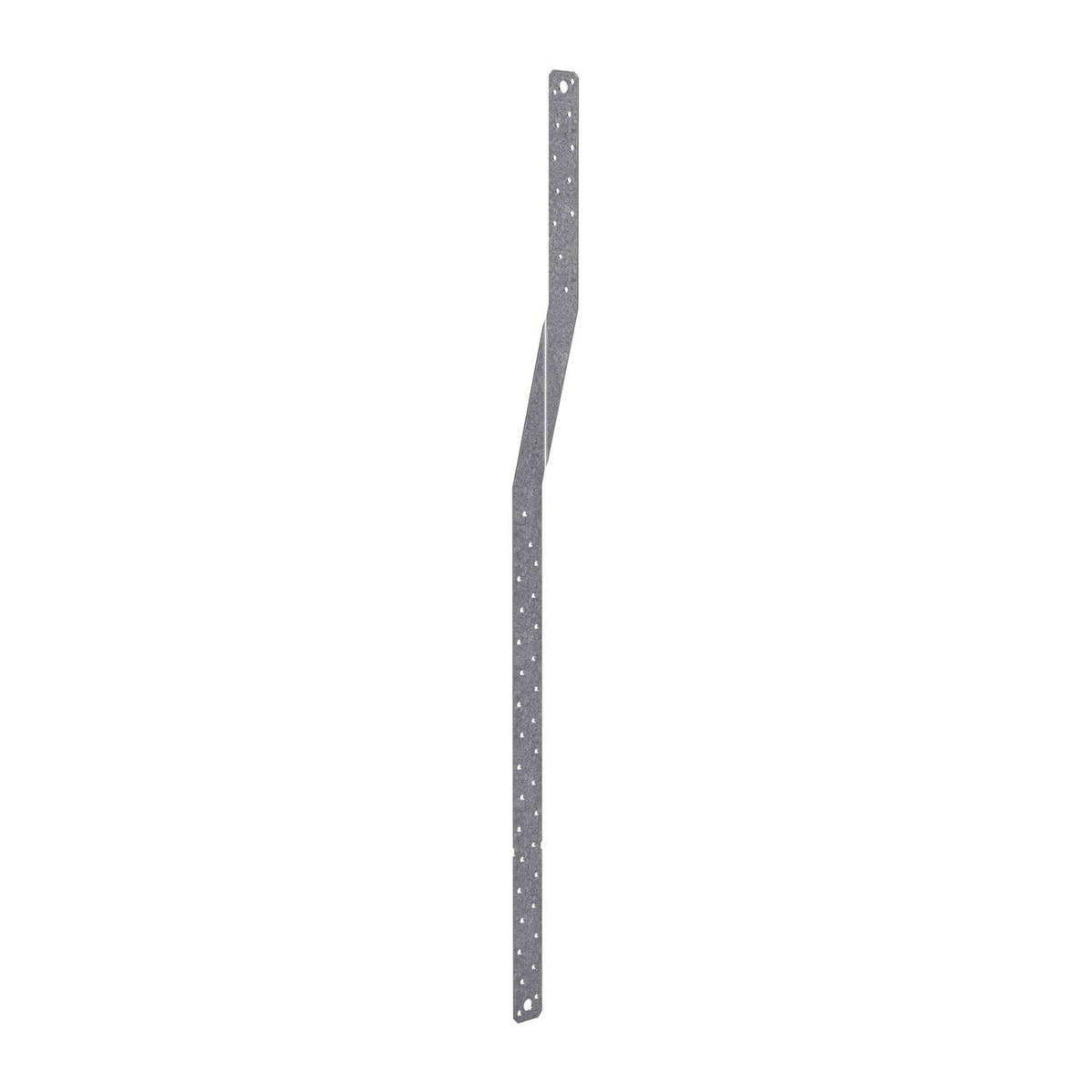

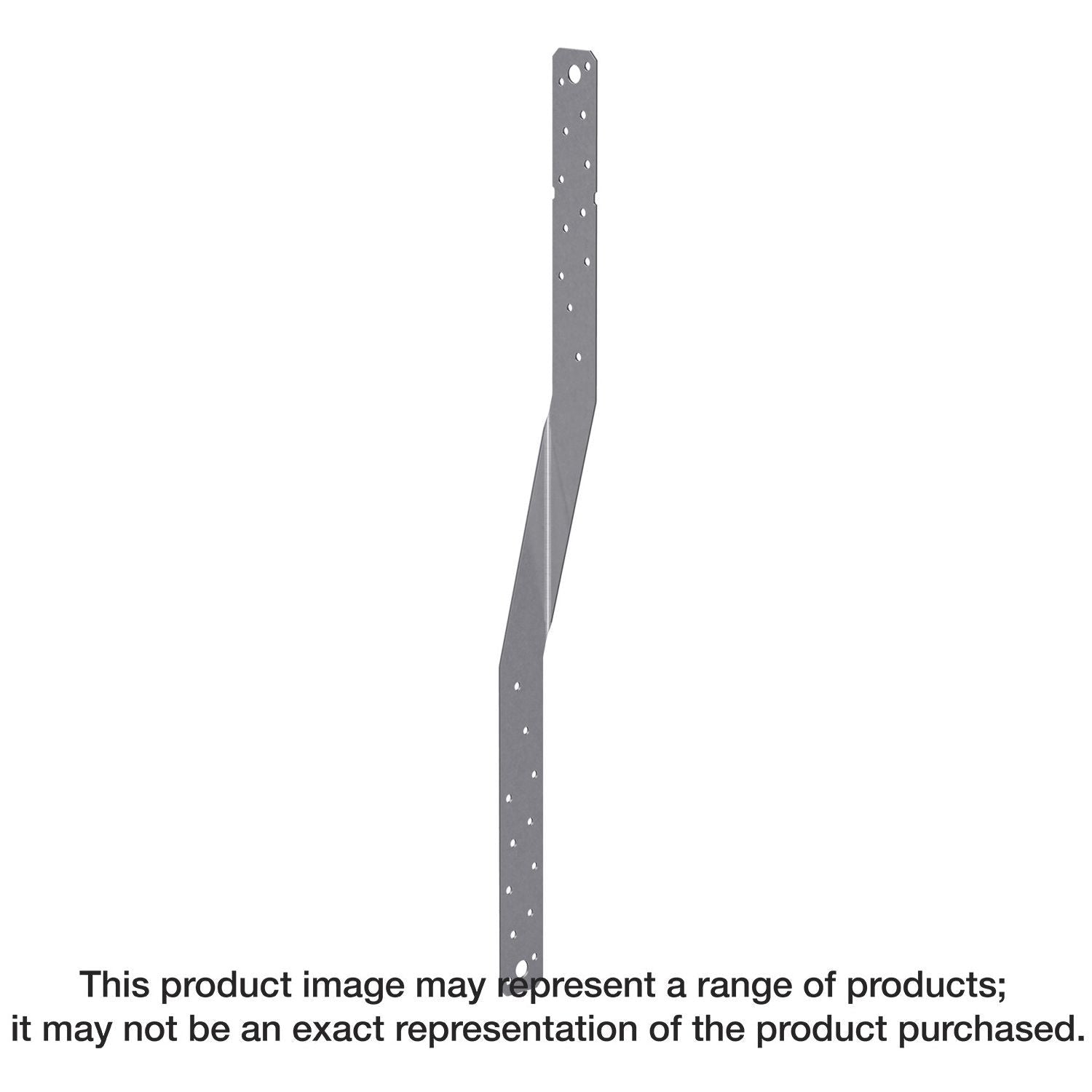

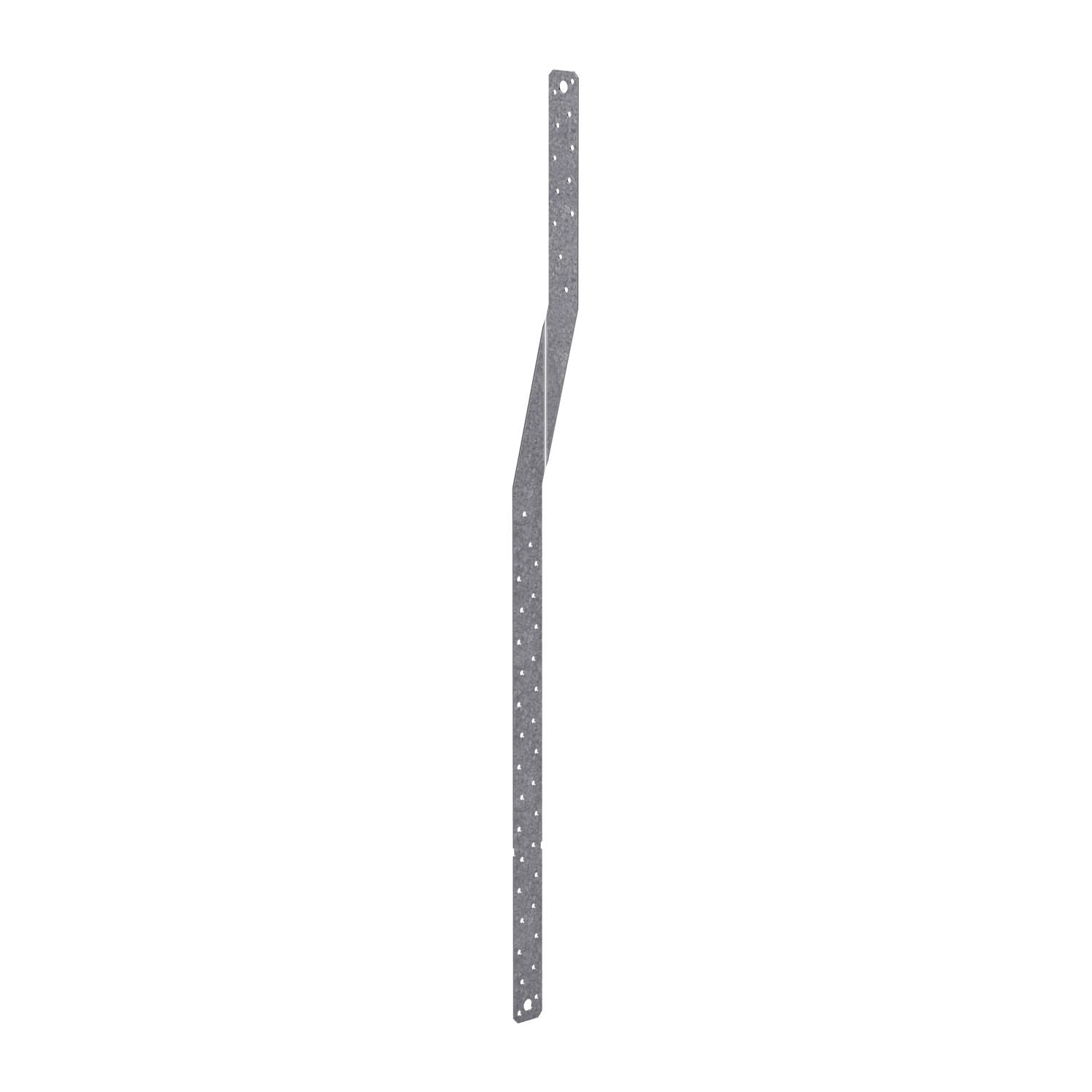

Simpson Strong-Tie HTS30 HTS 30-in. 14-Gauge Galvanized Heavy Twist Strap

• Available with the bend reversed; specify "-REV" after the model number, such as HTS30-REV
• Versatile with many lengths offered to fit the specific application
• Straps do not need to be wrapped over the truss to achieve the allowable load
• Length: 30 in.
• Made from 14-gauge steel
• Galvanized (G90) for extra corrosion resistance

Simpson Strong-Tie straps and plates join and reinforce joints with simple, versatile solutions for a wide range of connections. The HTS provides a tension connection between two members. This economical twist strap resists heavy uplift loads at the rafter or heel of a truss. The HTS has a small bend section to reduce interference at the transition points between the two members.

• Available with the bend reversed; specify "-REV" after the model number, such as HTS30-REV
• Versatile with many lengths offered to fit the specific application
• Straps do not need to be wrapped over the truss to achieve the allowable load
• Length: 30 in.
• Made from 14-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: Install with 10d common nails or 10d x 1-1/2 in. nails
