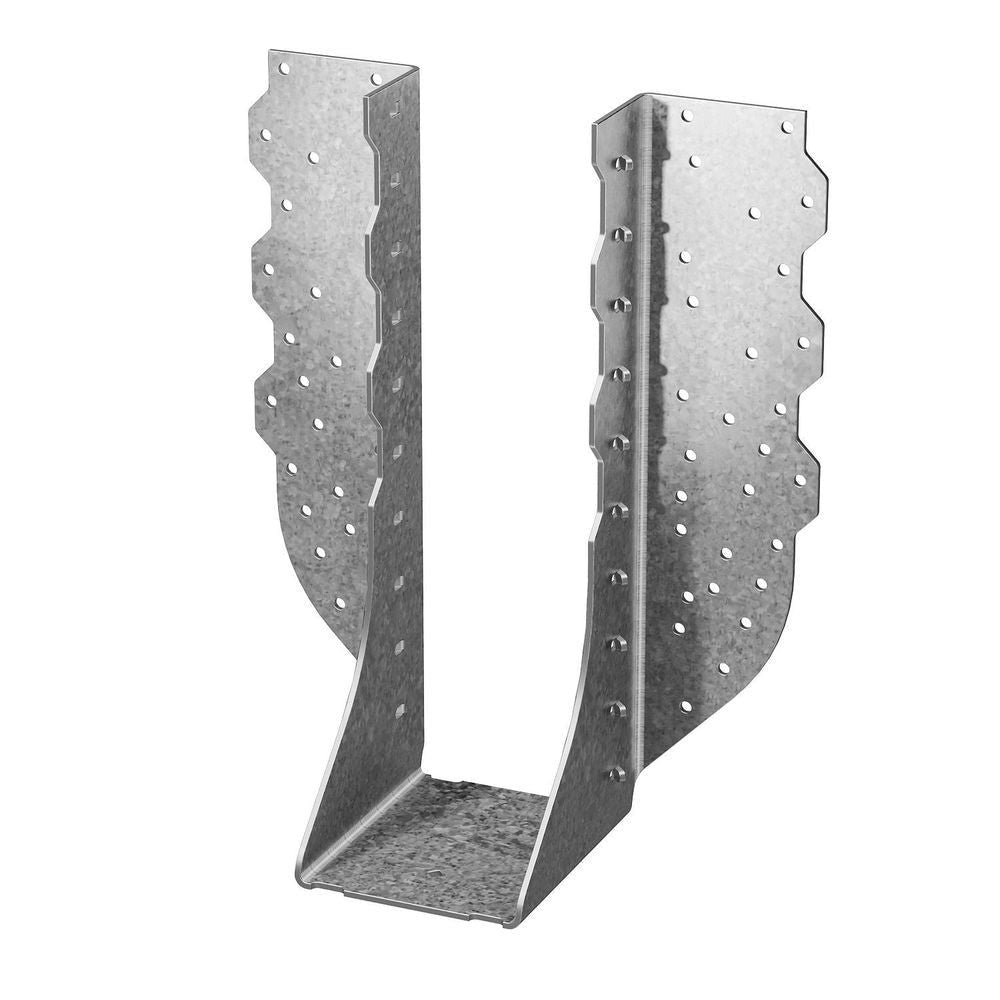

Simpson Strong-Tie HGUS3.25/12 HGUS Galvanized Face-Mount Joist Hanger for 3-1/8-in. x 12-in. Glulam

• Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
• Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
• Do not bend or remove tabs
• Joist size: 3-1/8 in. x 12 to 18 in. tall glulam
• Seat width: 3-1/4 in.
• Height: 10-5/8 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HGUS hangers are designed for applications where higher load values are needed.

• Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
• Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
• Do not bend or remove tabs
• Joist size: 3-1/8 in. x 12 to 18 in. tall glulam
• Seat width: 3-1/4 in.
• Height: 10-5/8 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: Install with 16d common nails
