Simpson Strong-Tie Galvanized Face-Mount Joist Hanger for 2x10 (LU210)
Simpson Strong-Tie Galvanized Face-Mount Joist Hanger for 2x10 (LU210)
Key Features
Overview

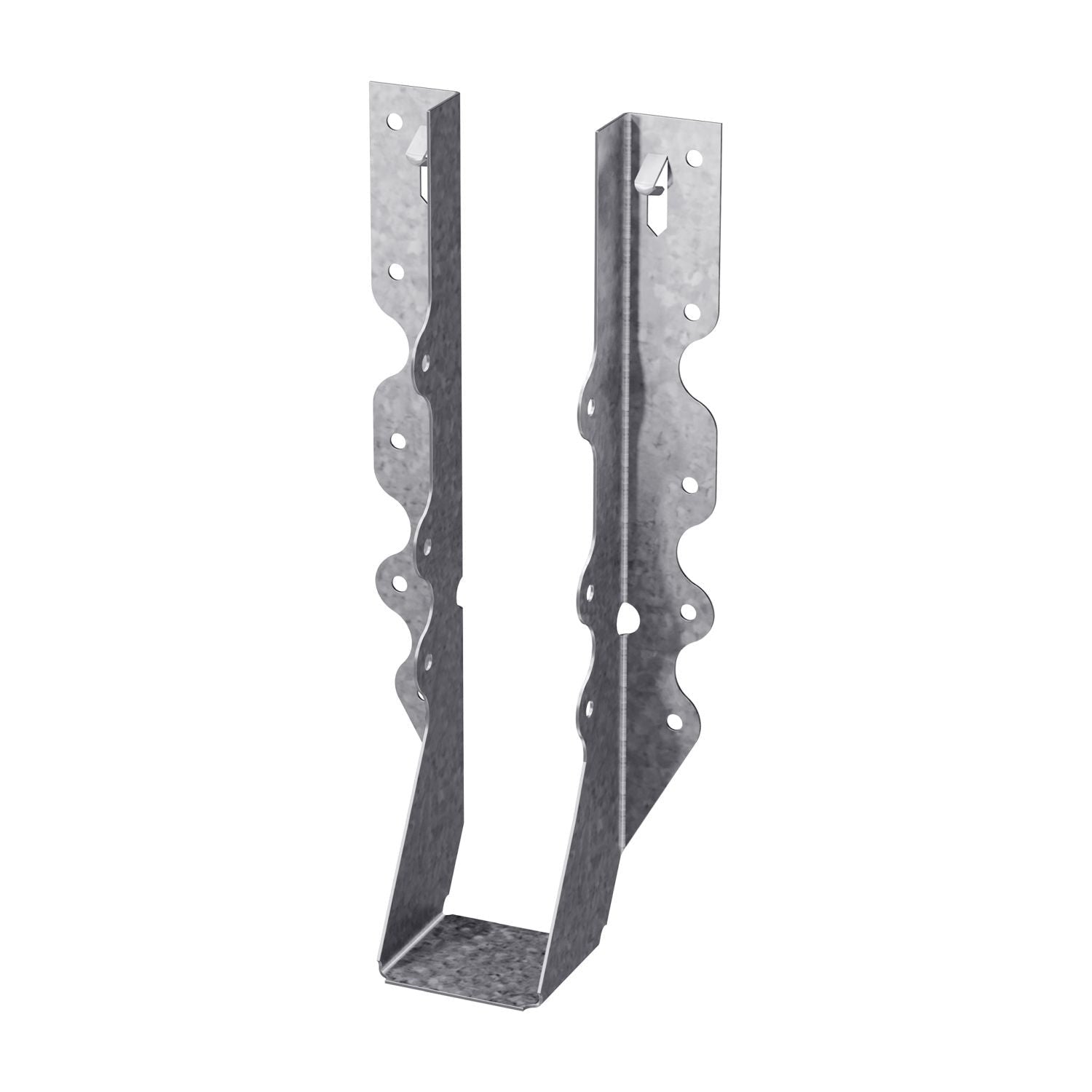

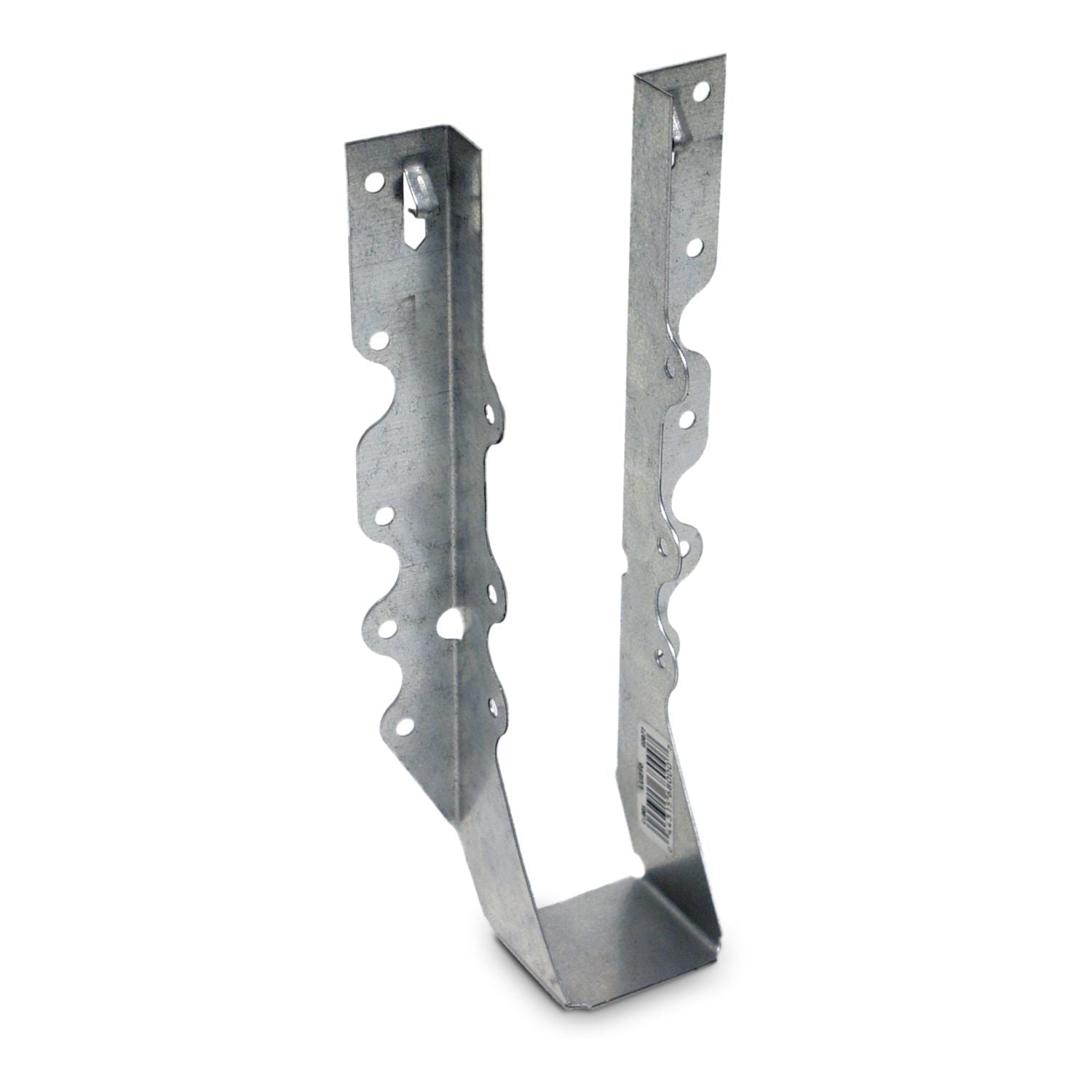

The Simpson Strong-Tie LU210 Light Face-Mount Joist Hanger is a galvanized steel framing connector built for joist-to-header installation in wood-framed construction. This is a face-mount joist hanger designed for securing dimensional lumber joists to a wood header or beam. Model Number: LU210. If you are framing floors, decks, or similar wood structures and need a tested connector for common 2-by lumber sizes, this hanger is made for that job.
What matters here is that the LU210 is not a generic bracket. It is part of Simpson Strong-Tie's LU series, which is tested, load rated, and code compliant. For this specific model, the hanger is sized for 2x10, 2x12, and 2x14 joists, with a 1-9/16 inch width, 7-13/16 inch height, and 1-1/2 inch seat. That gives you a connector that matches standard framing stock while keeping installation straightforward.
The big jobsite advantage is the built-in speed prongs. They temporarily position and secure the connector before full fastening, which saves a step when you are laying out multiple hangers or trying to hold alignment on a ladder. On repetitive framing work, that kind of detail matters because it helps keep placement consistent and cuts down on fumbling during install.
The LU210 is made from 20-gauge steel with a Zinc Galvanized G90 finish. In plain terms, that means it is intended for standard wood construction applications where you need a light face-mount hanger with corrosion protection suited to the specified use environment. It is also approved for engineered wood applications according to the manufacturer data, which gives it broader usefulness than a connector limited to only one framing type.
Fastener selection is a big part of connector performance, and Simpson Strong-Tie calls out tested allowable loads based on the specified fasteners. For the LU210 load table, the connector uses 10 SD9112 face fasteners and 6 SD9112 joist fasteners. The published allowable loads for this model reach up to 1,710 lb floor load for DF/SP and 1,965 lb floor load for SPF/HF, with listed uplift values as well. That is the kind of information a contractor or serious builder wants to see because it ties the connector to actual framing design decisions instead of vague strength claims.
Real-world install notes matter too. The manufacturer states that joists sloped up to 1/4:12 still achieve table loads. They also note that when nailing into a solid sawn carrying member's end grain, the allowable load is adjusted by a factor of 0.67. That is the sort of detail that separates a connector you can actually plan around from one that only looks good on a shelf.
If you are a framer, deck builder, remodeler, or general contractor working on wood framing, the LU210 makes sense when you need a compact joist hanger for common larger joist sizes without moving into a heavier or more specialized hanger than the application requires. It is a practical choice for fastening, framing, and structural wood connections where published loads, predictable fit, and faster installation all matter.
See the Connection in Real Use
This connector is built for a straightforward joist-to-header connection. The face-mount design keeps the joist supported at the end while the hanger wraps the member where the load needs to be transferred.
- Designed for wood-framed construction
- Face-mount hanger style for joist-to-header installation
Quicker Placement During Framing
The speed prong detail is there for one reason: make setup easier before full fastening. When you are repeating hanger locations across a run of framing, that small time saver adds up.
- Speed prongs temporarily position and secure the connector
- Useful for repetitive floor, deck, and general framing work
Sized for Common 2-By Lumber
The LU210 covers several joist sizes in one model, which gives you flexibility on site and makes it easier to match the connector to standard framing members.
- Fits 2x10, 2x12, and 2x14 joists
- 20-gauge galvanized steel with G90 coating
Key Specifications
| Joist Size | 2x10, 2x12, 2x14 |
|---|---|
| Gauge | 20 ga |
| Width (in) | 1-9/16 in |
| Height (in) | 7-13/16 in |
| Seat Width B (in) | 1-1/2 in |
| Finish | Zinc Galvanized, G90 |
| Face Fasteners | 10-SD9112 |
| Joist Fasteners | 6-SD9112 |
Compatibility
Built For
Pro Tip
Use all specified fasteners if you want the published loads to mean anything on the job. Also note that if you are nailing into the end grain of a solid sawn carrying member, the manufacturer says the allowable load gets reduced by a factor of 0.67.
At a Glance
Tool Nut's Take
Simpson Strong-Tie LU210 Light Face-Mount Joist Hanger That Keeps Framing Simple
This is the kind of connector you buy when you want a known fit, published loads, and faster install without overcomplicating a basic joist-to-header connection.
- Who it's for: Framers, deck builders, remodelers, and contractors working with common 2x wood joists in structural framing.
- Why it stands out: It gives you tested load data, G90 galvanized protection, and speed prongs that make repetitive hanger installs less annoying.
- Worth knowing: This is only as good as the fastener schedule and installation method behind it, so pay attention to the specified screws and the load adjustments in the manufacturer notes.
Common Questions
- What lumber sizes does the LU210 fit? The LU210 is listed for 2x10, 2x12, and 2x14 joists.
- Is this a face-mount or top-flange hanger? It is a face-mount joist hanger designed for joist-to-header installation.
- What finish does it use? The LU210 uses a Zinc Galvanized G90 finish.
- Can it be used with sloped joists? The manufacturer states that joists sloped up to 1/4:12 achieve table loads.
