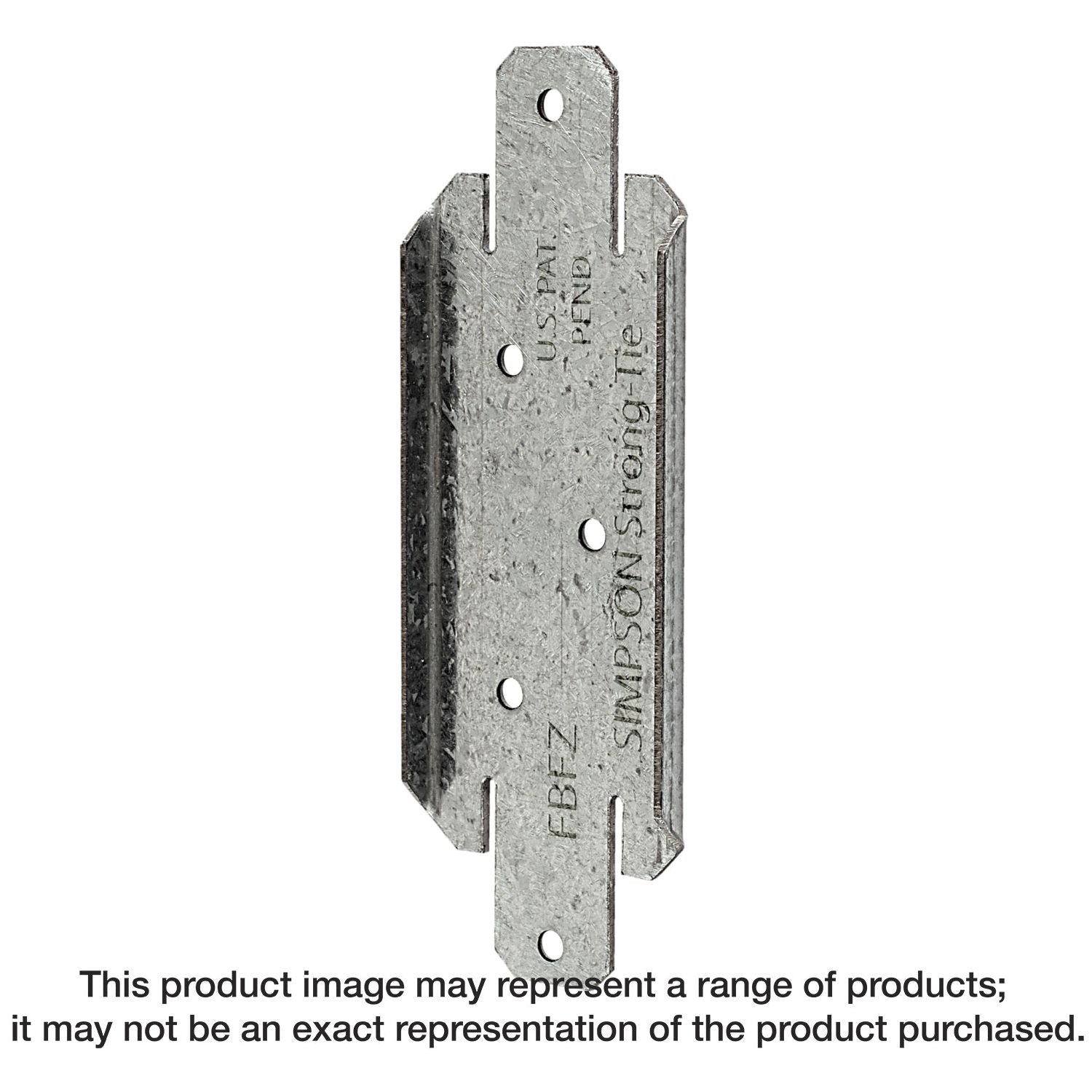

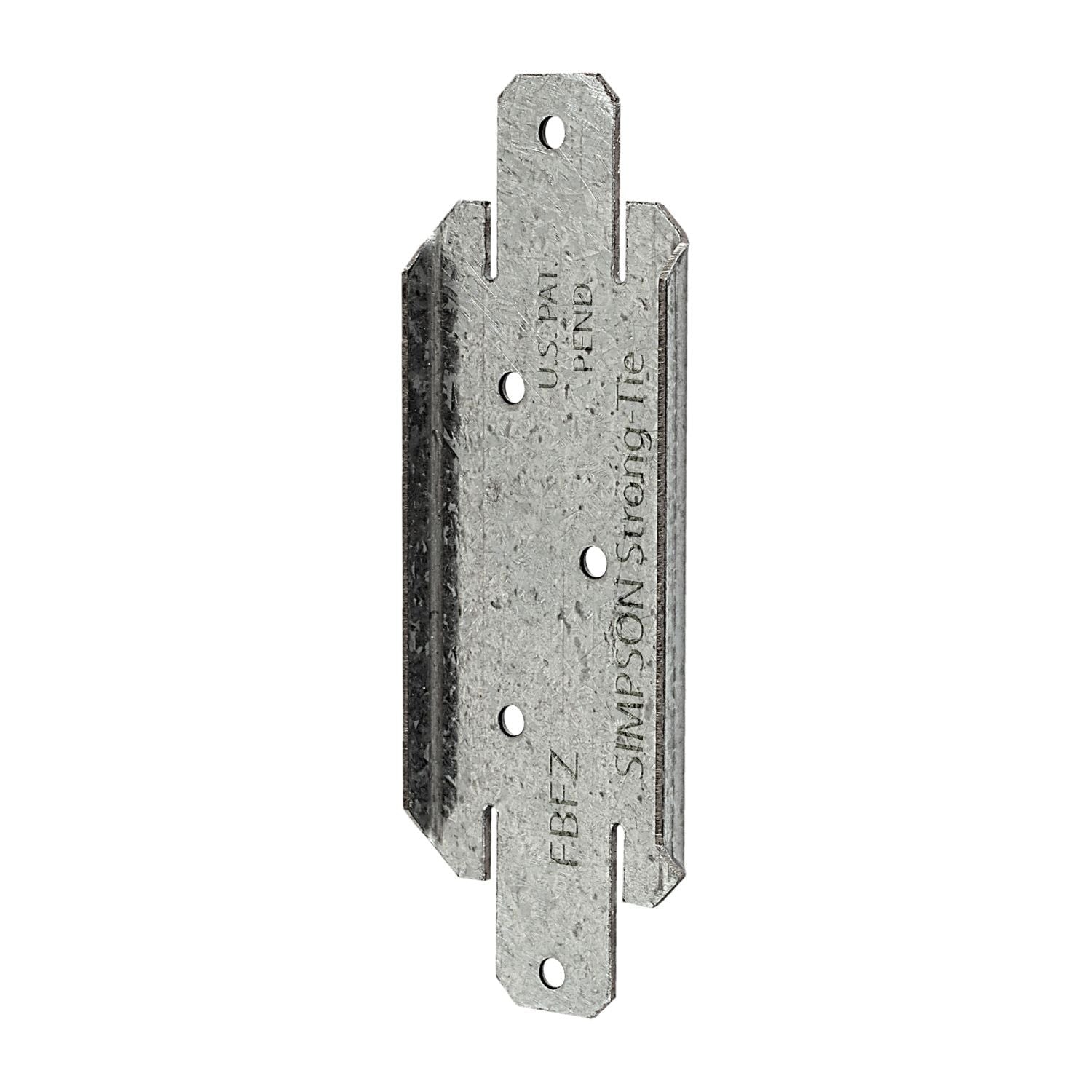

Simpson Strong-Tie FBFZ FBFZ ZMAX Galvanized Flat Rail Fence Bracket for 2x4

• Clean, versatile connections make planning and building fences, deck/porch railings and louvers fast and easy
• Can be used for handrail attachments for porch and deck railings that are 30 in. or closer to ground level
• Bendable tabs on each end of the bracket allow for slight adjustments when wood rails are cut too short and provide a secure connection when wood expands and contracts
• Flexible hole design can accommodate multiple fastener types, including nails and Strong-Drive SD Connector screws

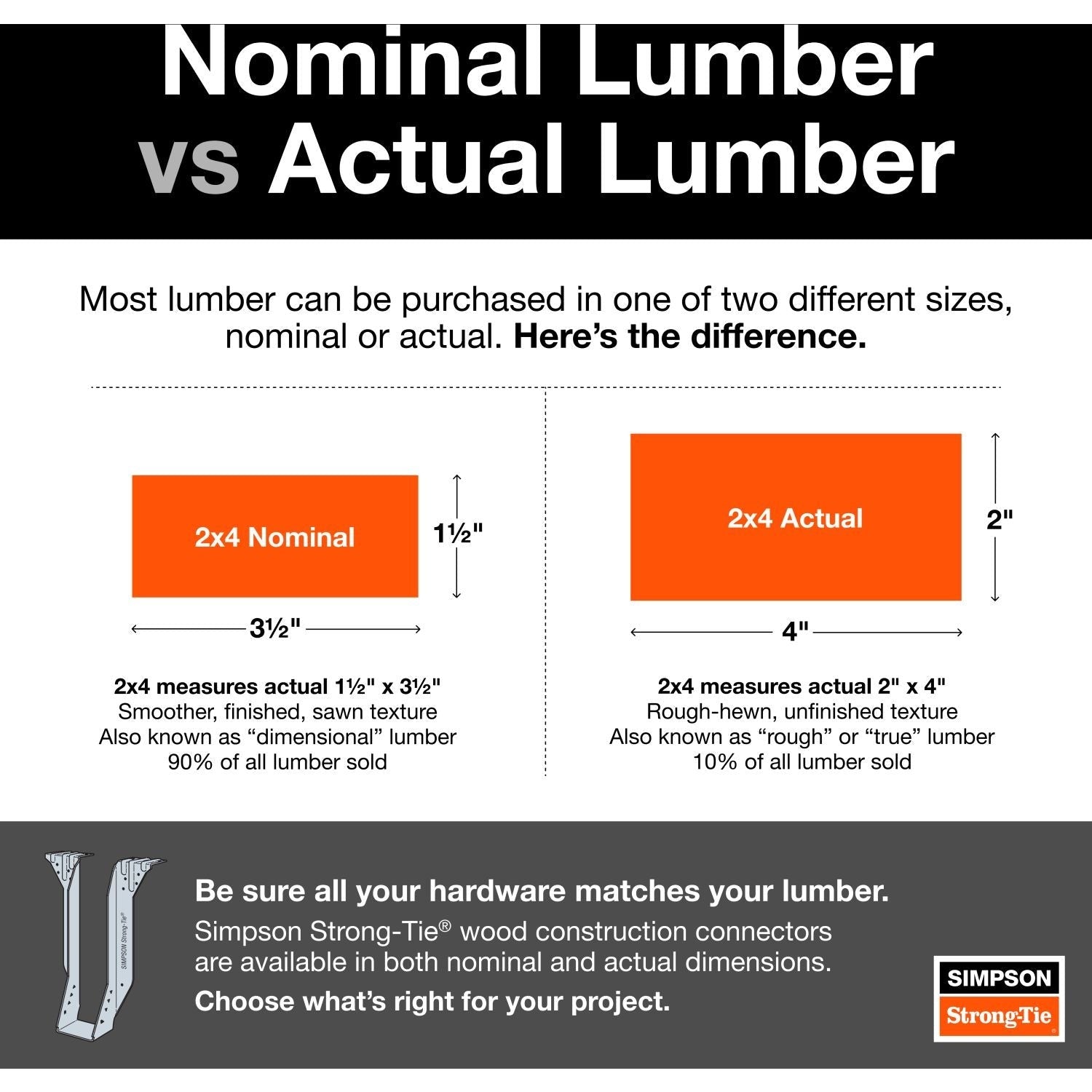

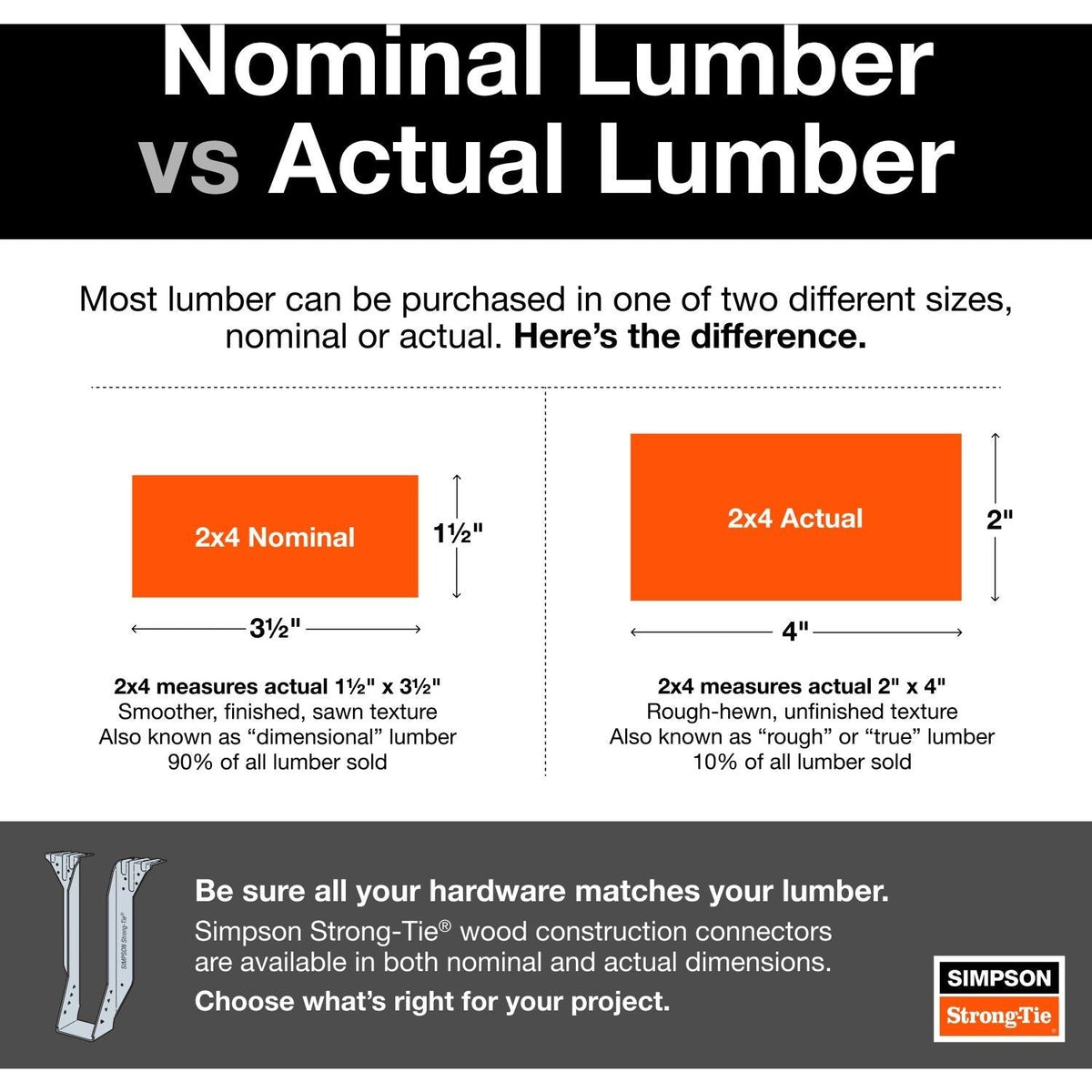

• Nominal member size: 2x4
• Width: 1-9/16 in.
• Height: 4-3/4 in.
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

The FBFZ is designed to provide a sturdy, concealed connection between rails and posts. The design of this flat fence rail bracket provides strong, simple connections without the need for toe nails or screws. The flat-plate design of the FBFZ both eases installation and provides a clean appearance.

• Clean, versatile connections make planning and building fences, deck/porch railings and louvers fast and easy
• Can be used for handrail attachments for porch and deck railings that are 30 in. or closer to ground level
• Bendable tabs on each end of the bracket allow for slight adjustments when wood rails are cut too short and provide a secure connection when wood expands and contracts
• Flexible hole design can accommodate multiple fastener types, including nails and Strong-Drive SD Connector screws
• Nominal member size: 2x4
• Width: 1-9/16 in.
• Height: 4-3/4 in.
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Install With: Install with (5) 0.131 in. x 1-1/2 in. nails, 0.131 in. x 2-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive SD Connector screws
