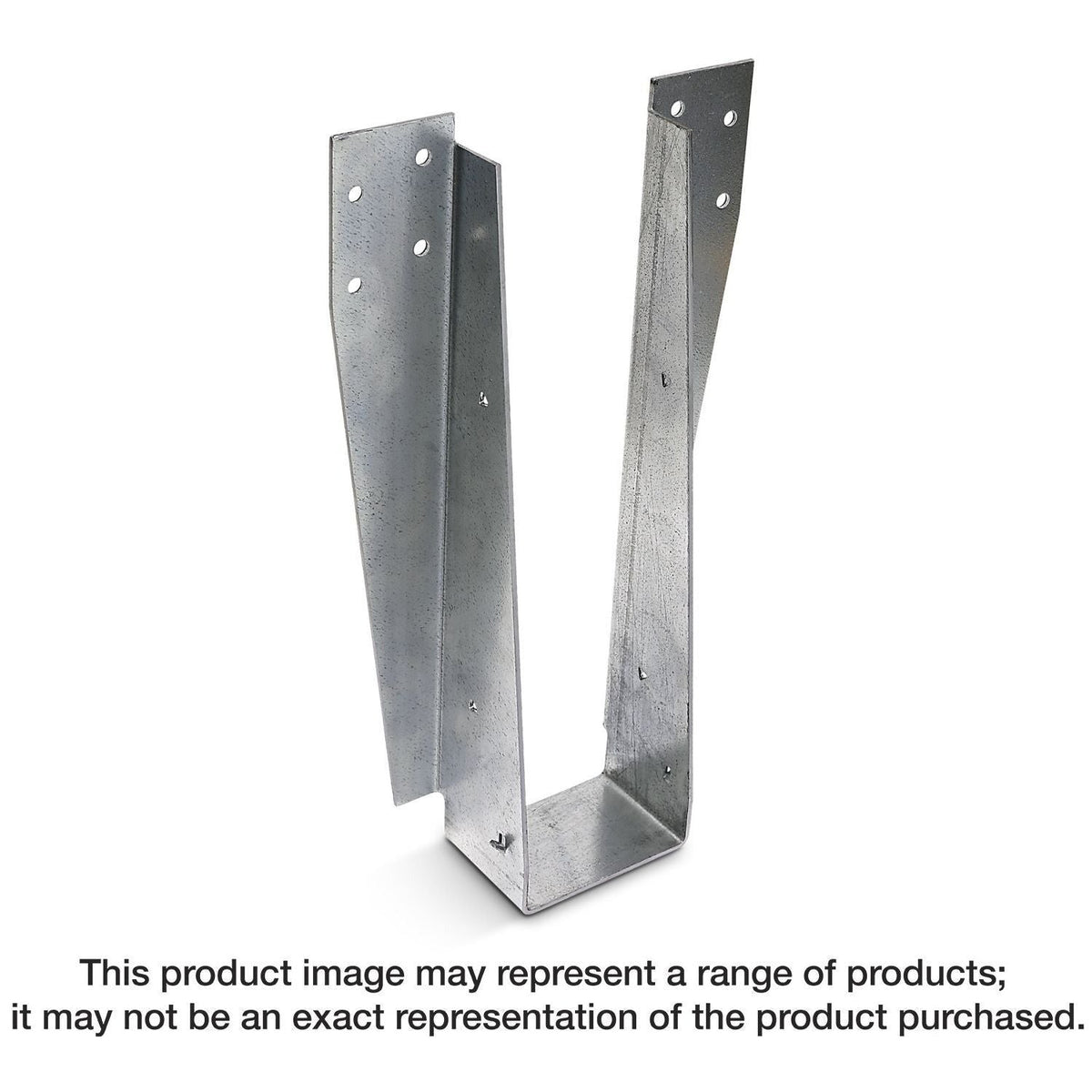

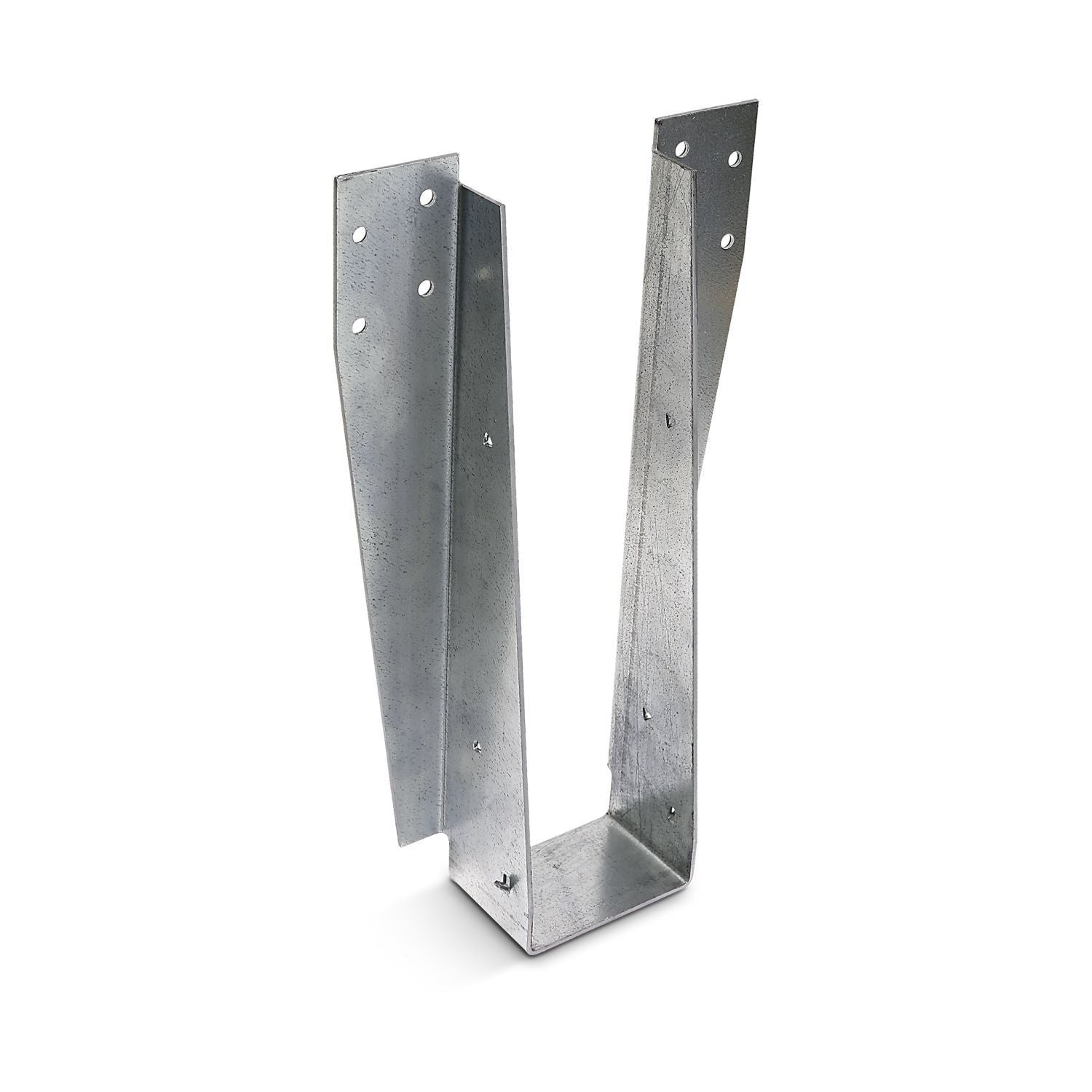

Simpson Strong-Tie DHU3.56/14 DHU Face-Mount Drywall Hanger for 3-1/2-in. x 14-in. Engineered Wood with SDS Screws

Simpson Strong-Tie DHU3.56/14 DHU Face-Mount Drywall Hanger for 3-1/2-in. x 14-in. Engineered Wood with SDS Screws

$12.24 $50.99
Skip to product information
Simpson Strong-Tie DHU3.56/14 DHU Face-Mount Drywall Hanger for 3-1/2-in. x 14-in. Engineered Wood with SDS Screws
  • Simpson Strong-Tie DHU3.56/14 DHU Face-Mount Drywall Hanger for 3-1/2-in. x 14-in. Engineered Wood with SDS Screws
  • Simpson Strong-Tie DHU3.56/14 DHU Face-Mount Drywall Hanger for 3-1/2-in. x 14-in. Engineered Wood with SDS Screws
  • Simpson Strong-Tie DHU3.56/14 DHU Face-Mount Drywall Hanger for 3-1/2-in. x 14-in. Engineered Wood with SDS Screws
  • Simpson Strong-Tie DHU3.56/14 DHU Face-Mount Drywall Hanger for 3-1/2-in. x 14-in. Engineered Wood with SDS Screws
  • Simpson Strong-Tie DHU3.56/14 DHU Face-Mount Drywall Hanger for 3-1/2-in. x 14-in. Engineered Wood with SDS Screws
  • Simpson Strong-Tie DHU3.56/14 DHU Face-Mount Drywall Hanger for 3-1/2-in. x 14-in. Engineered Wood with SDS Screws
  • Simpson Strong-Tie DHU3.56/14 DHU Face-Mount Drywall Hanger for 3-1/2-in. x 14-in. Engineered Wood with SDS Screws
  • Simpson Strong-Tie DHU3.56/14 DHU Face-Mount Drywall Hanger for 3-1/2-in. x 14-in. Engineered Wood with SDS Screws
Simpson Strong-Tie DHU3.56/14 DHU Face-Mount Drywall Hanger for 3-1/2-in. x 14-in. Engineered Wood with SDS Screws

Simpson Strong-Tie DHU3.56/14 DHU Face-Mount Drywall Hanger for 3-1/2-in. x 14-in. Engineered Wood with SDS Screws

$12.24 $50.99
  • DHU hangers in widths of 2-1/2 in. or greater may be ordered with one flange concealed
  • Available for order skewed up to 45°
  • Testing verifies that the DHU hangers do not reduce the two-hour fire wall assembly rating in either 2x4 or 2x6 walls
  • DHU fire wall hangers are code listed for structural use under ICC-ES ESR-2552
  • Hangers have been tested according to ASTM E814 and received F (flame) and T (temperature) ratings for use on one or both sides of the wall in Intertek Design No. SST/WPCF 120-01
  • If hangers are installed on both sides of the wall, then it must be a 2x6 wall
  • Seat width: 3-9/16 in.
  • Height: 13-15/16 in.
  • Made from 12-gauge steel
  • Galvanized (G90) for extra corrosion resistance

Engineered and tested to perform, Simpson Strong-Tie hangers are manufactured to the highest quality standards for structural strength and safety. DHU face-mount hangers are designed to carry joist floor loads to a wood stud wall over two layers of 5/8-in. gypsum board (drywall). These hangers install after the drywall is in place.

  • DHU hangers in widths of 2-1/2 in. or greater may be ordered with one flange concealed
  • Available for order skewed up to 45°
  • Testing verifies that the DHU hangers do not reduce the two-hour fire wall assembly rating in either 2x4 or 2x6 walls
  • DHU fire wall hangers are code listed for structural use under ICC-ES ESR-2552
  • Hangers have been tested according to ASTM E814 and received F (flame) and T (temperature) ratings for use on one or both sides of the wall in Intertek Design No. SST/WPCF 120-01
  • If hangers are installed on both sides of the wall, then it must be a 2x6 wall
  • Seat width: 3-9/16 in.
  • Height: 13-15/16 in.
  • Made from 12-gauge steel
  • Galvanized (G90) for extra corrosion resistance

Install With: Install with (2) 0.148 in. x 1-1/2 in. nails in the joist and (8) 1/4 in. x 3-1/2 in. Strong Drive SDS Heavy-Duty Connector screws in the face (screws included)
