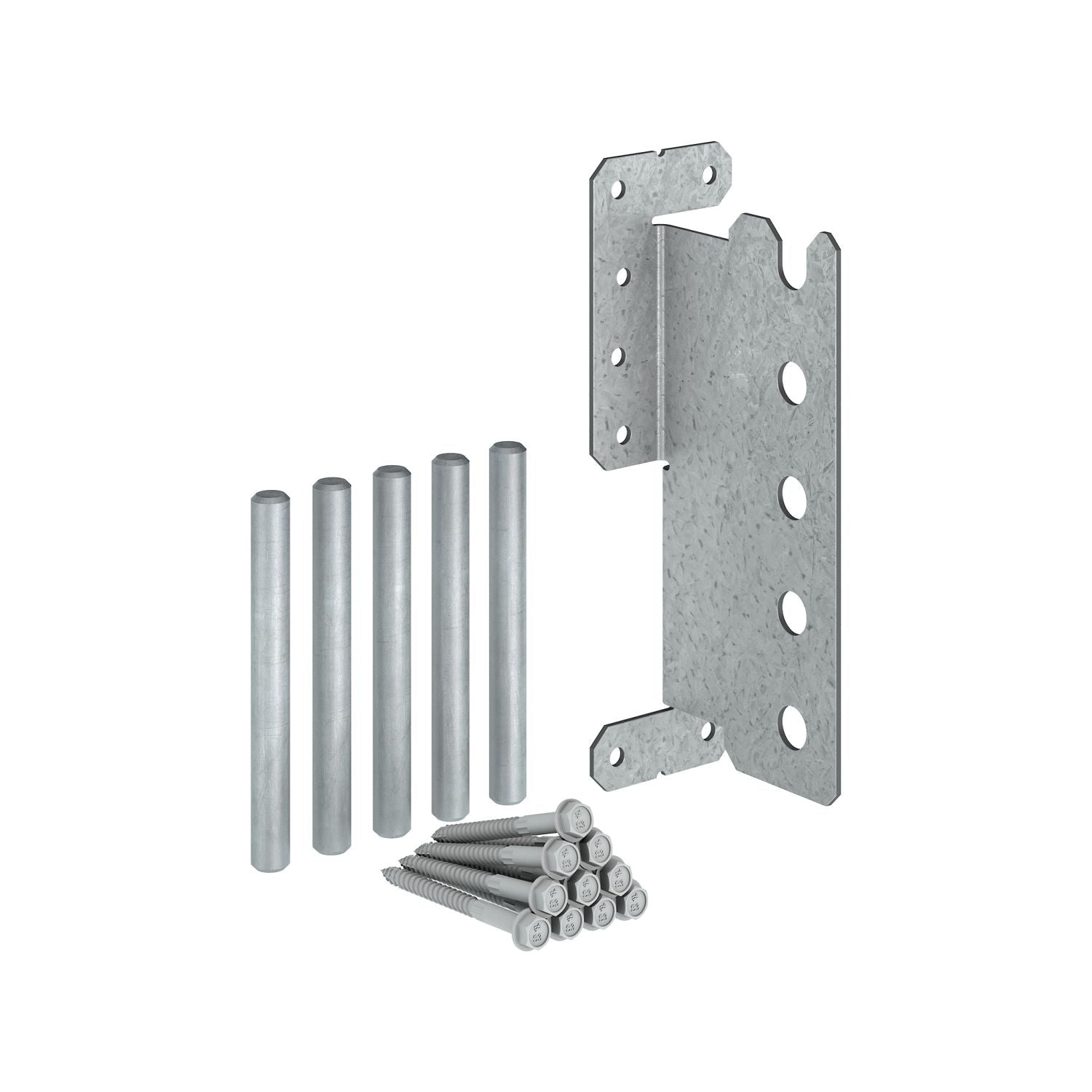

Simpson Strong-Tie CJT5ZL CJTZ 12-Gauge ZMAX Galvanized Concealed Joist Tie with (5) Long Pins

• Center dowel in beam
• Dowels aligned across the grain may cause splitting if the wood shrinks excessively
• Install only in glulam, composite lumber (PSL, LSL and LVL) or well dried lumber
• Long dowel (1/2 in. x 4-3/4 in.) for use with 5-1/8 in. glulam beam, 6x sawn lumber or greater widths
• Made from 12-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

The CJTZ is a concealed connector. It can be installed three ways: with no routing of header/post or beam, a routed header/post or a routed beam. It is part of a concealed connector system that includes the CPTZ and CBTZ.

• Center dowel in beam
• Dowels aligned across the grain may cause splitting if the wood shrinks excessively
• Install only in glulam, composite lumber (PSL, LSL and LVL) or well dried lumber
• Long dowel (1/2 in. x 4-3/4 in.) for use with 5-1/8 in. glulam beam, 6x sawn lumber or greater widths
• Made from 12-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

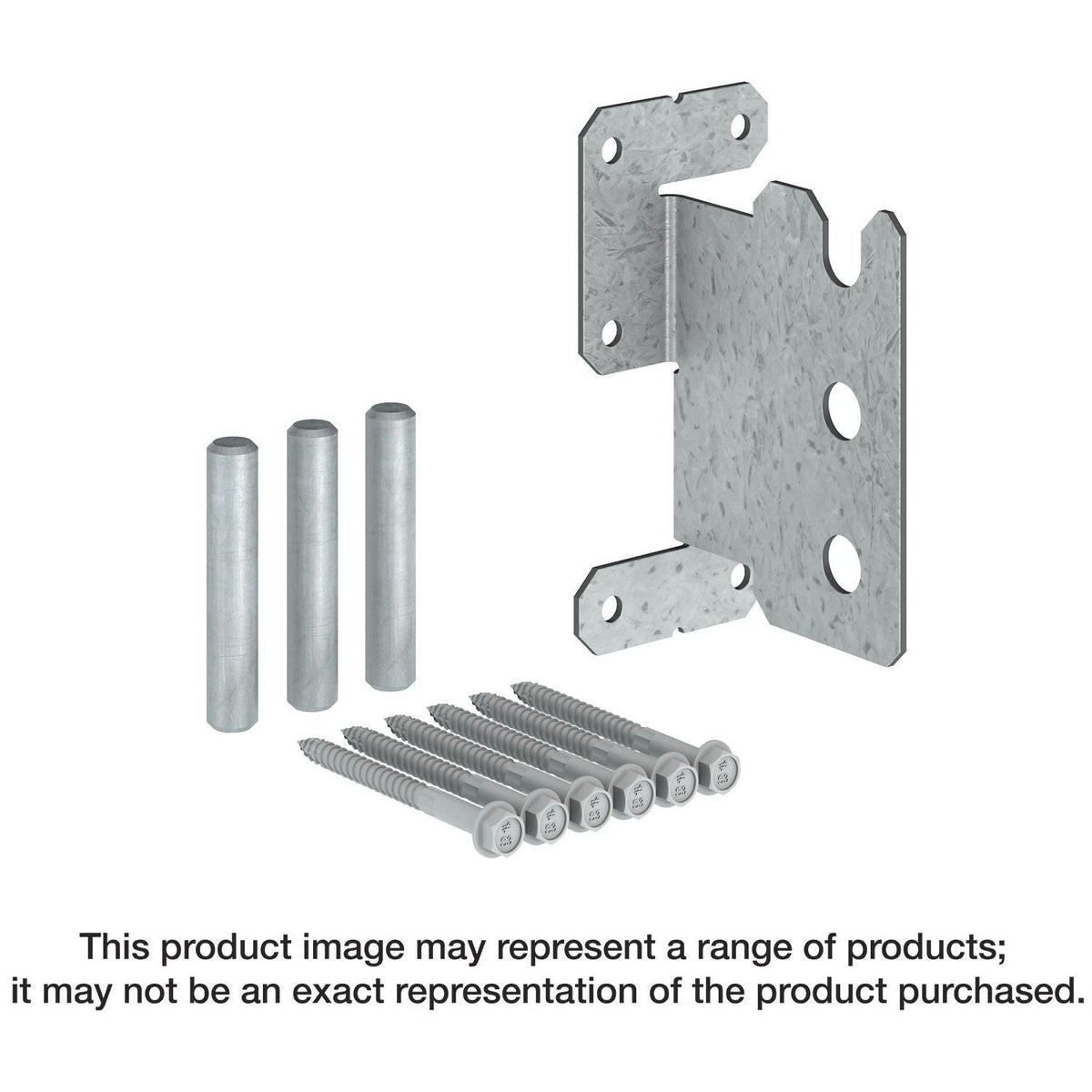

Install With: The CJTZ is supplied with all dowels and screws required; screws require a hex-head driver
