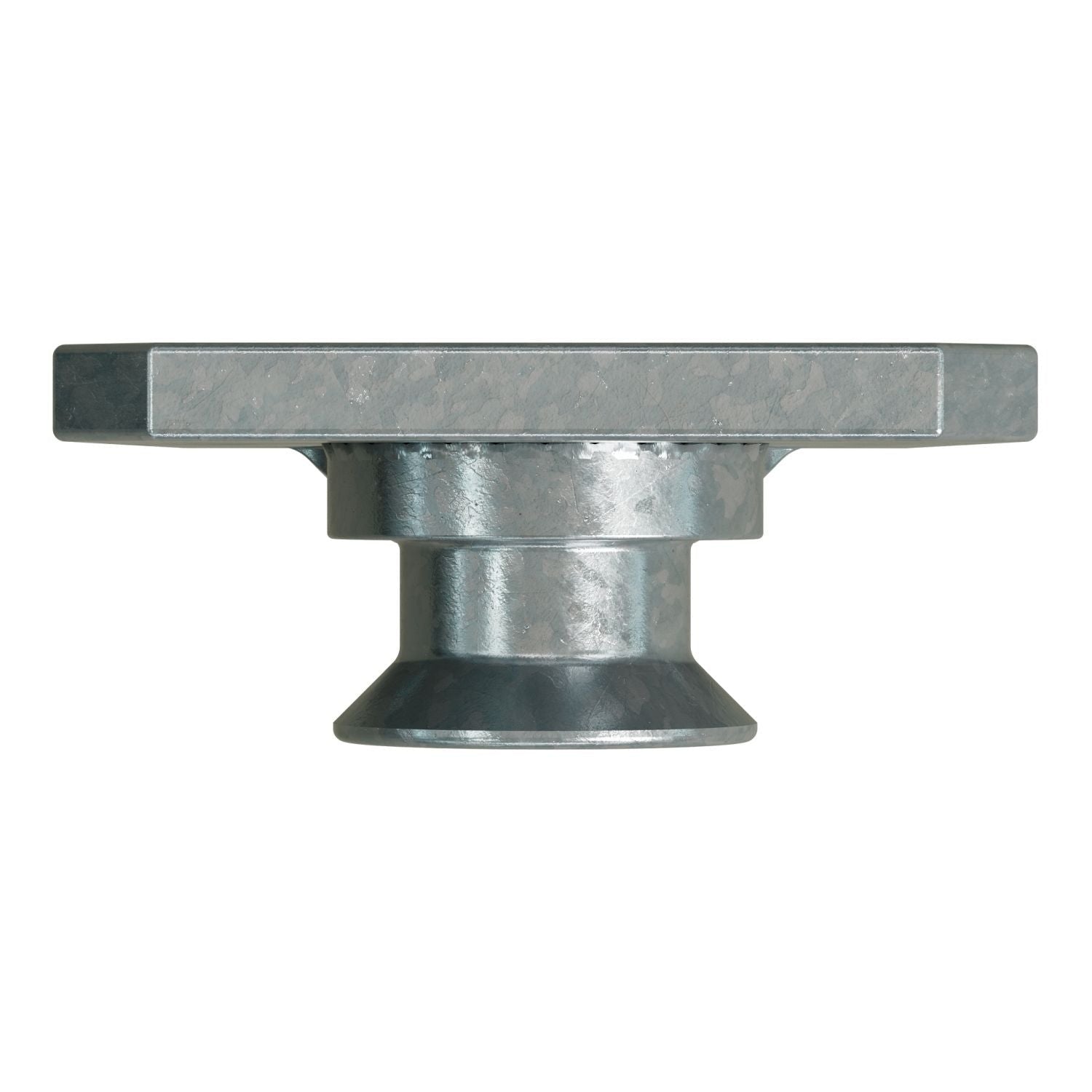

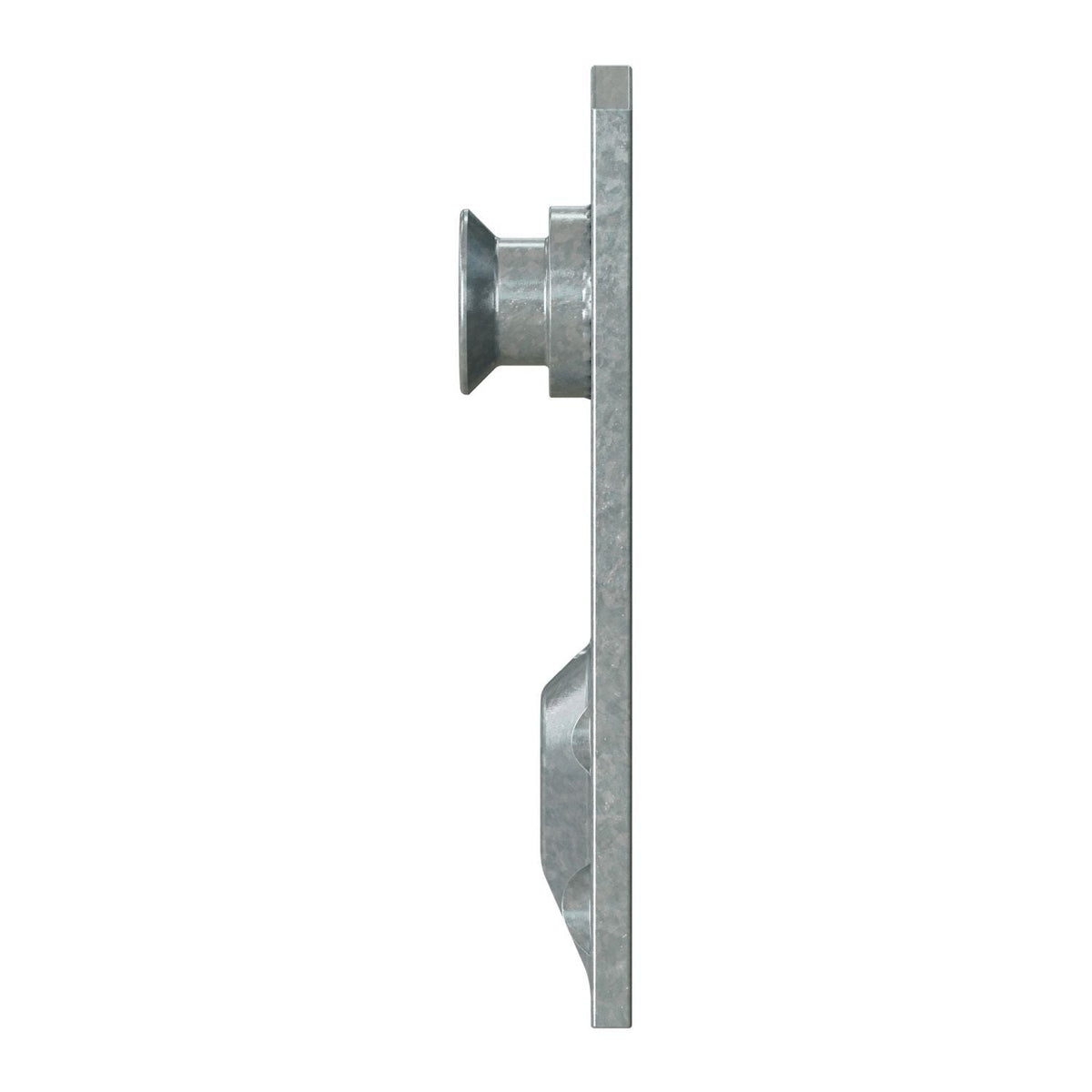

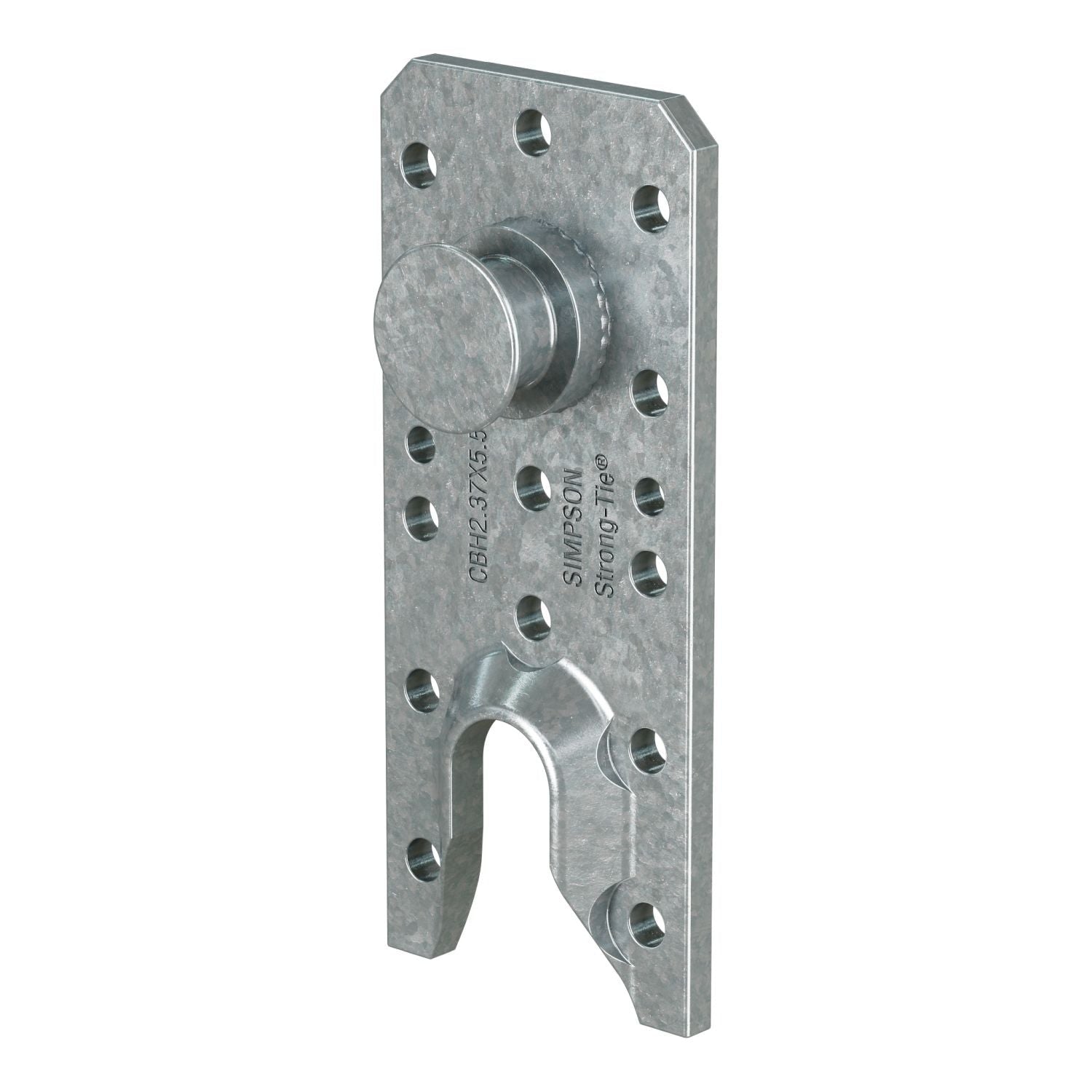

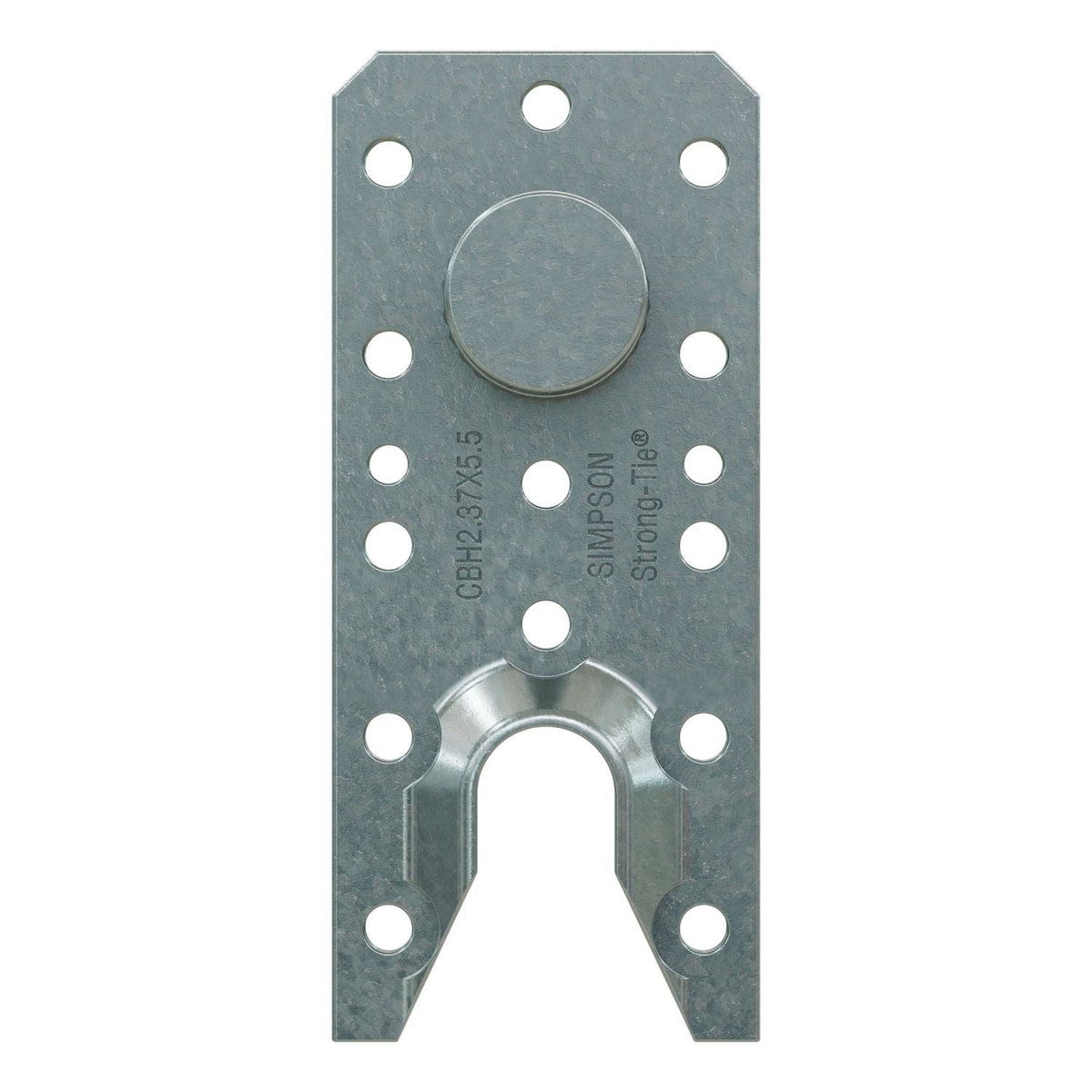

Simpson Strong-Tie CBH2.37X5.5C-KT CBH 2-3/8-in. x 5-1/2-in. Joist-to-Column Concealed Hanger w/ Screws

• Concealed for architectural aesthetics and fire-rated performance
• Multiple router options to suit jobsite needs
• The +/- 1/32-in. beam length tolerance on each end enables easier installation
• 1-hr and 2-hr fire resistance ratings per ASTM E119
• Inter-story drift performance tested to over 2%
• Code-listed per ICC-ESR-2552
• 2-3/8 in. width x 5-1/2 in. height
• Made from 3-gauge steel; electro-galvanized finish

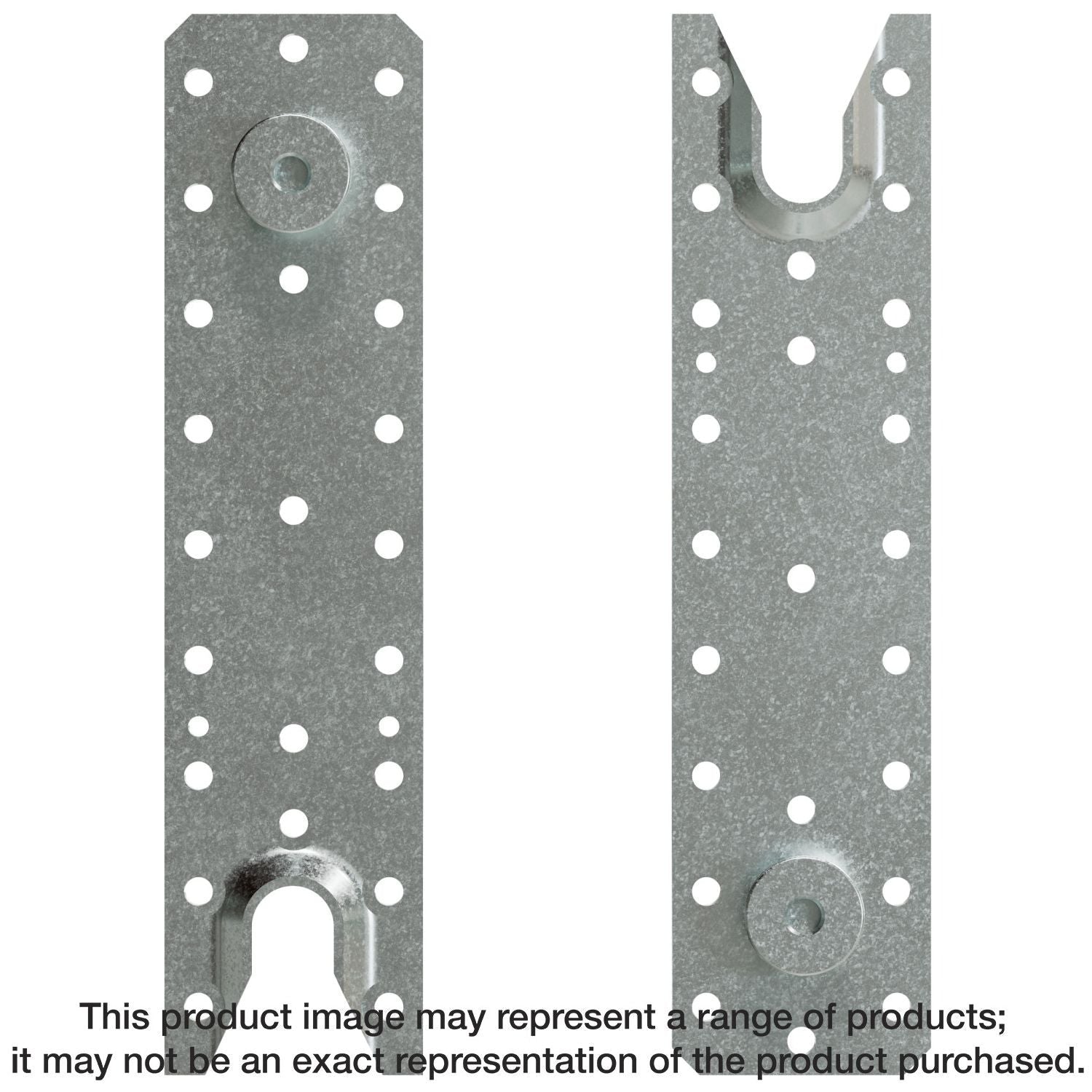

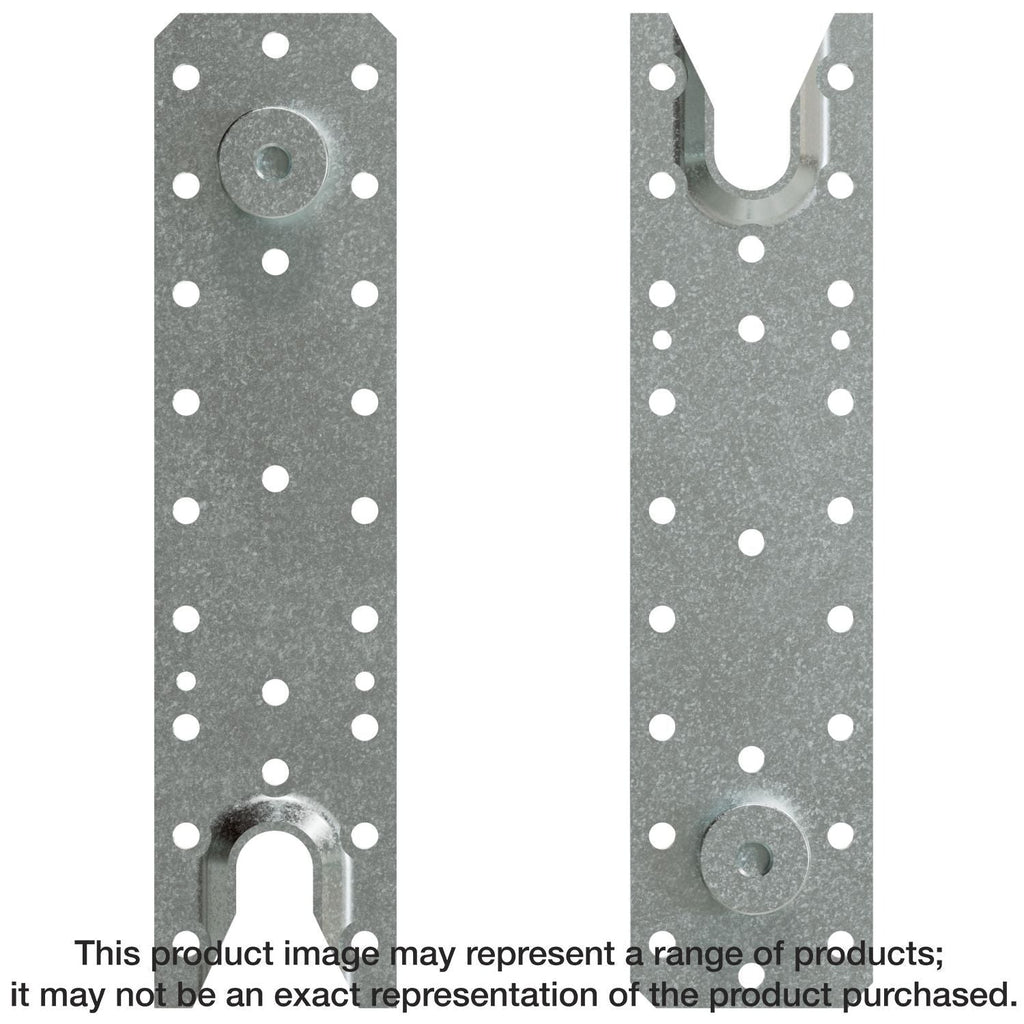

• Two backplates make up one connection

Computer modeling and CNC manufacturing enables glulam to be delivered to the jobsite in precise lengths and with preinstalled concealed hangers. The Simpson Strong-Tie CBH™ concealed beam hanger is specifically designed for such applications, and is installed with readily available Strong-Drive SDS Heavy-Duty Connector screws. The CBH has been tested for inter-story drift and has achieved 1-hr and 2-hr fire resistance ratings according to ASTM E119.

• Concealed for architectural aesthetics and fire-rated performance
• Multiple router options to suit jobsite needs
• The +/- 1/32-in. beam length tolerance on each end enables easier installation
• 1-hr and 2-hr fire resistance ratings per ASTM E119
• Inter-story drift performance tested to over 2%
• Code-listed per ICC-ESR-2552
• 2-3/8 in. width x 5-1/2 in. height
• Made from 3-gauge steel; electro-galvanized finish
• Two backplates make up one connection

Install With: (26) Strong-Drive SDS25600 screws (screws included)
