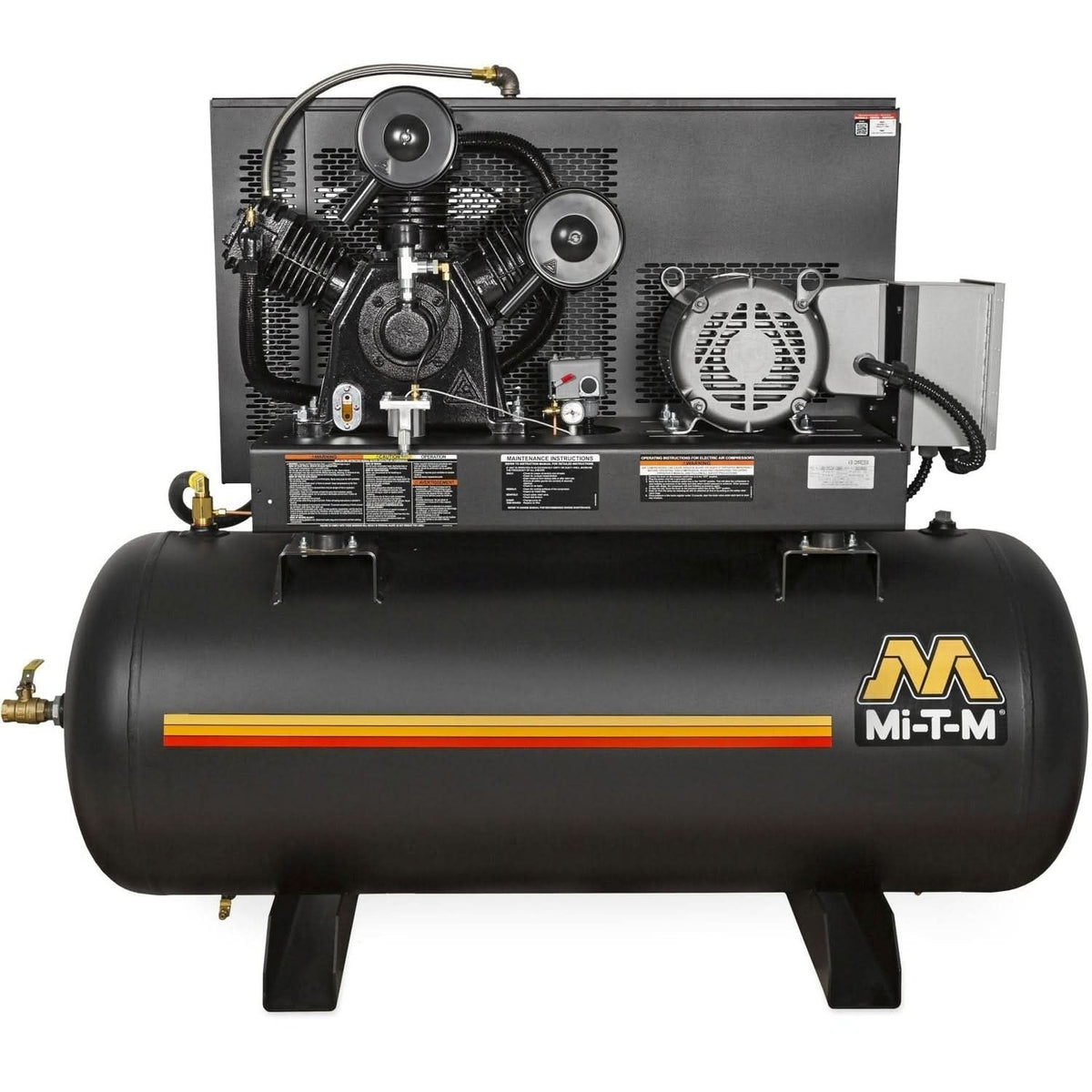

Mi-T-M ADS-23110-120HM 120-Gallon Two Stage Electric Air Compressor

Powerful and efficient, they are designed to maximize production.

ADS M Series - 10.0 HP Simplex Horizontal

The M Series air compressors are a great solution for the most demanding industrial applications. Available in many motor configurations and with either vertical or horizontal tank options.

Compressor Pump:Cast iron compressor pump · Splash lubricated · Stainless steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor:Industrial low RPM motor · Magnetic start for thermal overload protection

Frame:Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components:ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve

Specifications:

• 34.2 CFM @ 175 PSI
• HP/Motor: 10.0/230V, 1, 39.0A
• Bolt Down Dimensions (LxW): 34.5x23.5
• Warranty: 2 Year Pump Exchange
• Warranty: 1 Year Electric Motor
• Certification: ASME - U

Includes:

• Magnetic Starter
• Hour Meter
• Low Oil Shut Down
• Aftercooler
• Rubber Isolators
