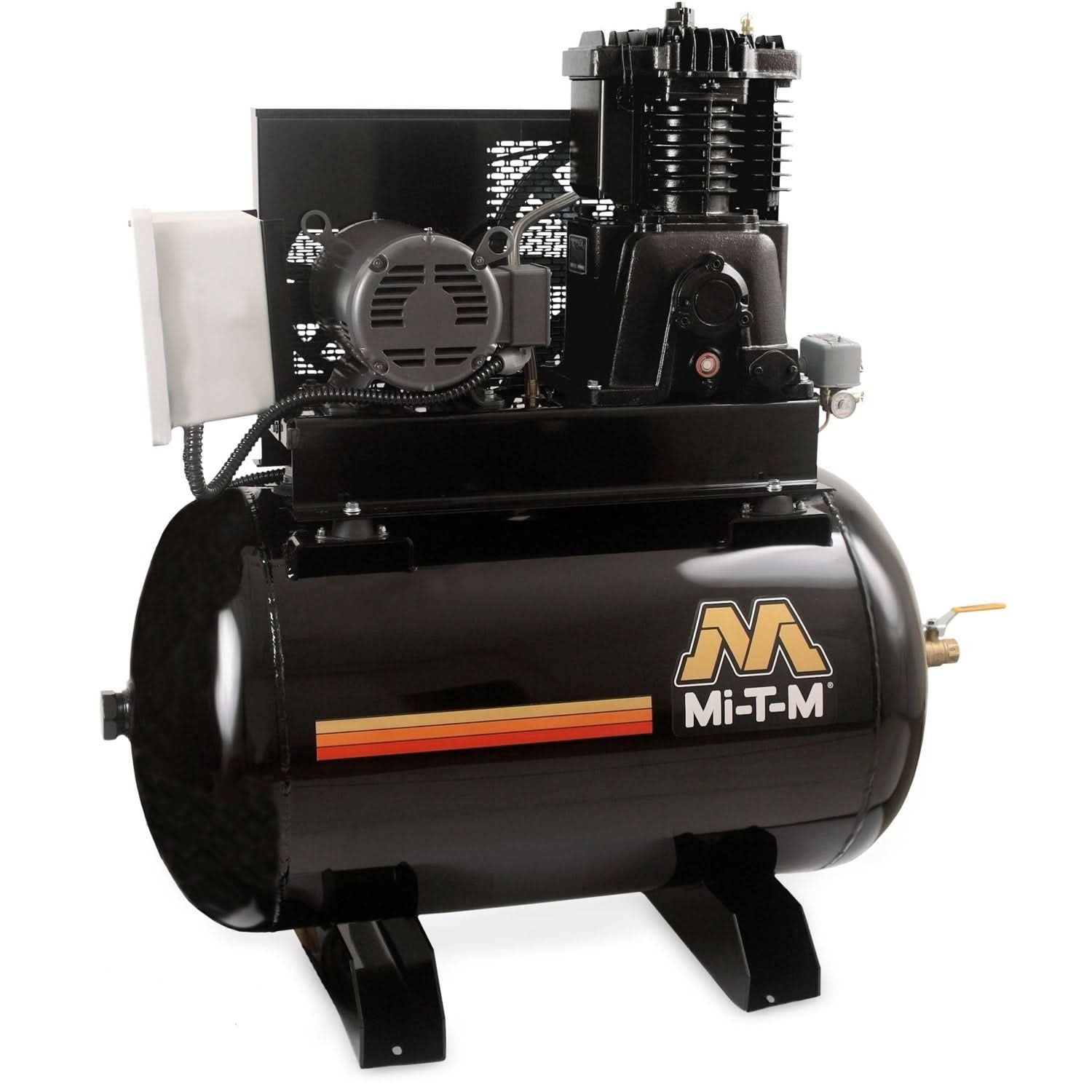

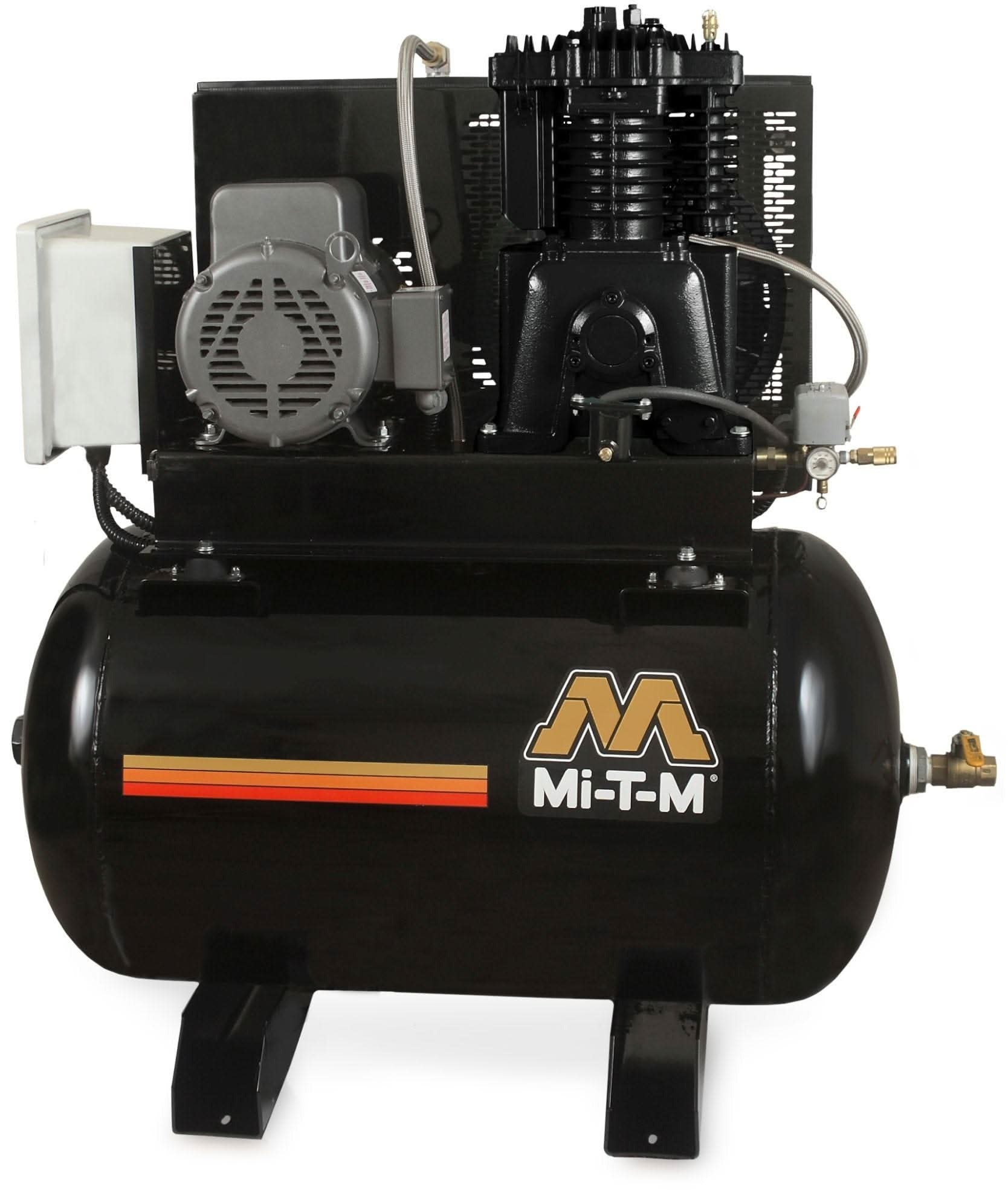

Mi-T-M ACS-23175-80H 80-Gallon Two Stage Electric Air Compressor

The ACS 80H horizontal 80-gallon air compressors can be installed in service shops where compressed air is a required utility.

ACS Series - 7.5 HP Simplex Horizontal

The horizontal 80-gallon air compressors can be installed out of the way in workshops and service bays where compressed air is a required utility.

Compressor Pump:Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor:Industrial low RPM motor · Magnetic start for thermal overload protection

Frame:Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components:ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Tank shut-off valve · Intake filter/silencer

Specifications:

• 23.5 CFM @ 175 PSI
• HP/Motor: 7.5/230V, 1, 31.0A
• Bolt Down Dimensions (LxW): 20.75 x 23.5 inches
• Warranty: 2 Year Pump Exchange
• Warranty: 1 Year Electric Motor
• Certification: ASME - U
