Key Features
Overview
The Kreg KHI-PULLPROXL Cabinet Hardware Jig Pro XL is built for cabinet makers, trim carpenters, remodelers, and serious DIYers who want clean, repeatable hardware placement without measuring every door and drawer by hand. This is a cabinet hardware jig designed for installing knobs and pulls on cabinet doors and drawers. Model Number: KHI-PULLPROXL. If you are doing one vanity or an entire kitchen, this jig is made to cut setup time and reduce the kind of layout errors that ruin finished fronts.

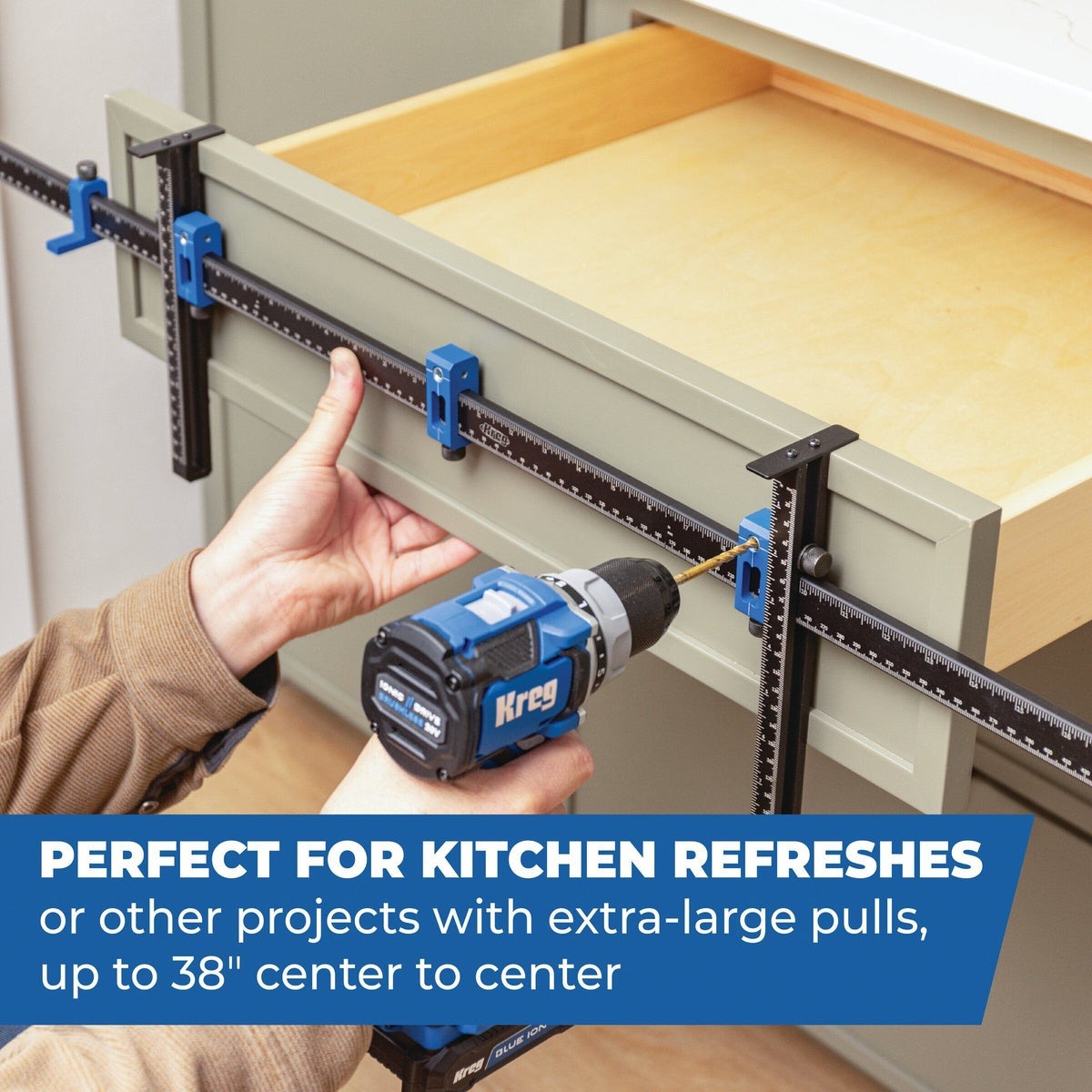

What separates this jig from a basic hardware template is capacity and repeatability. The extra-large bar handles pulls with center-to-center spacing up to 38 inches, which makes it useful for modern long pulls and wide drawer fronts where smaller jigs come up short. Built-in repeatable stops help you set the location once and carry that setting across matching parts, so you are not pulling a tape and marking lines over and over.

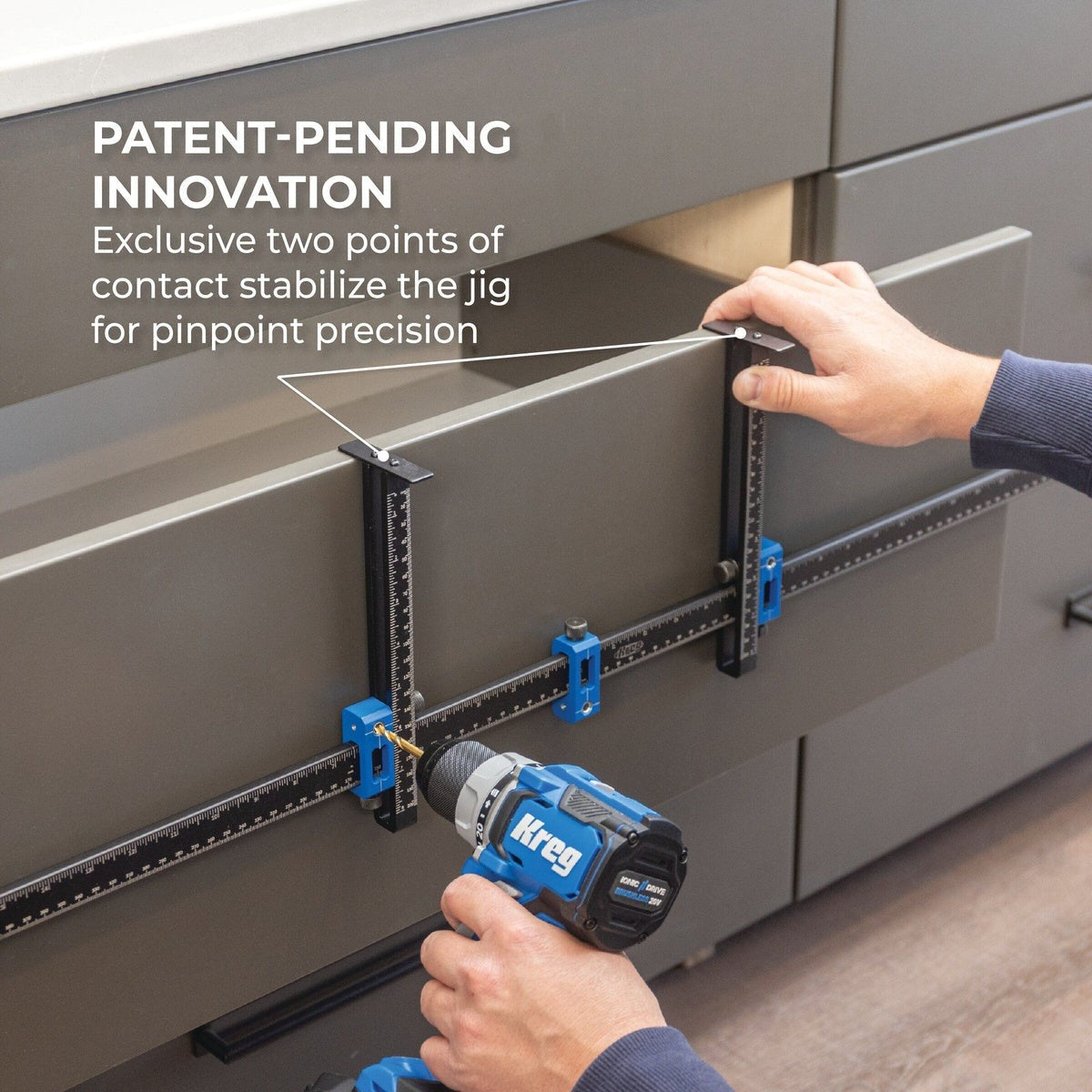

Kreg also built this one around accuracy in real use, not just on paper. The patent-pending two-point contact design helps stabilize the jig against the workpiece so it stays aligned while you position and drill. That matters most on finished cabinet faces where even a small shift shows up fast. The movable drill guides can be positioned anywhere along the bar, which gives you the flexibility to set up for single knobs, standard pulls, and even three-hole handles without switching to another jig.

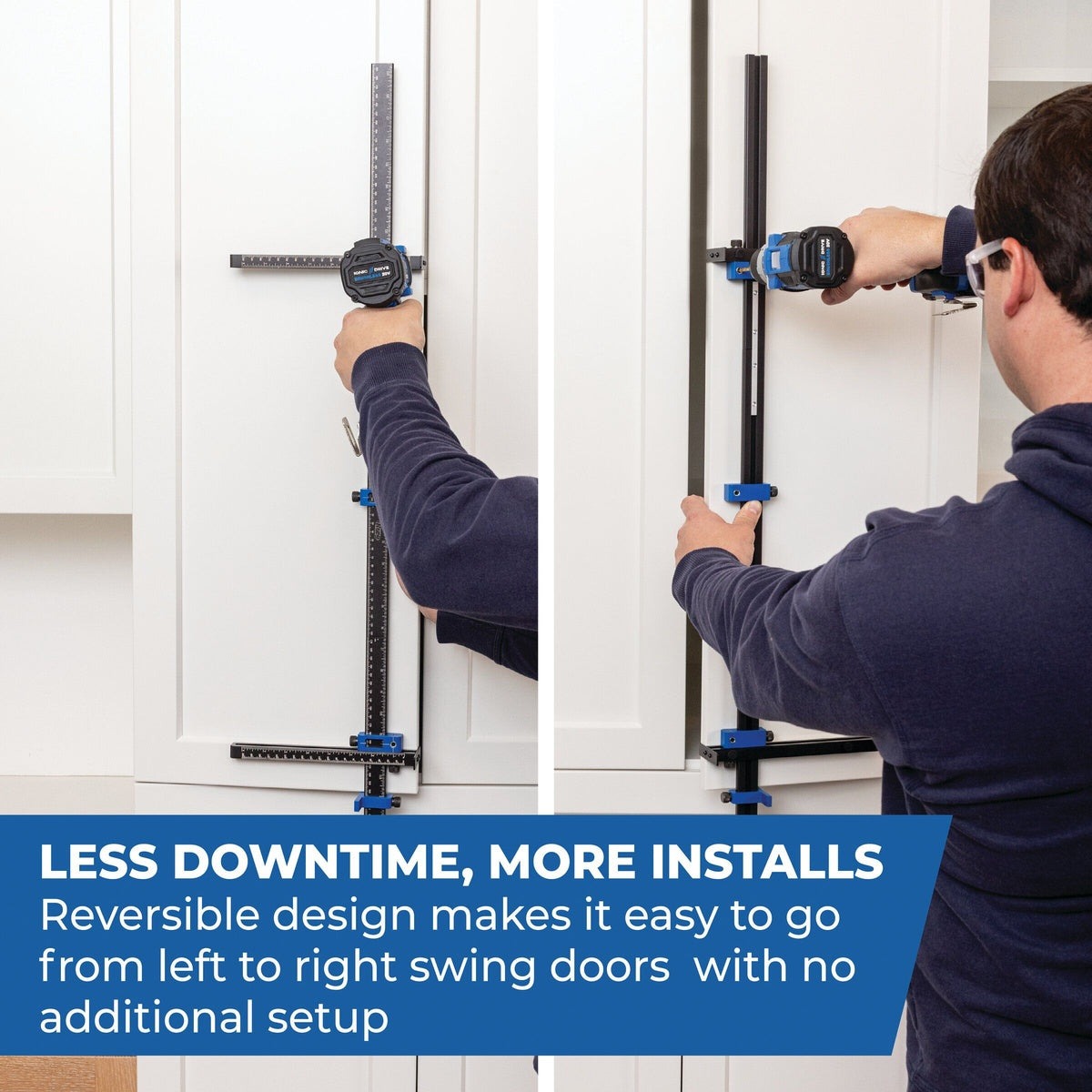

The modular design is another practical upgrade. You can use the full-length setup when you need reach for oversized hardware, then switch to a more compact configuration when you are working on smaller pulls or knobs. That makes the jig easier to manage on tight workpieces and smaller cabinet parts. It is also reversible for right- and left-swing doors, so you can move between door orientations without remeasuring or rebuilding your setup.

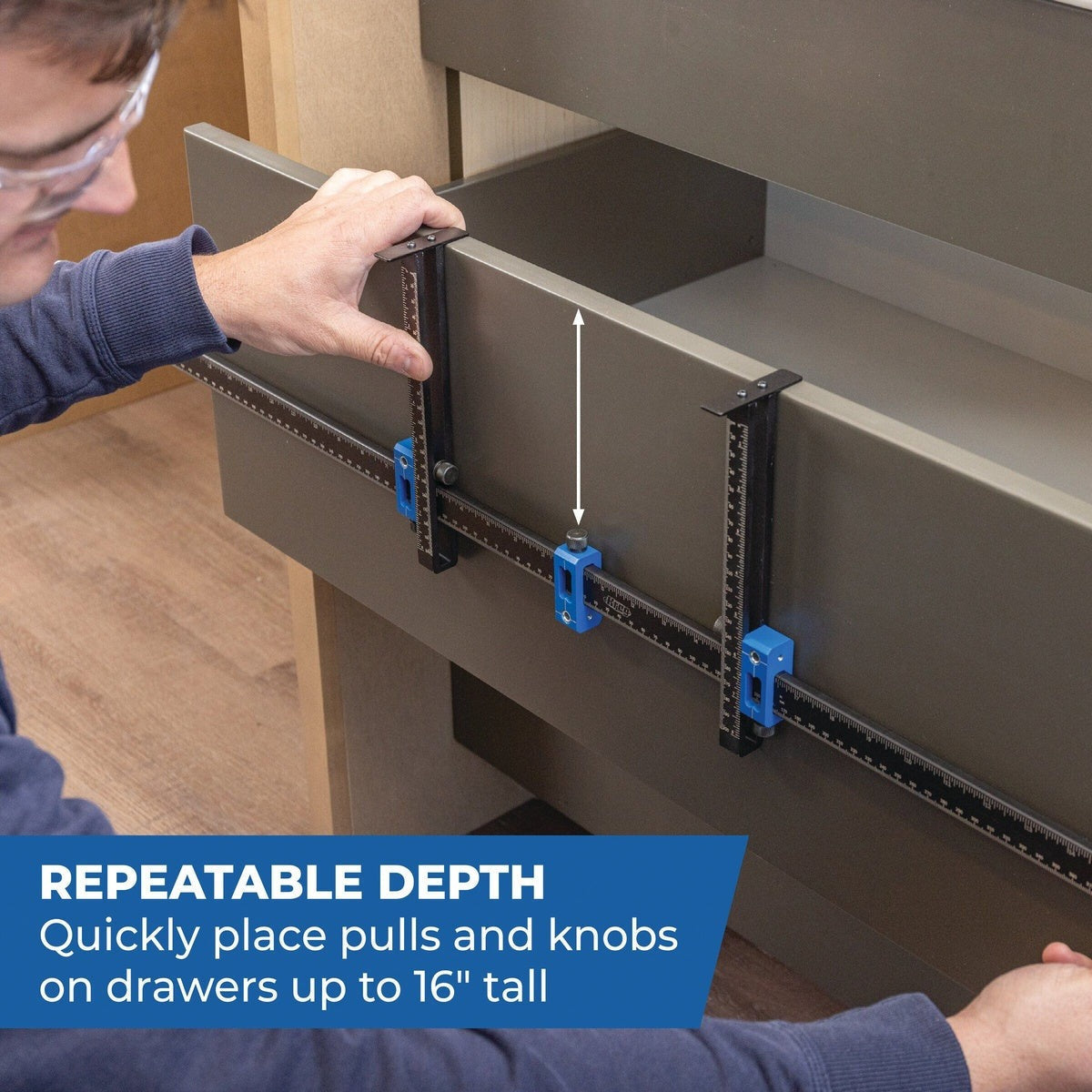

For drawer work, repeatable depth stops help center pulls and knobs on drawers up to 16 inches tall. On the job, that means faster setup on stacks of slab fronts or shaker drawers where consistent vertical placement matters just as much as horizontal spacing. The hardened steel drill guides are designed to hold their position and stand up to repeated drilling, which is exactly what you want if this jig is going to live in your cabinet install kit instead of being used once and shelved.
At 2.5 pounds, the jig is light enough to carry from bench to install site without feeling flimsy. The overall design is aimed at people who care about clean finished work and do not want guesswork in the last stage of a cabinet job. If you install cabinet pulls often, build kitchens or built-ins, or just want one jig that handles everything from a small knob to a long statement pull, this is the kind of tool that earns its place quickly.
Set Up Once, Drill a Whole Run

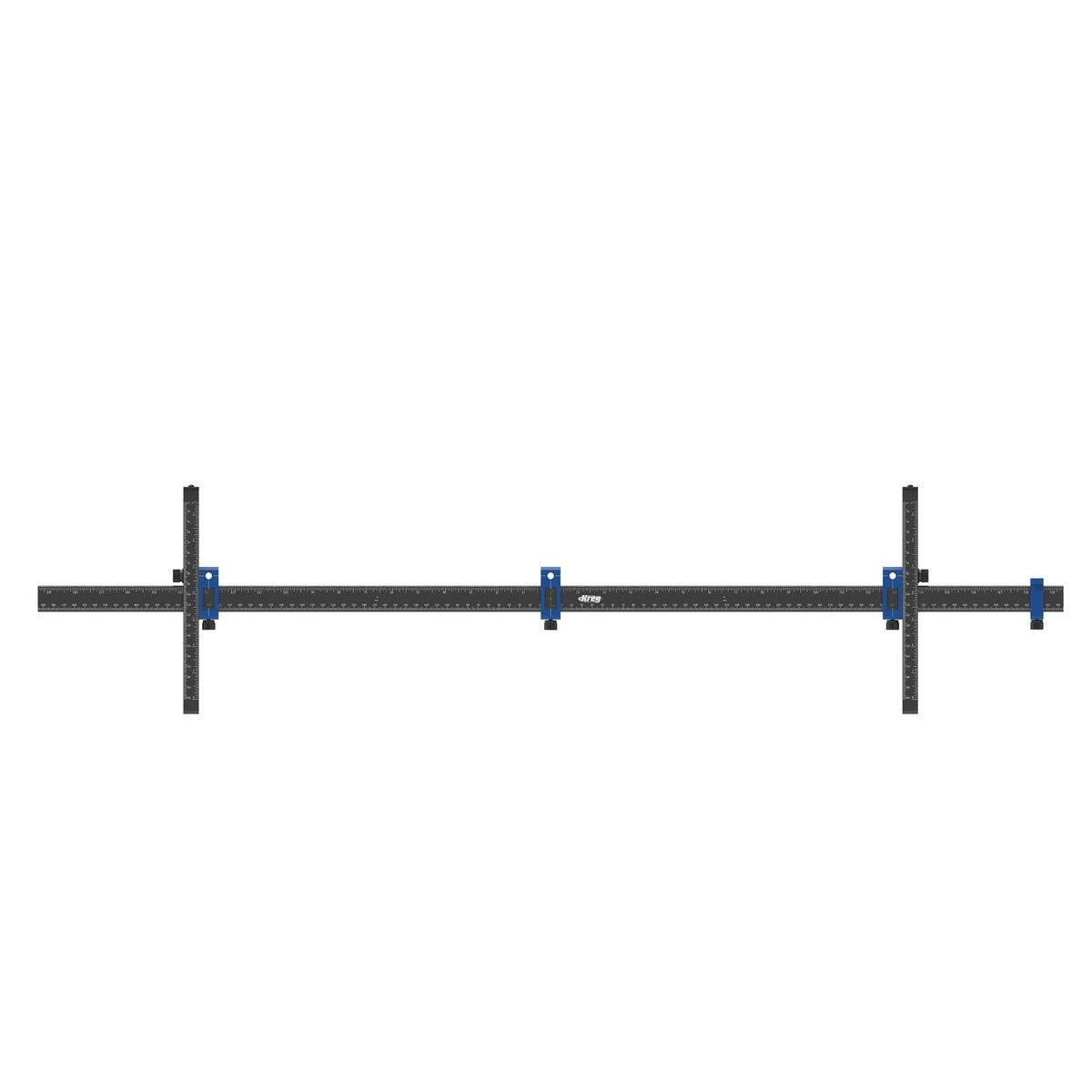

This is where the Pro XL earns its name. The long bar gives you the reach to lay out oversized pulls accurately without making story sticks or custom templates for every project.
- Supports pull spacing up to 38 inches center-to-center

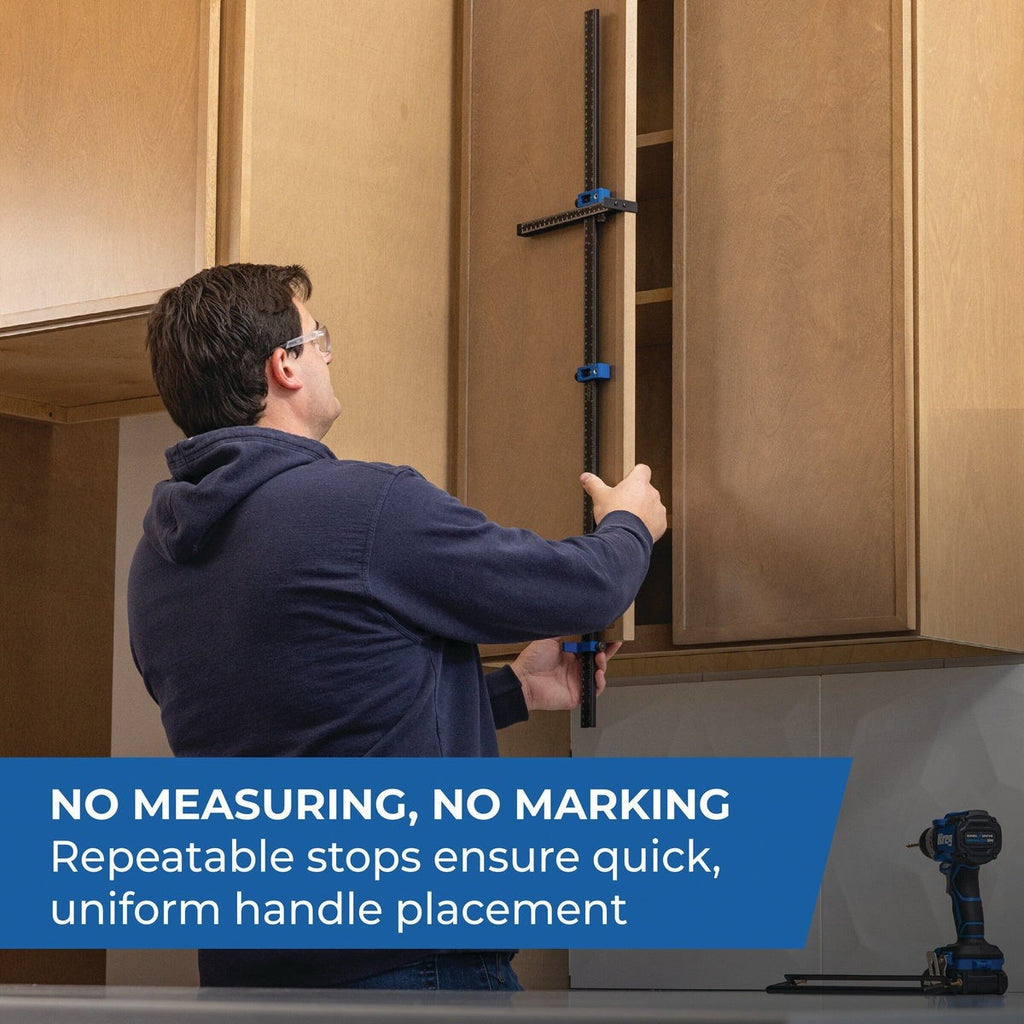

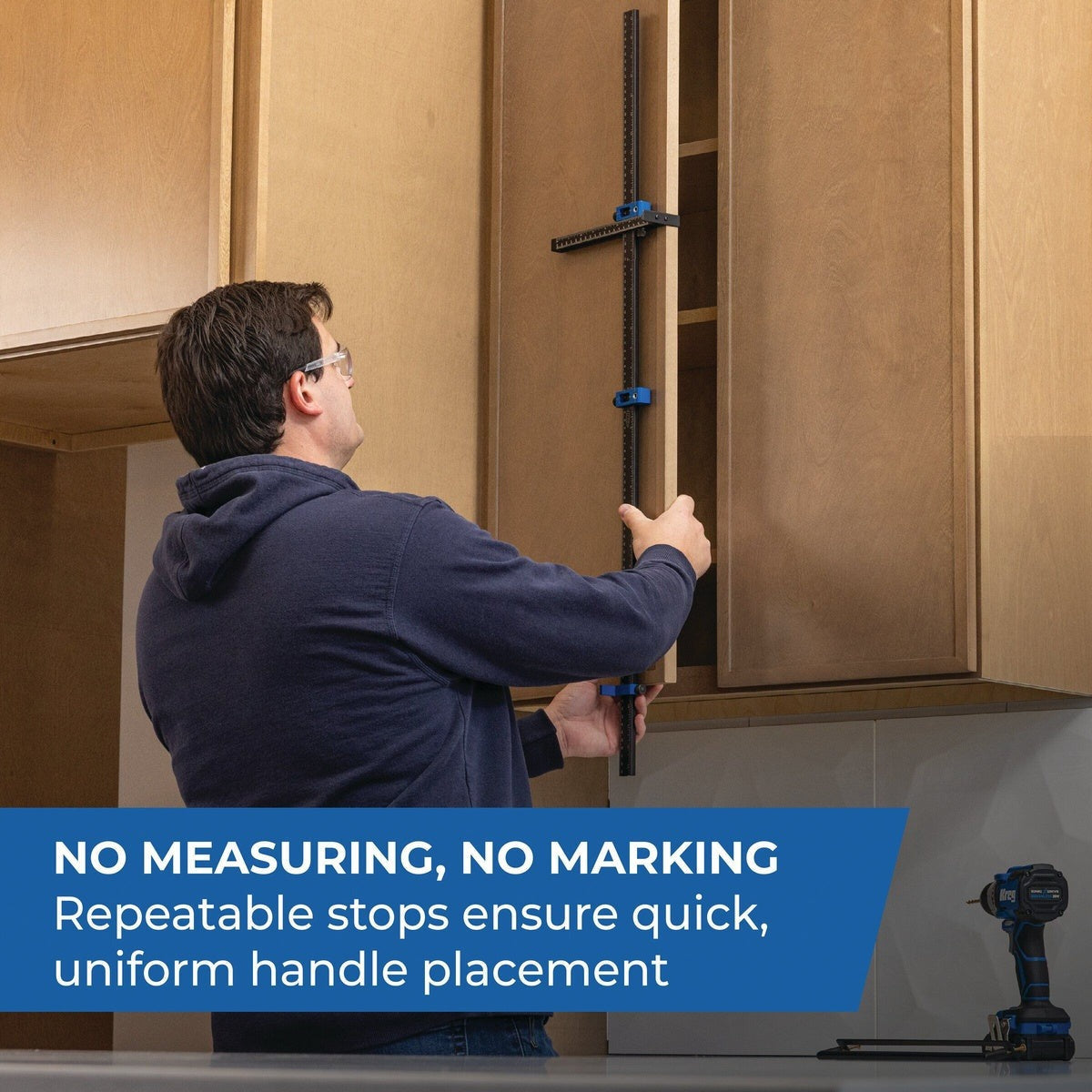

- Repeatable stops help keep hardware placement uniform across multiple doors and drawers
- Useful for kitchens, built-ins, vanities, and furniture with wide drawer fronts
Adapt to Knobs, Pulls, and Multi-Hole Hardware

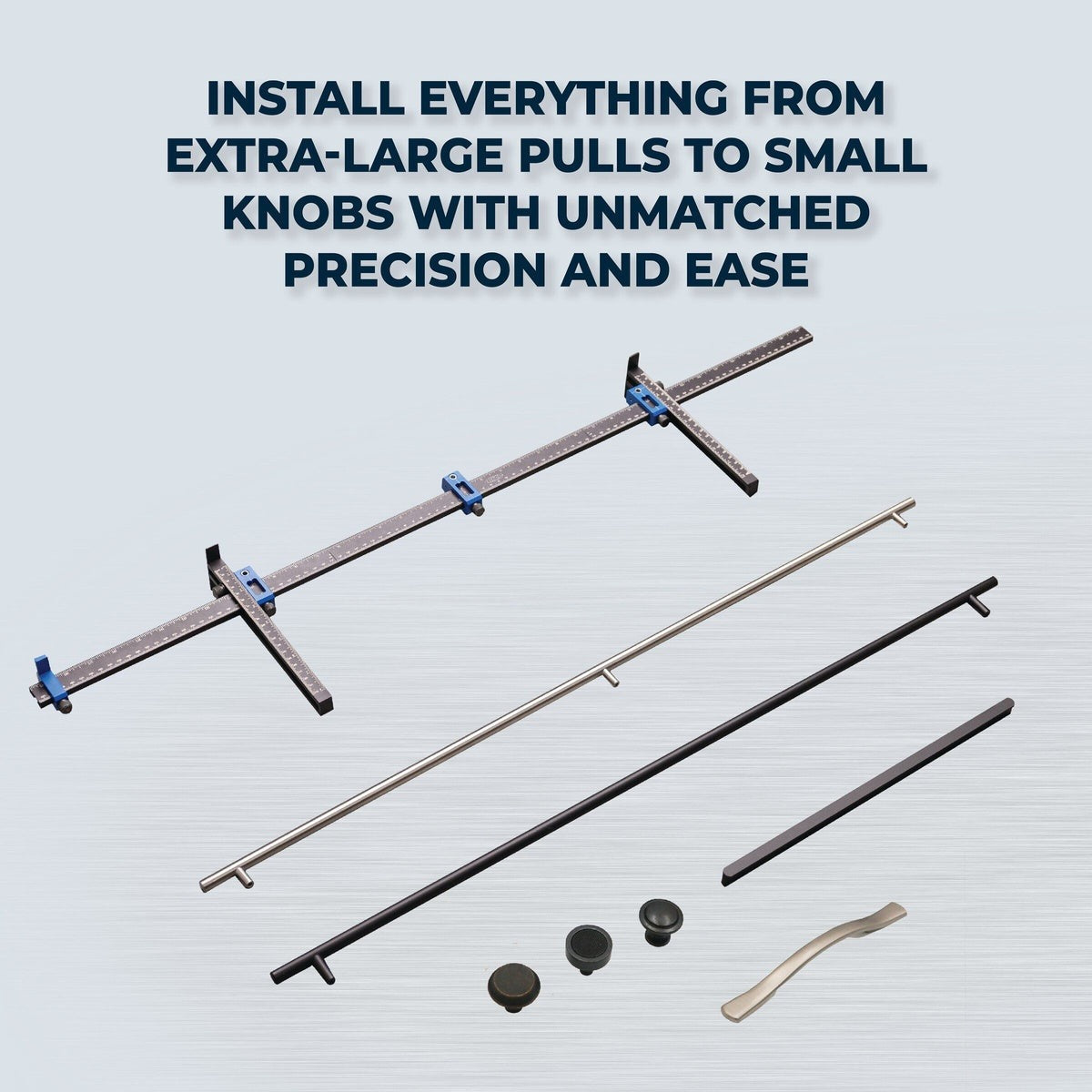

The movable guide layout gives this cabinet hardware jig a lot more range than a fixed template. You can dial in common hardware sizes, three-hole handles, or single knobs without fighting the tool.

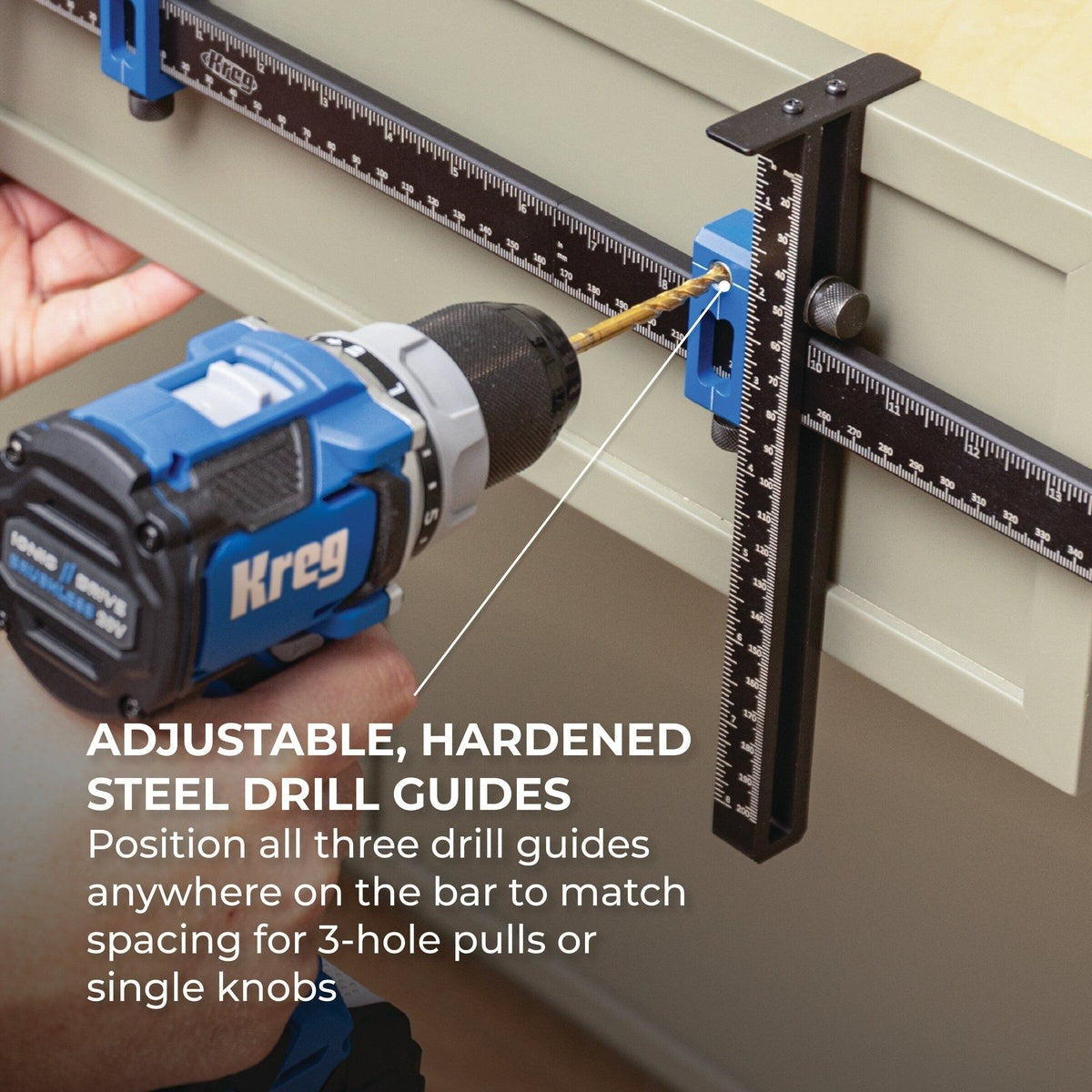

- Three movable drill guides can be positioned anywhere along the bar
- Modular setup works in full-length or compact mode
- Reversible design helps when switching between right- and left-swing doors
Key Specifications
| Maximum Pull Spacing | 38 in center-to-center |
|---|---|
| Drawer Centering Capacity | Up to 16 in tall drawers |
| Drill Guide Count | 3 movable drill guides |
| Drill Guide Material | Hardened steel |
| Design | Modular and reversible |
| Weight | 2.5 lbs |
| Overall Dimensions | 18.25 x 5.5 x 2.5 in |
| Power Requirement | No batteries required |
Built For
Pro Tip
When you are installing hardware across a full kitchen, lock in your first good setting and leave the stops alone for each matching door or drawer group. That is the fastest way to keep reveals and handle heights consistent from one bank of cabinets to the next.
Warranty & Support
Tool Nut's Take
Kreg KHI-PULLPROXL Cabinet Hardware Jig Pro XL is the right call for clean, repeatable hardware installs
This is the kind of jig that makes sense the minute you stop wanting to measure every hole twice.
- Who it's for: Cabinet installers, shop woodworkers, remodelers, and DIYers doing more than a one-off handle swap.
- Why it stands out: The 38-inch pull capacity, dual-contact stability, and movable drill guides give it a lot more range than basic hardware templates.
- Worth knowing: This tool shines most when you have multiple doors and drawers to drill. If you only install one knob every few years, it is more jig than you need. If you do cabinet hardware regularly, it will save time and prevent expensive mistakes.
Common Questions
- What is the maximum pull spacing this jig can handle? It supports pulls with center-to-center spacing up to 38 inches.
- Can it be used for both knobs and long pulls? Yes. The modular design lets you work in a compact setup for smaller hardware and a full-length setup for oversized pulls.
- Can it handle three-hole handles? Yes. The movable drill guides can be positioned anywhere along the bar to match three-hole handle spacing.
- Does it work on drawers as well as doors? Yes. It includes repeatable depth stops for centering pulls and knobs on drawers up to 16 inches tall, and it is reversible for right- and left-swing doors.
